GX620 QAP2 (GCAD) - Honda Engine, Made in Japan (SN: GCAD-1000001 - GCAD-1999999) FUEL TANK (2) Parts Diagram

Engine, Made in Japan

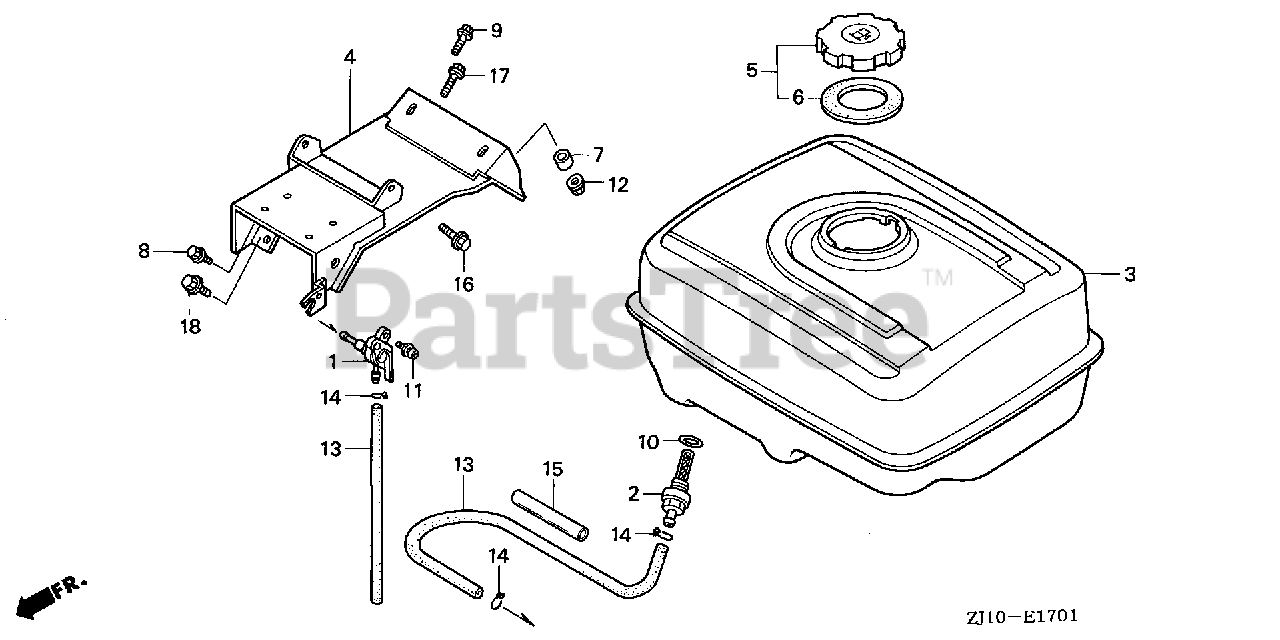

FUEL TANK (2) Parts Diagram

  • Title

1

Honda 16950-YA0-802

PETCOCK ASSY.

$39.99

$

Usually ships in 3-6 days

0

2

Honda 16955-ZE1-010

SEE PART DETAILS - PRI; JOINT, FUEL TANK

$8.99

$

In Stock, Qty 14

0

3

Honda 17510-ZE3-030ZB

SEE PART DETAILS - PRI; TANK, FUEL *NH1* (BLACK)

$150.99

$

Usually ships in 3-6 days

0

3

Honda 17510-ZE3-030ZH

TANK, FUEL *R8* (BRIGHT RED)

$150.99

$

Usually ships in 3-6 days

0

4

Honda 17560-ZJ0-U70

STAY, FUEL TANK

$303.99

$

Usually ships in 3-6 days

0

5

Honda 17620-ZH7-023

CAP, FUEL FILLER (BLACK)
(Superseded to 17620-Z0T-305)

$

$

Not available

6

Honda 17631-ZH7-003

SEE PART DETAILS - SUP; GASKET, FUEL FILLER CAP (39X58X3)
(Superseded to 17631-329-003)

$

$

Not available

6

Honda 17631-329-003

SEE PART DETAILS - PRI; GASKET, FUEL FILLER CAP (39X58X3)
(Superseded to 17631-329-013)

$

$

Not available

7

Honda 50203-MS8-000

COLLAR, FR. ENGINE HANGER (A)

$5.49

$

Usually ships in 3-6 days

0

8

Honda 90018-ZE1-000

BOLT, FLANGE (6X23) (CT200)

$2.49

$

In Stock, only 4 left!

0

9

Honda 90022-888-010

BOLT, FLANGE (6X20) (CT200)

$2.99

$

In Stock, only 1 left!

0

10

Honda 91353-671-003

O-RING (13.5X1.5) (ARAI)

$3.99

$

In Stock, Qty 12

0

10

Honda 91353-671-004

O-RING (14MM) (NOK)
(Superseded to 91353-671-003)

$3.99

$

In Stock, Qty 12

0

11

Honda 93891-05014-00

SCREW-WASHER (5X14)

$1.49

$

Usually ships in 3-6 days

0

12

Honda 94050-08000

NUT, FLANGE (8MM)

$1.49

$

In Stock, Qty 20+

0

13

Honda 95001-45003-60M

BULK HOSE, FUEL (4.5X3000) (95001-450(95001-45001-60M)

$54.99

$

In Stock, Qty 7

0

14

Honda 95002-02080

CLIP, TUBE (B8)

$2.49

$

In Stock, Qty 20+

0

15

Honda 95003-25003-10M

BULK HOSE, VINYL (9X11X3000) (9X11X180)

$21.99

$

Usually ships in 3-6 days

0

16

Honda 95701-08016-00

BOLT, FLANGE (8X16)

$2.49

$

In Stock, Qty 20+

0

17

Honda 95701-08025-00

BOLT, FLANGE (8X25)

$2.49

$

In Stock, Qty 5

0

18

Honda 95701-08030-00

BOLT, FLANGE (8X30)

$1.49

$

Usually ships in 3-6 days

0
