GX620 R1 QXW2 (GCARK) - Honda Engine, Made in Japan (SN: GCARK-1000001 - GCARK-9999999) FUEL TANK Parts Diagram

Engine, Made in Japan

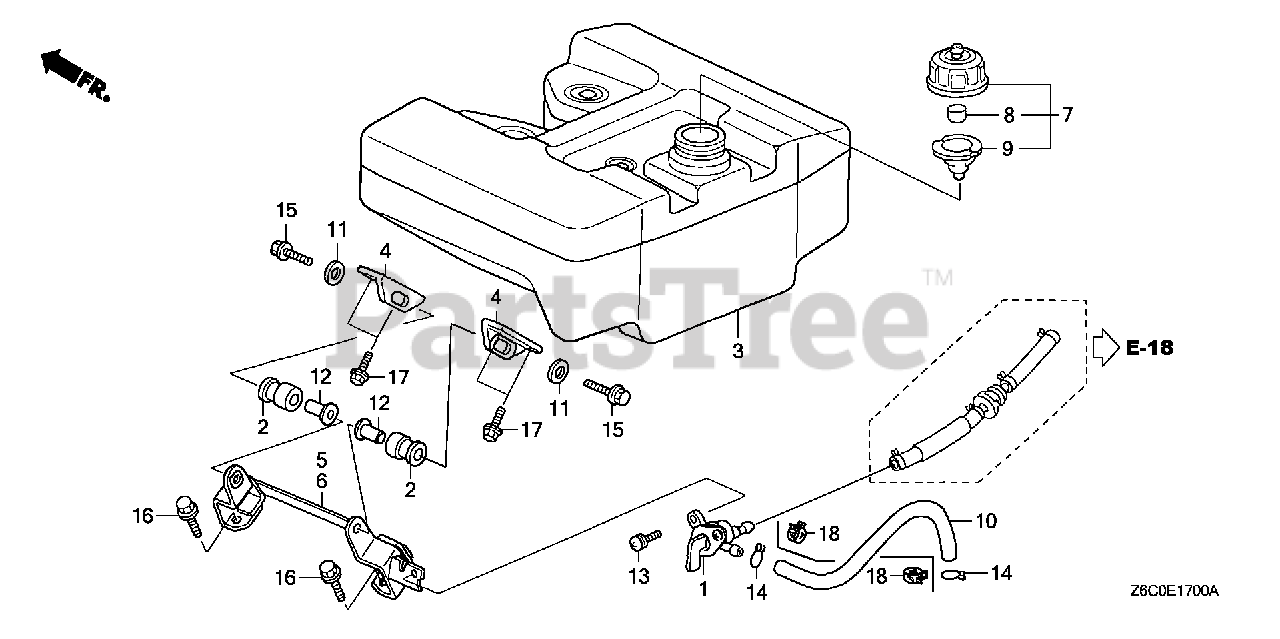

FUEL TANK Parts Diagram

  • Title

1

Honda 16950-YA0-802

PETCOCK ASSY.

$37.99

$

Usually ships in 3-6 days

0

2

Honda 17508-GBF-830

RUBBER, TANK MOUNTING

$7.99

$

Usually ships in 3-6 days

0

3

Honda 17510-ZJ1-840

TANK COMP., FUEL
(Superseded to 17510-ZJ1-841)

$624.99

$

Usually ships in 3-6 days

0

3

Honda 17510-ZJ1-841

TANK, FUEL

$624.99

$

Usually ships in 3-6 days

0

4

Honda 17544-ZJ1-840

BRACKET, FUEL TANK

$36.99

$

Usually ships in 3-6 days

0

5

Honda 17561-ZJ1-840

STAY, R. FUEL TANK

$72.99

$

Usually ships in 3-6 days

0

6

Honda 17566-ZJ1-840

STAY, L. FUEL TANK

$77.99

$

Usually ships in 3-6 days

0

7

Honda 17620-747-030

SEE PART DETAILS - PRI; CAP ASSY., FUEL TANK

$12.99

$

In Stock, only 1 left!

0

8

Honda 17622-888-010

SEE PART DETAILS - PRI; SPONGE, FUEL CAP BREATHER (Honda Code 0810341).

$1.99

$

In Stock, Qty 5

0

9

Honda 17624-747-030

SEE PART DETAILS - PRI; GASKET, FUEL CAP

$6.99

$

Usually ships in 3-6 days

0

10

Honda 17701-Z6D-842

TUBE A, FUEL (FKM)

$18.99

$

Usually ships in 3-6 days

0

11

Honda 90404-GE2-760

WASHER, PLAIN (6MM)

$2.99

$

Usually ships in 3-6 days

0

12

Honda 91501-ZJ1-840

COLLAR, TANK SETTING

$7.49

$

Usually ships in 3-6 days

0

13

Honda 93891-05014-00

SCREW-WASHER (5X14)

$1.49

$

Usually ships in 3-6 days

0

15

Honda 95701-06045-07

SEE PART DETAILS - PRI; BOLT, FLANGE (6X45) (Honda Code 2410967).

$2.99

$

Usually ships in 3-6 days

0

16

Honda 95701-08020-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X20) Use up to Engine SN 1609606.

$2.49

$

In Stock, Qty 6

0

17

Honda 96001-06016-00

BOLT, FLANGE (6X16)

$1.49

$

In Stock, Qty 5

0

18

Honda 95002-40800-08

SEE PART DETAILS - PRI; CLIP, TUBE (D8) (Honda Code 0660811).

$2.99

$

In Stock, Qty 17

0
