GX620 U1 SAF1 (GCARK) - Honda Engine, Made in Japan (SN: GCARK-1000001 - GCARK-9999999) FUEL TANK Parts Diagram

Engine, Made in Japan

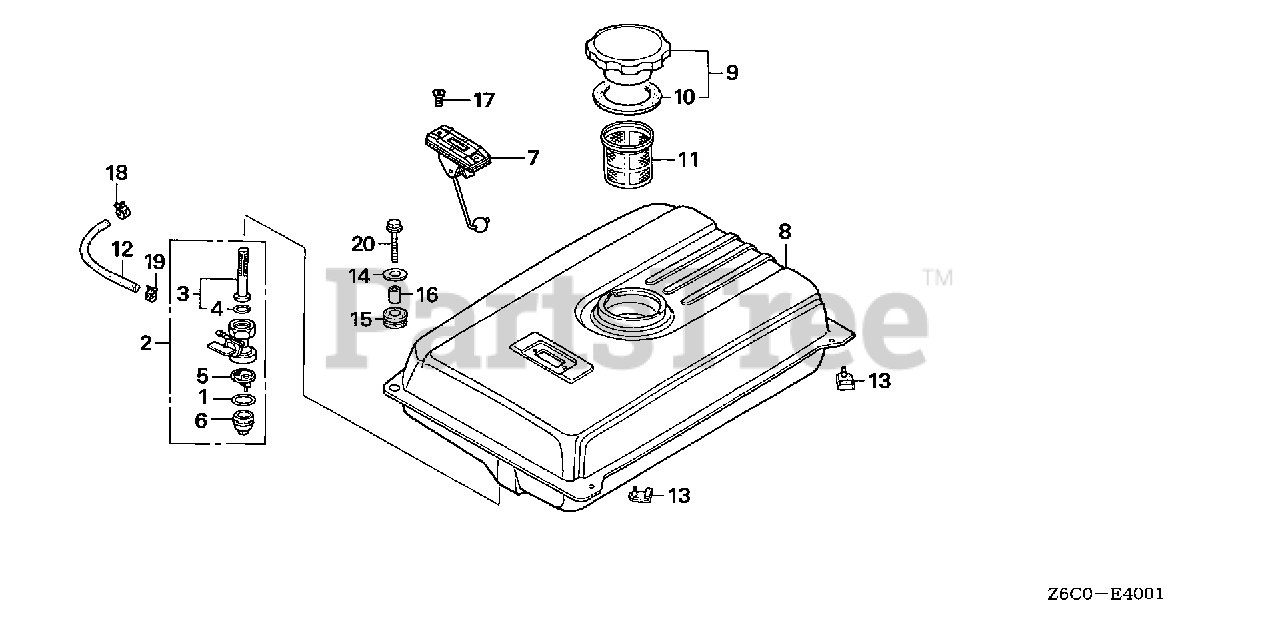

FUEL TANK Parts Diagram

  • Title

1

Honda 16173-001-004

GASKET, FUEL STRAINER CUP (Honda Code 0005652).

$8.49

$

In Stock, Qty 13

0

2

Honda 16950-ZB4-015

SEE PART DETAILS - PRI; PETCOCK ASSY.

$38.99

$

In Stock, only 2 left!

0

3

Honda 16952-KJ9-752

SEE PART DETAILS - PRI; SCREEN SET, FUEL STRAINER

$49.99

$

In Stock, only 2 left!

0

4

Honda 16958-397-771

O-RING (9.0X1.3)

$8.49

$

In Stock, only 1 left!

0

5

Honda 16959-471-831

FILTER, CUP

$14.99

$

In Stock, only 2 left!

0

6

Honda 16967-GA6-671

CUP, FUEL STRAINER

$35.99

$

In Stock, only 2 left!

0

7

Honda 17505-ZB2-013

SEE PART DETAILS - PRI; METER ASSY., FUEL

$30.99

$

In Stock, only 3 left!

0

8

Honda 17510-ZB4-000ZG

TANK, FUEL *T73* (EXEN GRAY)

$369.99

$

Usually ships in 3-6 days

0

9

Honda 17620-899-013

SEE PART DETAILS - PRI; CAP, FUEL FILLER
(Superseded to 17620-899-023)

$47.99

$

In Stock, only 2 left!

0

10

Honda 17631-899-000

SEE PART DETAILS - PRI; GASKET, FUEL FILLER CAP
(Superseded to 17631-899-010)

$9.49

$

In Stock, only 1 left!

0

11

Honda 17670-899-000

FILTER, FUEL

$23.99

$

In Stock, only 2 left!

0

12

Honda 17701-ZJ1-S00

TUBE, FUEL (EXEN)

Note: Use up to Engine SN 1018931.

$

$

Not available

12

Honda 17701-Z6D-S02

HOSE, FUEL (FKM)(EXEN)

Note: Use from Engine SN 1018932 to 1089491.

$58.99

$

Usually ships in 3-6 days

0

12

Honda 17701-Z6D-S02

HOSE, FUEL (FKM)(EXEN)

Note: Use from Engine SN 1089492.

$58.99

$

Usually ships in 3-6 days

0

13

Honda 50319-ZB2-000

RUBBER, TANK MOUNTING

$5.99

$

Usually ships in 3-6 days

0

14

Honda 90503-898-000

WASHER, TANK CUSHION

$3.49

$

Usually ships in 3-6 days

0

15

Honda 90851-898-000

CUSHION, TANK RUBBER (Honda Code 1106806).

$6.49

$

Usually ships in 3-6 days

0

16

Honda 91551-898-000

COLLAR, TANK CUSHION

$6.49

$

Usually ships in 3-6 days

0

17

Honda 93600-05010-0A

SEE PART DETAILS - PRI; SCREW, FLAT (5X10) (Honda Code 0181529).

$1.49

$

In Stock, Qty 7

0

18

Honda 95002-40850-08

CLIP, TUBE (D8.5) (Honda Code 0665240).

$3.99

$

In Stock, only 1 left!

0

19

Honda 95002-41050-08

SEE PART DETAILS - PRI; CLIP, TUBE (10.5MM)

$3.99

$

In Stock, Qty 6

0

20

Honda 95701-06035-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X35) (Honda Code 2105864).

$2.99

$

In Stock, only 2 left!

0
