GX620 VXE2 (GCAD) - Honda Engine, Made in Japan (SN: GCAD-1000001 - GCAD-1999999) CONTROL BOX Parts Diagram

Engine, Made in Japan

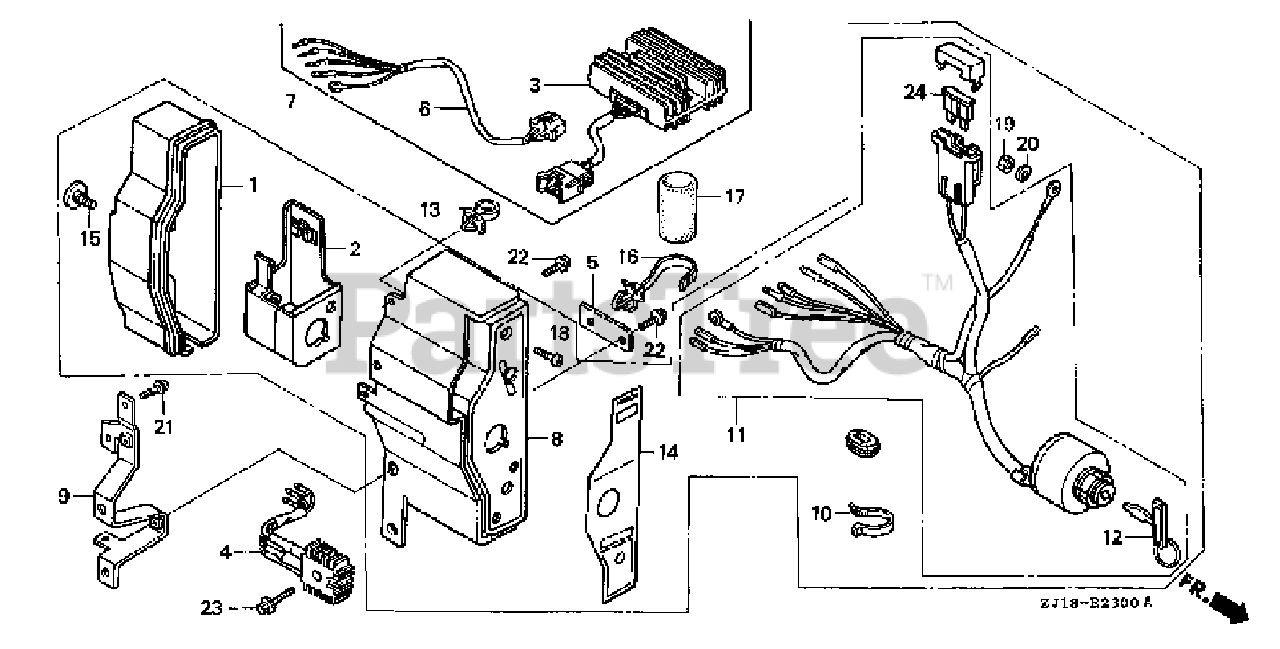

CONTROL BOX Parts Diagram

  • Title

1

Honda 31612-ZE2-003

CASE, CONTROL

Note: (Honda Code 2095875).

$24.99

$

Usually ships in 3-6 days

0

2

Honda 31614-ZE2-003

BRACKET, CASE MOUNTING

Note: (Honda Code 2095883).

$20.99

$

Usually ships in 3-6 days

0

4

Honda 31710-ZJ1-811

RECTIFIER ASSY.
(Superseded to 31710-ZJ1-812)

Note: (Honda Code 4210258).

$58.99

$

In Stock, only 2 left!

0

5

Honda 32103-759-000

BRACKET, WIRE HARNESS CLIP

Note: (Honda Code 3508561).

$4.49

$

Usually ships in 3-6 days

0

7

Honda 32340-ZJ1-812

BOX ASSY., CONTROL

Note: (Honda Code 4230538).

$

$

Not available

8

Honda 32345-ZJ1-811

PANEL, CONTROL

Note: (Honda Code 4210282).

$

$

Currently unavailable

9

Honda 32349-ZJ1-810

STAY, CONTROL BOX

Note: (Honda Code 4210290).

$63.99

$

Usually ships in 3-6 days

0

10

Honda 32902-892-003

BAND

Note: (Honda Code 0947457).

$5.49

$

In Stock, Qty 9

0

11

Honda 35100-ZJ1-812

SWITCH ASSY., COMBINATION

Note: (Honda Code 4230520).

$

$

Not available

12

Honda 35111-880-003

KEY
(Superseded to 35111-880-013)

Note: (Honda Code 0485706).

$13.99

$

In Stock, only 2 left!

0

13

Honda 36103-ZE1-000

HOLDER, STOP SWITCH WIRE

Note: (Honda Code 1429141).

$2.99

$

In Stock, only 2 left!

0

14

Honda 87529-ZE2-860

MARK, CONTROL BOX (EXTERNAL-REGULATOR)

Note: (Honda Code 4212486).

$

$

Currently unavailable

15

Honda 90380-MA6-010

SCREW, SPECIAL (6X12)

Note: (Honda Code 1490648).

$4.99

$

Usually ships in 3-6 days

0

16

Honda 90676-SA8-003

BAND, WIRE HARNESS (150MM) (BLUE)

Note: (Honda Code 1352103).

$7.49

$

In Stock, only 1 left!

0

17

Honda 91408-ZJ1-810

TUBE, CORD (30MM)

Note: (Honda Code 4210498).

$11.99

$

Usually ships in 3-6 days

0

18

Honda 93500-04012-0H

SCREW, PAN (4X12)

Note: (Honda Code 0285643).

$1.49

$

In Stock, Qty 20+

0

19

Honda 94001-04390-0S

NUT, HEX. (4MM) (NOT AVAILABLE)

Note: (Honda Code 0499707).

$1.49

$

Usually ships in 3-6 days

0

20

Honda 94111-04800

WASHER, SPRING (4MM)

Note: (Honda Code 0346114).

$1.49

$

Usually ships in 3-6 days

0

21

Honda 95701-06010-00

BOLT, FLANGE (6X10)

Note: (Honda Code 2410876).

$1.99

$

In Stock, Qty 20+

0

22

Honda 95701-06012-00

BOLT, FLANGE (6X12)

Note: (Honda Code 2105799).

$2.49

$

In Stock, Qty 20+

0

23

Honda 95701-06032-00

BOLT, FLANGE (6X32)

Note: (Honda Code 2105856).

$2.99

$

In Stock, Qty 5

0

24

Honda 98200-32500

FUSE, BLADE (25A)

Note: (Honda Code 4210589).

$3.99

$

Usually ships in 3-6 days

0
