GX630 VXC (GDABK) - Honda Engine, Made in Japan (SN: GDABK-1000001 - GDABK-9999999) CRANKCASE COVER Parts Diagram

Engine, Made in Japan

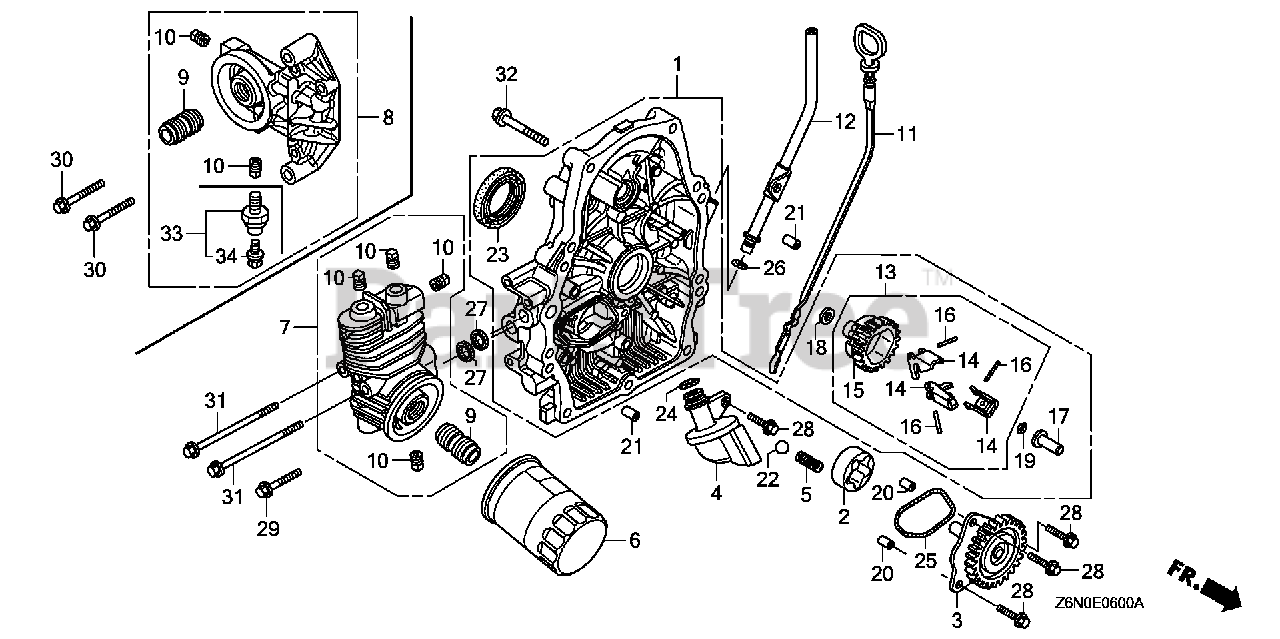

CRANKCASE COVER Parts Diagram

  • Title

1

Honda 11300-Z6L-000

COVER ASSY., CRANKCASE
(Superseded to 11300-Z6L-010)

Note: Use up to Engine SN 1000204.

$641.99

$

Usually ships in 3-6 days

0

1

Honda 11300-Z6L-010

COVER ASSY., CRANKCASE

Note: Use from Engine SN 1000205.

$641.99

$

Usually ships in 3-6 days

0

2

Honda 15133-Z6L-000

ROTOR, OIL PUMP (OUTER)

$25.99

$

Usually ships in 3-6 days

0

3

Honda 15140-Z6L-010

GEAR, OIL PUMP

$104.99

$

In Stock, only 1 left!

0

4

Honda 15220-Z6L-000

STRAINER, OIL

$61.99

$

Usually ships in 3-6 days

0

5

Honda 15232-Z6L-000

SPRING, RELIEF VALVE

$2.49

$

Usually ships in 3-6 days

0

6

Honda 15400-PLM-A01PE

SEE PART DETAILS - PRI; FILTER, OIL (FILTECH TOYO ROKI) (SOLD INDIVIDUALLY)
(Superseded to 15400-PLM-A02PE)

$14.99

$

In Stock, Qty 20+

0

8

Honda 15410-Z6L-800

BASE, OIL FILTER

Note: Use up to Engine SN 1000098.

$180.99

$

Usually ships in 3-6 days

0

8

Honda 15410-Z6L-820

BASE, OIL FILTER

Note: Use from Engine SN 1000099.

$240.99

$

Usually ships in 3-6 days

0

9

Honda 15423-Z6L-000

HOLDER, OIL FILTER

$5.49

$

Usually ships in 3-6 days

0

10

Honda 15424-Z6L-000

BOLT, SEALING

Note: Use up to Engine SN 1000098.

$6.99

$

Usually ships in 3-6 days

0

10

Honda 15424-Z6L-000

BOLT, SEALING

Note: Use from Engine SN 1000099.

$6.99

$

Usually ships in 3-6 days

0

11

Honda 15655-Z6L-000

DIPSTICK, OIL

$17.99

$

In Stock, only 2 left!

0

12

Honda 15665-Z6L-000

PIPE, OIL LEVEL

$19.99

$

Usually ships in 3-6 days

0

13

Honda 16510-Z6L-000

SEE PART DETAILS - SUP; GOVERNOR ASSY.
(Superseded to 16510-Z6L-010)

Note: Use up to Engine SN 1000204.

$26.99

$

In Stock, only 3 left!

0

13

Honda 16510-Z6L-010

SEE PART DETAILS - PRI; GOVERNOR ASSY.

Note: Use from Engine SN 1000205.

$26.99

$

In Stock, only 3 left!

0

14

Honda 16511-Z6L-310

WEIGHT, GOVERNOR

$5.99

$

Usually ships in 3-6 days

0

15

Honda 16512-Z6L-300

HOLDER, GOVERNOR WEIGHT

Note: Use up to Engine SN 1000204.

$15.99

$

Usually ships in 3-6 days

0

15

Honda 16512-Z6L-310

HOLDER, GOVERNOR WEIGHT

Note: Use from Engine SN 1000205.

$15.99

$

Usually ships in 3-6 days

0

16

Honda 16513-Z6L-000

PIN, GOVERNOR WEIGHT

$1.99

$

In Stock, only 4 left!

0

17

Honda 16531-Z6L-000

SLIDER, GOVERNOR

$10.99

$

In Stock, Qty 8

0

18

Honda 90403-Z6L-000

WASHER (6X16)

$3.99

$

Usually ships in 3-6 days

0

19

Honda 90602-ZE1-000

CLIP, GOVERNOR HOLDER

$1.99

$

In Stock, Qty 11

0

20

Honda 90707-Z6L-000

PIN, DOWEL (8X10)

$3.49

$

Usually ships in 3-6 days

0

21

Honda 90708-Z6L-000

PIN, DOWEL (8X14)

$3.49

$

Usually ships in 3-6 days

0

22

Honda 90902-Z6L-000

BALL, STEEL (#15) (15/32)

$2.49

$

Usually ships in 3-6 days

0

23

Honda 91202-Z6L-003

OIL SEAL (38X58X9)

$9.99

$

In Stock, only 2 left!

0

24

Honda 91301-Z6L-003

O-RING (14.8X2.4)

$2.99

$

In Stock, only 1 left!

0

25

Honda 91302-Z6L-003

O-RING, OIL PUMP

$4.99

$

In Stock, only 3 left!

0

26

Honda 91302-GE0-000

O-RING (8.8X1.9)

$5.99

$

In Stock, only 1 left!

0

26

Honda 91308-PH9-000

O-RING (8.8X1.9)
(Superseded to 91302-GE0-000)

$5.99

$

In Stock, only 1 left!

0

27

Honda 91308-Z6L-003

GASKET, OIL PASSAGE

$2.99

$

In Stock, Qty 6

0

28

Honda 95701-06020-00

BOLT, FLANGE (6X20)

$2.99

$

In Stock, Qty 17

0

29

Honda 95701-06028-00

BOLT, FLANGE (6X28)

$2.99

$

In Stock, only 2 left!

0

30

Honda 95701-06035-00

BOLT, FLANGE (6X35)

$2.99

$

In Stock, only 2 left!

0

32

Honda 95701-08045-00

BOLT, FLANGE (8X45)

$2.49

$

In Stock, Qty 16

0

33

Honda 37240-ZG5-004

SWITCH, OIL PRESSURE

Note: Use from Engine SN 1000099.

$49.99

$

In Stock, only 2 left!

0

34

Honda 90002-ZG5-004

SCREW-WASHER (4X8)

Note: Use from Engine SN 1000099.

$10.99

$

Usually ships in 3-6 days

0
