GX640 SD1 (GAAD) - Honda Engine, Made in Japan (SN: GAAD-1000001 - GAAD-1029999) CYLINDER HEAD COVER Parts Diagram

Engine, Made in Japan

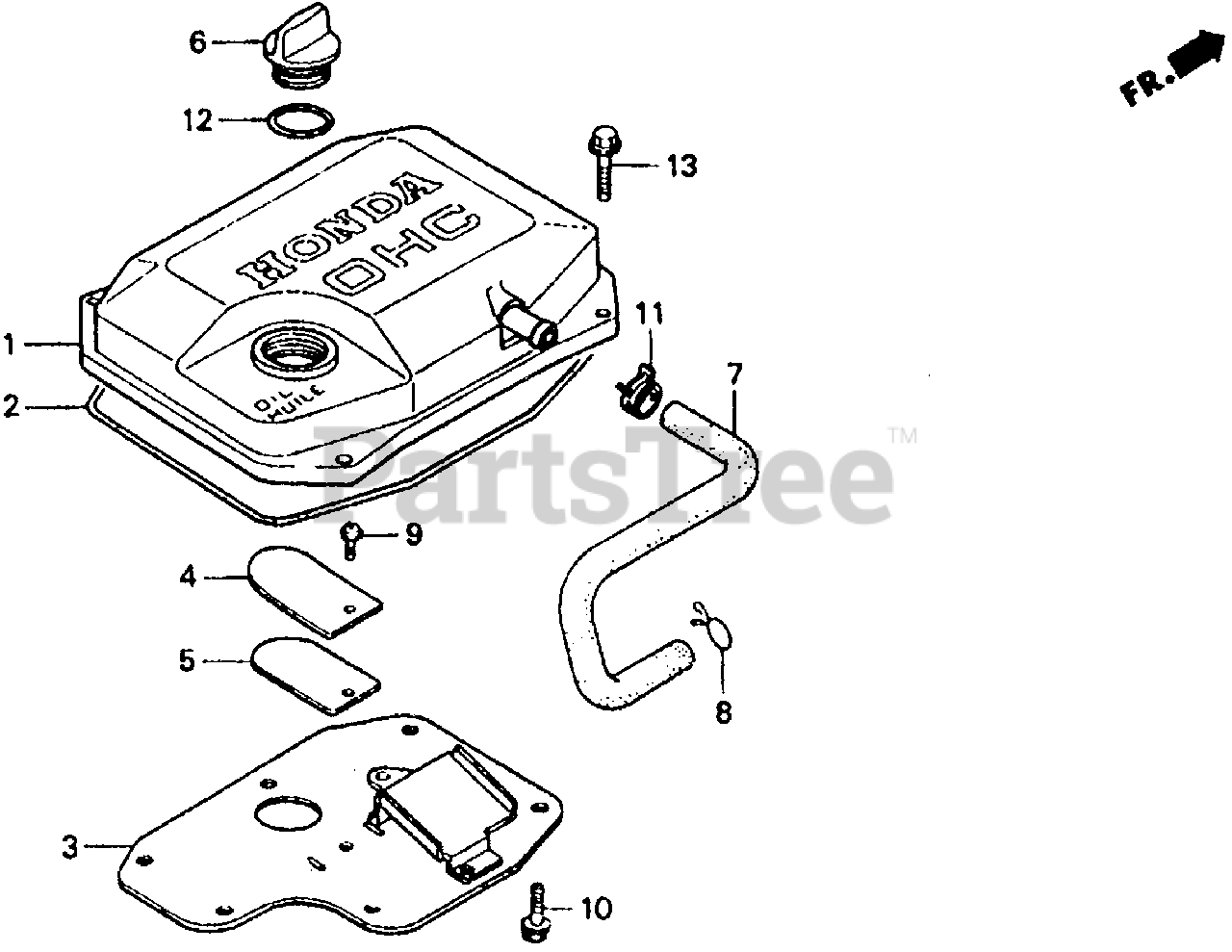

CYLINDER HEAD COVER Parts Diagram

  • Title

1

Honda 12311-ZG8-000

COVER, CYLINDER HEAD (Honda Code 3507597).
(Superseded to 12311-ZG8-010)

Note: Use up to Engine SN 1017916.

$171.99

$

Usually ships in 3-6 days

0

1

Honda 12311-ZG8-010

COVER, CYLINDER HEAD (Honda Code 7668288).

Note: Use from Engine SN 1017917.

$171.99

$

Usually ships in 3-6 days

0

2

Honda 12312-ZG8-000

GASKET, HEAD COVER (Honda Code 3505922).

$28.99

$

Usually ships in 3-6 days

0

3

Honda 12356-ZG8-000

COVER, BREATHER (Honda Code 3507613).

$26.99

$

Usually ships in 3-6 days

0

4

Honda 12374-ZG8-000

STOPPER, VALVE (Honda Code 3505930).

$7.99

$

Usually ships in 3-6 days

0

5

Honda 12377-ZG8-000

PLATE, VALVE (Honda Code 3505948).

$12.99

$

Usually ships in 3-6 days

0

6

Honda 15611-ZA0-000

CAP, OIL (GRAY) (Honda Code 7611205).
(Superseded to 15611-921-000)

Note: Use from Engine SN 1017941.

$15.99

$

Usually ships in 3-6 days

0

6

Honda 15611-921-000

SEE PART DETAILS - PRI; CAP, OIL (Honda Code 0282806).

Note: Use up to Engine SN 1017940.

$15.99

$

Usually ships in 3-6 days

0

7

Honda 15724-ZG8-000

TUBE C, BREATHER (Honda Code 3506367).

$21.99

$

Usually ships in 3-6 days

0

8

Honda 15772-551-000

CLIP, BREATHER TUBE (Honda Code 0501353).

$2.99

$

In Stock, only 2 left!

0

9

Honda 90092-657-000

SCREW-WASHER (5X8) (Honda Code 0582718).

$3.49

$

Usually ships in 3-6 days

0

10

Honda 90107-VA5-640

BOLT, FLANGE (6X10) (Honda Code 1500958).

$2.99

$

Usually ships in 3-6 days

0

11

Honda 90682-SA0-671

CLAMP, CANISTER HOSE (Honda Code 1181536).

$13.99

$

Usually ships in 3-6 days

0

12

Honda 91301-805-000

SEE PART DETAILS - PRI; O-RING (26X2.7) (Honda Code 0065185).

$5.99

$

In Stock, Qty 14

0

13

Honda 95701-06025-08

BOLT, FLANGE (6X25) (Honda Code 2259711).

$2.99

$

Usually ships in 3-6 days

0
