GX640 SD3 (GAAD) - Honda Engine, Made in Japan (SN: GAAD-1000001 - GAAD-1029999) WIRE HARNESS Parts Diagram

Engine, Made in Japan

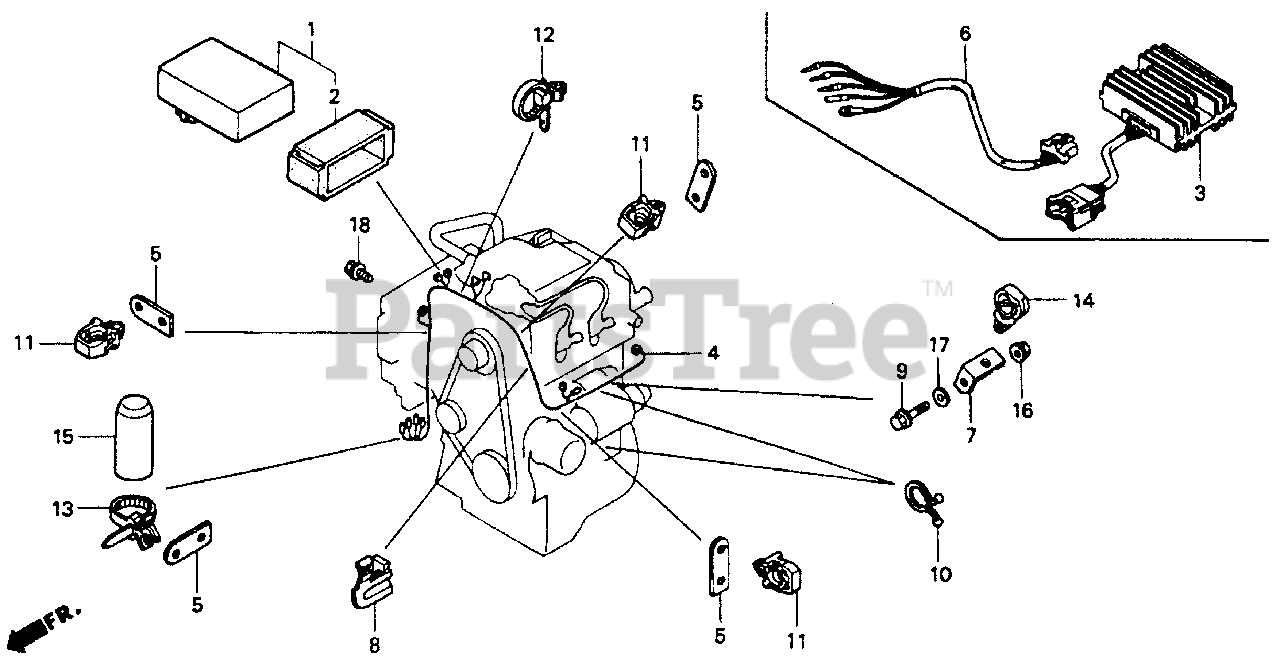

WIRE HARNESS Parts Diagram

  • Title

1

Honda 30580-758-801

MODULE, IGNITION CONTROL (CDI) (Honda Code 3508371).

$281.99

$

Usually ships in 3-6 days

0

2

Honda 30583-ZV4-003

CUSHION, IGNITION CONTROL (Honda Code 2796621). MODULE

$9.49

$

Usually ships in 3-6 days

0

3

Honda 31620-ZG5-003

SEE PART DETAILS - SUP; RECTIFIER ASSY., REGULATOR (Honda Code 4210225). (20A)
(Superseded to 31620-ZG5-033)

$184.99

$

Usually ships in 3-6 days

0

3

Honda 31620-ZG5-013

SEE PART DETAILS - PRI; RECTIFIER ASSY., REGULATOR (Honda Code 7664725). (20A)
(Superseded to 31620-ZG5-033)

$184.99

$

Usually ships in 3-6 days

0

4

Honda 32100-ZG8-810

HARNESS ASSY., ENGINE (Honda Code 4547527).

$222.99

$

Usually ships in 3-6 days

0

5

Honda 32103-ZG8-000

BRACKET, WIRE HARNESS CLIP (Honda Code 3506813).

$3.99

$

Usually ships in 3-6 days

0

6

Honda 32105-ZJ1-800

SEE PART DETAILS - PRI; SUB-WIRE HARNESS ASSY. (Honda Code 4543930).

$53.99

$

Usually ships in 3-6 days

0

7

Honda 32105-759-000

BRACKET, WIRE HARNESS CLIP (H) (Honda Code 3786597).

$3.99

$

Usually ships in 3-6 days

0

8

Honda 32753-PT1-F00

STAY, SCHRAEDER VALVE (Honda Code 3974888). CONNECTOR

$11.99

$

Usually ships in 3-6 days

0

9

Honda 90112-187-010

BOLT, FLANGE (5X25) (Honda Code 4034500).

$2.99

$

Usually ships in 3-6 days

0

10

Honda 90630-751-000

CLIP, PURSE LOCK (Honda Code 2159598).

$2.49

$

Usually ships in 3-6 days

0

11

Honda 90650-SB2-003

CLIP, WIRE HARNESS (10MM) (Honda Code 1640358).

$8.49

$

Usually ships in 3-6 days

0

12

Honda 90672-SB2-003

STRAP, CABLE (105MM) *NH1* (Honda Code 1685536). (BLACK)

$6.99

$

Usually ships in 3-6 days

0

13

Honda 90676-SA8-003

BAND, WIRE HARNESS (150MM) (Honda Code 1352103). (BLUE)

$6.49

$

Usually ships in 3-6 days

0

14

Honda 90683-SA0-003

CLIP, WIRE HARNESS (25MM) (Honda Code 1226265).

$11.99

$

Usually ships in 3-6 days

0

15

Honda 91408-890-780

TUBE, CORD (25MM) (Honda Code 0803775).

$6.49

$

Usually ships in 3-6 days

0

16

Honda 94050-05080

NUT, FLANGE (5MM) (Honda Code 0612671).

$0.99

$

In Stock, Qty 10

0

17

Honda 94103-05800

WASHER, PLAIN (5MM) (Honda Code 0795971).

$1.49

$

Usually ships in 3-6 days

0

18

Honda 95701-06012-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (Honda Code 2170793).

$2.49

$

In Stock, only 2 left!

0
