GX670 R TXA2 (GCASK) - Honda Engine, Made in Japan (SN: GCASK-1000001 - GCASK-9999999) AIR CLEANER (SNORKEL) Parts Diagram

Engine, Made in Japan

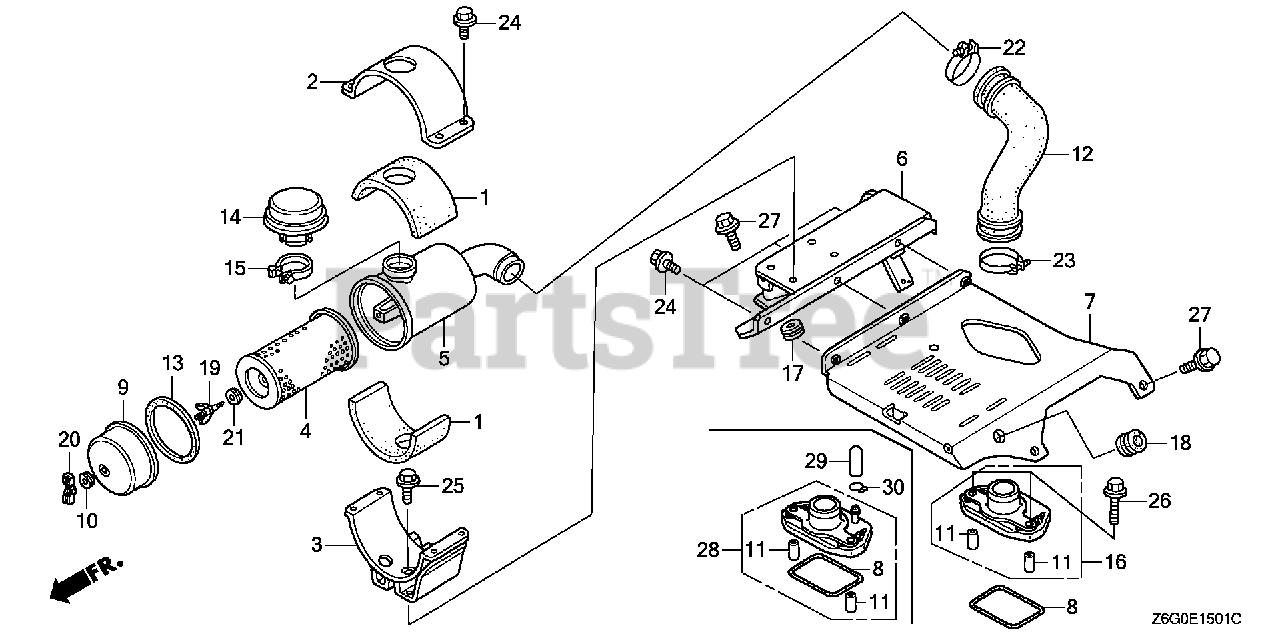

AIR CLEANER (SNORKEL) Parts Diagram

  • Title

1

Honda 17207-ZJ1-840

RUBBER, AIR CLEANER HOLDER (UPPER)

$15.99

$

Usually ships in 3-6 days

0

2

Honda 17208-ZJ1-840

HOLDER, AIR CLEANER (UPPER)

$32.99

$

Usually ships in 3-6 days

0

3

Honda 17209-ZJ1-840

HOLDER, AIR CLEANER (LOWER)

$72.99

$

Usually ships in 3-6 days

0

4

Honda 17210-759-013

ELEMENT, AIR CLEANER

$37.99

$

Usually ships in 3-6 days

0

5

Honda 17220-ZJ1-850

HOUSING, AIR CLEANER (SNORKEL)

$102.99

$

Usually ships in 3-6 days

0

6

Honda 17222-ZJ1-850

STAY A, AIR CLEANER (SNORKEL)

$66.99

$

Usually ships in 3-6 days

0

7

Honda 17224-ZJ1-852

STAY B, AIR CLEANER (SNORKEL)

$46.99

$

Usually ships in 3-6 days

0

8

Honda 17229-ZN1-000

SEAL, AIR CLEANER HOUSING

$7.49

$

In Stock, only 2 left!

0

9

Honda 17230-759-003

COVER, AIR CLEANER

$55.99

$

Usually ships in 3-6 days

0

10

Honda 17232-891-000

GROMMET, AIR CLEANER

$5.49

$

In Stock, Qty 15

0

11

Honda 17238-ZJ4-830

COLLAR A, AIR CLEANER

$2.49

$

In Stock, Qty 5

0

12

Honda 17251-ZJ1-851

TUBE, AIR CLEANER CONNECTING

$47.99

$

In Stock, only 1 left!

0

13

Honda 17253-759-003

SEAL, AIR CLEANER

$16.99

$

Usually ships in 3-6 days

0

14

Honda 17320-ZG5-801

CAP, IN.

$63.99

$

Usually ships in 3-6 days

0

15

Honda 17330-ZG5-801

CLAMP ASSY.

$6.99

$

Usually ships in 3-6 days

0

17

Honda 19111-MF5-000

GROMMET, RESERVE TANK

$3.49

$

Usually ships in 3-6 days

0

18

Honda 83551-MB9-000

GROMMET

$2.99

$

Usually ships in 3-6 days

0

19

Honda 90113-759-003

BOLT, AIR CLEANER

$13.99

$

Usually ships in 3-6 days

0

20

Honda 90203-ZA0-800

WINGNUT (6MM) (BLACK)

$3.99

$

Usually ships in 3-6 days

0

21

Honda 90502-759-003

WASHER, AIR CLEANER

$6.49

$

Usually ships in 3-6 days

0

22

Honda 95018-52250

BAND, AIR CLEANER CONNECTING TUBE (52)

$6.99

$

Usually ships in 3-6 days

0

23

Honda 95018-58250

BAND, AIR CLEANER CONNECTING TUBE (58)

$6.99

$

Usually ships in 3-6 days

0

24

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

$1.99

$

In Stock, Qty 20+

0

25

Honda 95701-06016-00

BOLT, FLANGE (6X16)

$1.99

$

In Stock, Qty 20+

0

26

Honda 95701-06028-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X28)

$2.49

$

In Stock, Qty 7

0

27

Honda 95701-08020-00

BOLT, FLANGE (8X20)

$2.49

$

In Stock, Qty 6

0

28

Honda 17415-Z6G-000

JOINT B, CONNECTING TUBE

$15.99

$

Usually ships in 3-6 days

0

29

Honda 90634-ZL8-H00

CAP, SEALING

$5.49

$

Usually ships in 3-6 days

0

30

Honda 95002-02100

CLIP, TUBE (B10)

$2.49

$

In Stock, Qty 16

0
