GX670 TXA2 (GCAM) - Honda Engine, Made in Japan (SN: GCAM-1000001 - GCAM-1049999) AIR CLEANER (SNORKEL) Parts Diagram

Engine, Made in Japan

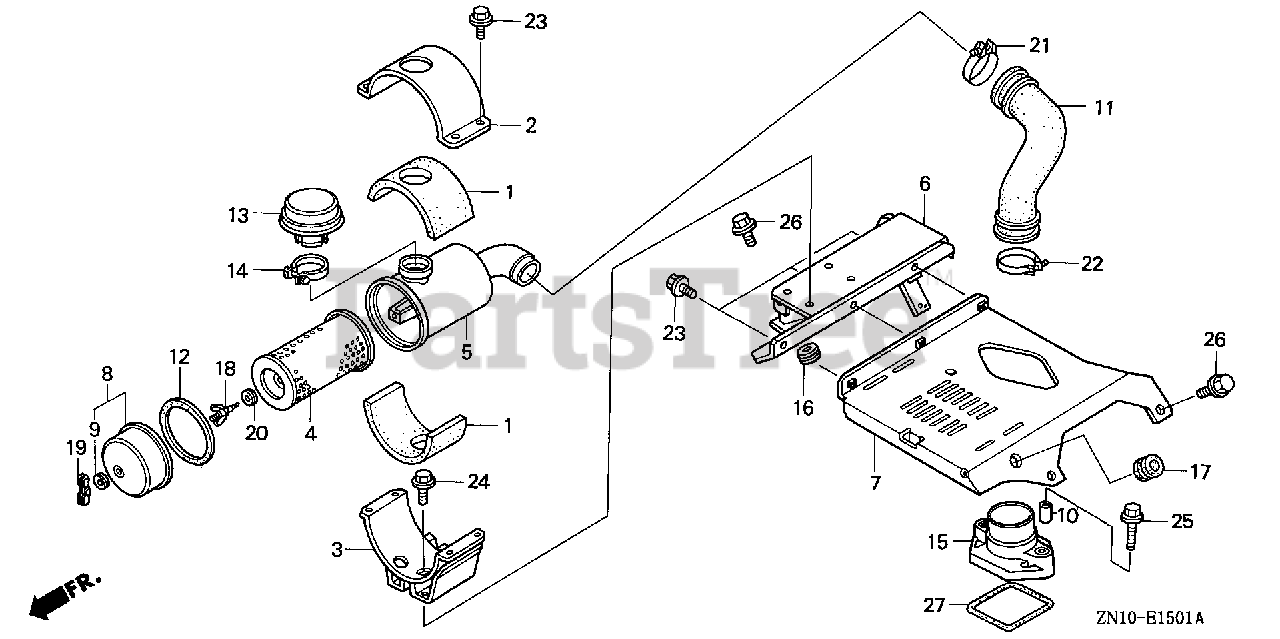

AIR CLEANER (SNORKEL) Parts Diagram

  • Title

1

Honda 17207-ZJ1-840

RUBBER, AIR CLEANER HOLDER (UPPER)

$20.99

$

Usually ships in 3-6 days

0

2

Honda 17208-ZJ1-840

HOLDER, AIR CLEANER (UPPER)

$42.99

$

Usually ships in 3-6 days

0

3

Honda 17209-ZJ1-840

HOLDER, AIR CLEANER (LOWER)

$93.99

$

Usually ships in 3-6 days

0

4

Honda 17210-759-013

ELEMENT, AIR CLEANER

$56.99

$

In Stock, only 1 left!

0

5

Honda 17220-ZJ1-850

HOUSING, AIR CLEANER (SNORKEL)

$133.99

$

Usually ships in 3-6 days

0

6

Honda 17222-ZJ1-850

STAY A, AIR CLEANER (SNORKEL)

$83.99

$

Usually ships in 3-6 days

0

7

Honda 17224-ZJ1-852

STAY B, AIR CLEANER (SNORKEL)

$58.99

$

Usually ships in 3-6 days

0

8

Honda 17230-759-003

COVER, AIR CLEANER

$72.99

$

Usually ships in 3-6 days

0

9

Honda 17232-891-000

GROMMET, AIR CLEANER

$6.99

$

In Stock, Qty 20+

0

10

Honda 17238-ZJ4-830

COLLAR A, AIR CLEANER

$3.49

$

In Stock, only 2 left!

0

11

Honda 17251-ZJ1-851

TUBE, AIR CLEANER CONNECTING

$

$

Not available

12

Honda 17253-759-003

SEAL, AIR CLEANER

$20.99

$

Usually ships in 3-6 days

0

13

Honda 17320-ZG5-801

CAP, IN.

$81.99

$

Usually ships in 3-6 days

0

14

Honda 17330-ZG5-801

CLAMP ASSY.

$8.99

$

Usually ships in 3-6 days

0

15

Honda 17418-ZN1-000

JOINT B, CONNECTING TUBE

$17.99

$

Usually ships in 3-6 days

0

16

Honda 19111-MF5-000

GROMMET, RESERVE TANK

$4.49

$

In Stock, only 1 left!

0

17

Honda 83551-MB9-000

GROMMET

$3.99

$

Usually ships in 3-6 days

0

18

Honda 90113-759-003

BOLT, AIR CLEANER

$16.99

$

Usually ships in 3-6 days

0

19

Honda 90203-ZA0-800

WINGNUT (6MM) (BLACK)

$4.99

$

In Stock, Qty 14

0

20

Honda 90502-759-003

WASHER, AIR CLEANER

$8.49

$

Usually ships in 3-6 days

0

21

Honda 95018-50250

SEE PART DETAILS - PRI; BAND, AIR CLEANER CONNECTING TUBE (50)

Note: Use up to Engine SN 1019535.

$11.99

$

Usually ships in 3-6 days

0

21

Honda 95018-52250

BAND, AIR CLEANER CONNECTING TUBE (52)

Note: Use from Engine SN 1019536.

$8.49

$

Usually ships in 3-6 days

0

22

Honda 95018-58250

BAND, AIR CLEANER CONNECTING TUBE (58)

$9.49

$

Usually ships in 3-6 days

0

23

Honda 95701-06012-00

BOLT, FLANGE (6X12)

$2.49

$

In Stock, Qty 20+

0

24

Honda 95701-06016-00

BOLT, FLANGE (6X16)

$2.49

$

In Stock, Qty 15

0

25

Honda 95701-06028-00

BOLT, FLANGE (6X28)

$2.99

$

In Stock, only 1 left!

0

26

Honda 95701-08020-00

BOLT, FLANGE (8X20)

$2.99

$

In Stock, only 3 left!

0

27

Honda 17229-ZN1-000

SEAL, AIR CLEANER HOUSING

$9.49

$

In Stock, only 2 left!

0
