GX670 U BDW (GCASK) - Honda Engine, Made in Japan (SN: GCASK-1000001 - GCASK-9999999) CONTROL (2) Parts Diagram

Engine, Made in Japan

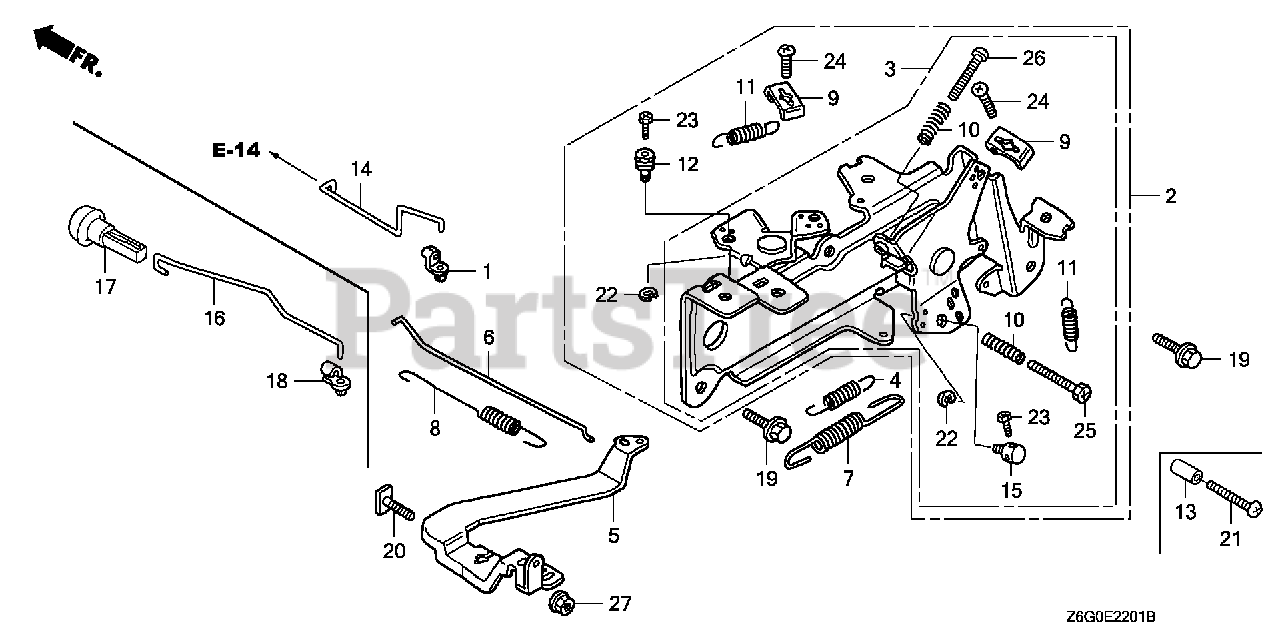

CONTROL (2) Parts Diagram

  • Title

1

Honda 16263-883-W10

JOINT, ROD (Honda Code 6224315).

$1.49

$

In Stock, Qty 5

0

2

Honda 16500-ZJ1-861

SEE PART DETAILS - PRI; CONTROL ASSY.

$134.99

$

Usually ships in 3-6 days

0

4

Honda 16534-ZN1-000

SEE PART DETAILS - SUP; SPRING, STARTER
(Superseded to 16534-ZN1-010)

Note: Use up to Engine SN 1002449.

$3.49

$

In Stock, only 2 left!

0

4

Honda 16534-ZN1-010

SEE PART DETAILS - PRI; SPRING, STARTER

$3.49

$

In Stock, only 2 left!

0

5

Honda 16551-ZJ1-840

ARM, GOVERNOR (Honda Code 6224414).

$18.99

$

Usually ships in 3-6 days

0

6

Honda 16555-ZN1-000

ROD, GOVERNOR

$6.99

$

Usually ships in 3-6 days

0

7

Honda 16561-ZN1-000

SPRING, GOVERNOR

$5.99

$

In Stock, only 2 left!

0

8

Honda 16562-ZN1-000

SPRING, THROTTLE RETURN

$4.99

$

In Stock, only 2 left!

0

9

Honda 16576-891-000

HOLDER, CABLE (Honda Code 0800466).

$5.99

$

In Stock, only 1 left!

0

10

Honda 16584-883-300

SPRING, CONTROL ADJUSTING Use from Engine SN 2327377.

$5.99

$

In Stock, only 3 left!

0

11

Honda 16592-ZJ1-000

SPRING, CABLE RETURN (Honda Code 4209581).

$2.99

$

In Stock, Qty 20+

0

12

Honda 16594-883-010

SEE PART DETAILS - PRI; HOLDER, WIRE (Honda Code 2686558).

$10.99

$

Usually ships in 3-6 days

0

14

Honda 16611-ZN1-000

ROD, CHOKE CONTROL

$8.49

$

In Stock, only 2 left!

0

15

Honda 16617-ZJ1-840

HOLDER, CABLE

$6.99

$

Usually ships in 3-6 days

0

19

Honda 90014-952-000

BOLT, FLANGE (6X14) (Honda Code 0803619).

$3.49

$

In Stock, Qty 20+

0

20

Honda 90015-ZE3-790

BOLT, GOVERNOR ARM (Honda Code 2560852).

$3.49

$

In Stock, only 2 left!

0

22

Honda 90605-230-000

CIRCLIP (5MM) Use from Engine SN 2327377.

$4.99

$

In Stock, only 1 left!

0

23

Honda 92301-04006-0H

BOLT, RECESSED (4X6)

$1.49

$

In Stock, Qty 5

0

24

Honda 92301-05016-0A

SEE PART DETAILS - PRI; BOLT, RECESSED (5X16) (Honda Code 3509742).

$1.99

$

In Stock, only 1 left!

0

25

Honda 92301-05025-0A

BOLT, SLOT (5X25) (Honda Code 6227193).

$1.49

$

Usually ships in 3-6 days

0

26

Honda 93500-05025-0A

SEE PART DETAILS - PRI; SCREW, PAN (5X25) (Honda Code 0145565).

$1.49

$

Usually ships in 3-6 days

0

27

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0471623).

$0.99

$

In Stock, Qty 20+

0
