GX670 VXC2/A (GDACM) - Honda Engine, Made in Japan (SN: GDACM-1010001 - GDACM-9999999) AIR CLEANER (STANDARD) Parts Diagram

Engine, Made in Japan

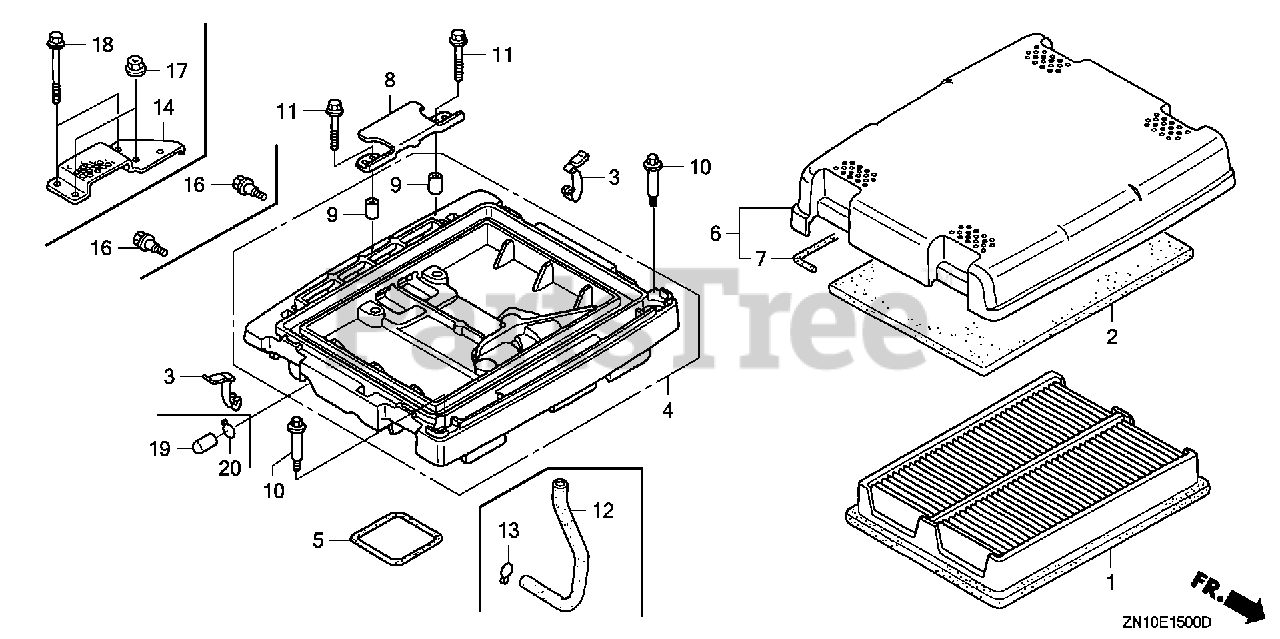

AIR CLEANER (STANDARD) Parts Diagram

  • Title

1

Honda 17210-ZN1-821

ELEMENT ASSY., AIR CLEANER

$55.99

$

In Stock, only 1 left!

0

1

Honda 17210-ZN1-822

ELEMENT ASSY., AIR CLEANER

$55.99

$

In Stock, Qty 7

0

2

Honda 17218-ZJ1-840

FILTER (OUTER) (Honda Code 6224661).

$7.49

$

In Stock, only 4 left!

0

3

Honda 17219-ZJ1-840

CLIP, AIR CLEANER (Honda Code 6224679).

$4.49

$

In Stock, only 3 left!

0

4

Honda 17220-ZN1-821

HOUSING, AIR CLEANER

$81.99

$

Usually ships in 3-6 days

0

6

Honda 17230-ZN1-821

COVER ASSY., AIR CLEANER

$56.99

$

Usually ships in 3-6 days

0

7

Honda 17233-ZJ1-840

SEAL, AIR CLEANER COVER (Honda Code 6224737).

$3.49

$

In Stock, only 1 left!

0

9

Honda 17238-ZJ4-830

COLLAR A, AIR CLEANER (Honda Code 6224752).

$2.49

$

In Stock, Qty 5

0

10

Honda 90003-ZJ1-840

BOLT, SPECIAL (5MM) (Honda Code 6226971).

$3.49

$

Usually ships in 3-6 days

0

12

Honda 12357-ZJ4-830

TUBE, BREATHER (Honda Code 6260236).

$9.99

$

In Stock, only 1 left!

0

13

Honda 15772-551-000

CLIP, BREATHER TUBE (Honda Code 0501353).

$2.99

$

In Stock, Qty 5

0

14

Honda 17223-ZN2-000

CAP, AIR CLEANER

$12.99

$

Usually ships in 3-6 days

0

16

Honda 90002-ZJ1-840

BOLT, FLANGE (6MM) (Honda Code 6261648).

$3.99

$

Usually ships in 3-6 days

0

17

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0471623).

$0.99

$

In Stock, Qty 20+

0

18

Honda 95701-06095-00

BOLT, FLANGE (6X95)

$2.49

$

Usually ships in 3-6 days

0
