GX670 VXC2/A (GDACM) - Honda Engine, Made in Japan (SN: GDACM-1010001 - GDACM-9999999) CARBURETOR (2) Parts Diagram

Engine, Made in Japan

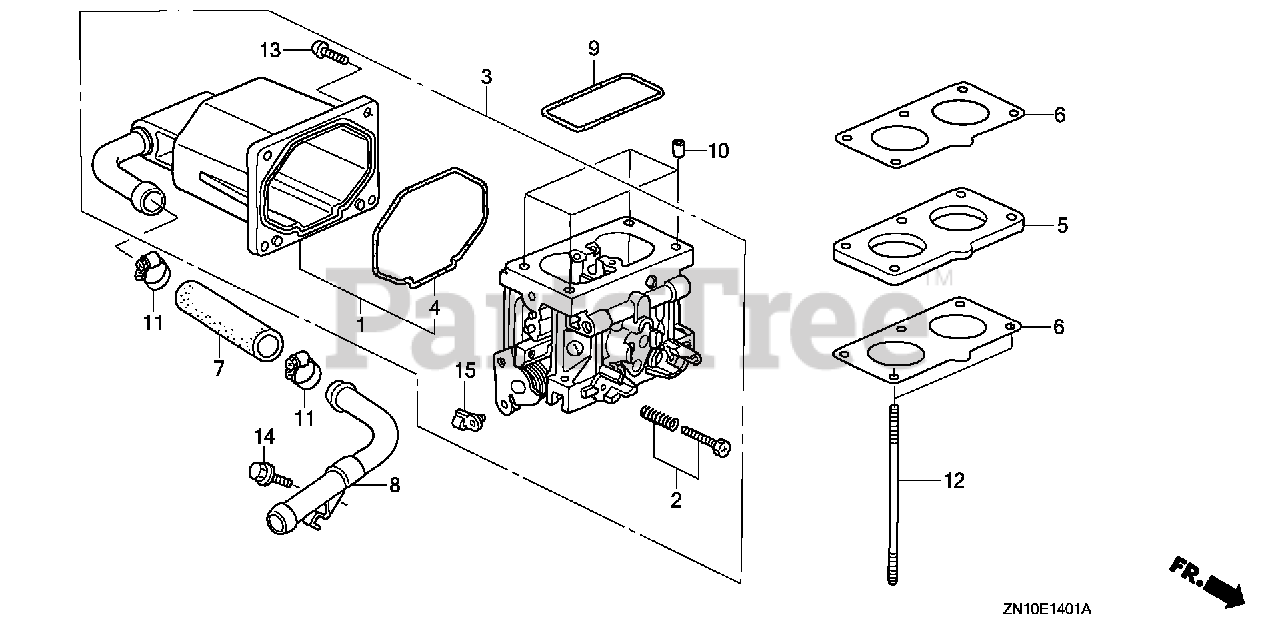

CARBURETOR (2) Parts Diagram

  • Title

1

Honda 16015-ZN1-831

CHAMBER SET, FLOAT

$101.99

$

Usually ships in 3-6 days

0

2

Honda 16028-ZN1-801

SCREW SET, THROTTLE (ADVENTURE GREEN) (CARBURETOR NO.)

$13.99

$

Usually ships in 3-6 days

0

3

Honda 16100-ZN1-831

CARBURETOR ASSY. (BKL1A A)

$369.99

$

Usually ships in 3-6 days

0

4

Honda 16163-ZN1-831

GASKET, FLOAT CHAMBER

$5.99

$

Usually ships in 3-6 days

0

5

Honda 16211-ZN1-000

INSULATOR, CARBURETOR

$15.99

$

In Stock, only 1 left!

0

6

Honda 16221-ZN1-000

GASKET, CARBURETOR

$5.99

$

In Stock, only 1 left!

0

7

Honda 16347-ZN1-820

HOSE, FUEL
(Superseded to 16347-ZN1-821)

$8.99

$

Usually ships in 3-6 days

0

8

Honda 16920-ZN1-820

JOINT, FUEL

$19.99

$

Usually ships in 3-6 days

0

9

Honda 17228-ZN1-000

GASKET, AIR CLEANER

$16.99

$

In Stock, only 3 left!

0

10

Honda 17238-ZJ4-830

COLLAR A, AIR CLEANER (Honda Code 6224752).

$2.99

$

In Stock, only 3 left!

0

11

Honda 19505-KS6-700

CLAMP A, WATER HOSE

Note: Use from Engine SN 1011086.

$16.99

$

Usually ships in 3-6 days

0

11

Honda 19506-KA4-000

CLAMP, WATER HOSE

Note: Use up to Engine SN 1011085.

$13.99

$

Usually ships in 3-6 days

0

12

Honda 90041-147-000

BOLT, STUD (6X108)

$9.99

$

Usually ships in 3-6 days

0

13

Honda 93500-04014-0H

SCREW, PAN (4X14)

$1.49

$

Usually ships in 3-6 days

0

14

Honda 95701-08020-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X20) Use up to Engine SN 1609606.

$2.99

$

In Stock, Qty 13

0

15

Honda 16126-ZJ1-841

ARM, THROTTLE LINKAGE (CARBURETOR NO.)

$10.99

$

Usually ships in 3-6 days

0
