GX690 HX VXC4 (GDACH) - Honda Engine, Made in China (SN: GDACH-1000001 - GDACH-9999999) CARBURETOR (2) Parts Diagram
Engine, Made in China

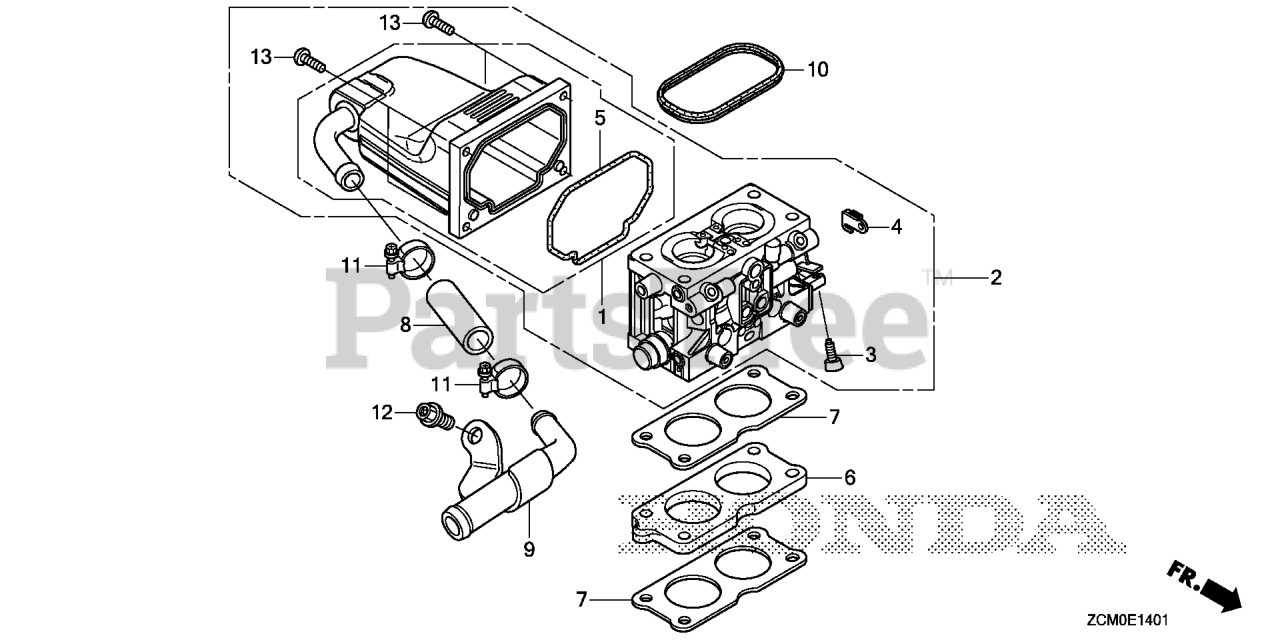

CARBURETOR (2) Parts Diagram
Honda 16015-Z6L-901
CHAMBER SET, FLOAT
$160.99
$
Usually ships in 3-6 days
Honda 16100-Z6L-902
CARBURETOR ASSY. (BKL2A B)
$470.99
$
Usually ships in 3-6 days
Honda 16124-ZE0-005
SCREW, THROTTLE STOP (Honda Code 1441559).
$20.99
$
In Stock, only 2 left!
Honda 16126-Z6L-003
ARM, THROTTLE LINKAGE
$10.99
$
In Stock, Qty 8
Honda 16163-Z6L-901
GASKET, FLOAT CHAMBER
$17.99
$
Usually ships in 3-6 days
Honda 16211-Z6L-000
INSULATOR, CARBURETOR
$11.99
$
In Stock, Qty 10
Honda 16221-Z6L-000
GASKET, CARBURETOR
$5.49
$
In Stock, Qty 9
Honda 16347-ZN1-821
HOSE, FUEL
$9.49
$
Usually ships in 3-6 days
Honda 16920-Z6L-900
JOINT, FUEL
$78.99
$
Usually ships in 3-6 days
Honda 17228-Z6L-000
GASKET, AIR CLEANER
$4.99
$
In Stock, Qty 8
Honda 19505-KS6-700
CLAMP A, WATER HOSE
$16.99
$
Usually ships in 3-6 days
Honda 90649-SB0-671
BOLT, FLANGE (8X16)
$10.99
$
Usually ships in 3-6 days
Honda 93500-04014-0H
SCREW, PAN (4X14)
$1.49
$
Usually ships in 3-6 days
