GXH50 U QEB4 (GCAFK) - Honda Engine, Made in Japan (SN: GCAFK-1000001 - GCAFK-9999999) CARBURETOR (1) Parts Diagram

Engine, Made in Japan

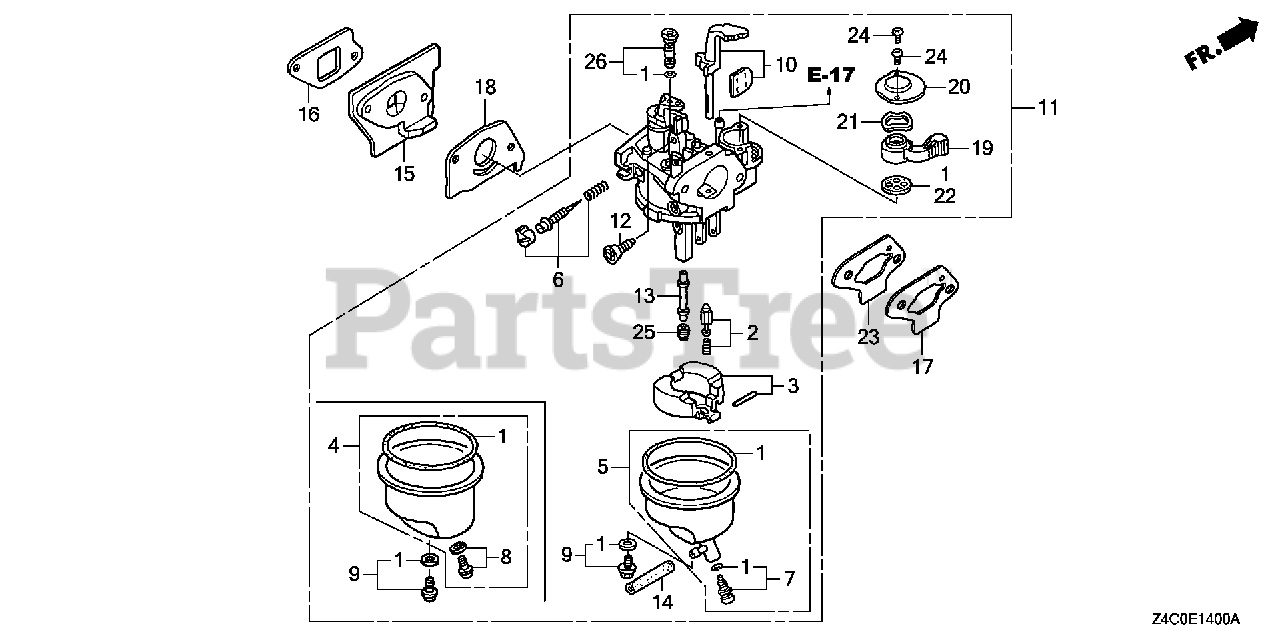

CARBURETOR (1) Parts Diagram

  • Title

1

Honda 16010-ZM7-003

GASKET SET

$16.99

$

In Stock, Qty 15

0

2

Honda 16011-ZE0-005

VALVE SET, FLOAT (SEAT NOT INCLUDED)

$27.99

$

In Stock, Qty 11

0

3

Honda 16013-ZG0-811

FLOAT SET

$

$

Not available

5

Honda 16015-ZM7-003

CHAMBER SET, FLOAT

$57.99

$

In Stock, only 1 left!

0

6

Honda 16016-ZH7-W01

SCREW SET, PILOT (CARBURETOR NO.)

$19.99

$

In Stock, only 4 left!

0

7

Honda 16024-ZB9-005

SCREW SET, DRAIN

$9.49

$

In Stock, Qty 9

0

9

Honda 16028-ZG0-811

SEE PART DETAILS - SUP; SCREW SET
(Superseded to 16028-ZW6-611)

$13.99

$

Usually ships in 3-6 days

0

9

Honda 16028-ZW6-611

SEE PART DETAILS - PRI; SCREW SET

$13.99

$

Usually ships in 3-6 days

0

10

Honda 16044-ZM7-003

CHOKE SET

$36.99

$

Usually ships in 3-6 days

0

11

Honda 16100-ZM7-V32

SEE PART DETAILS - PRI; CARBURETOR ASSY. (BF32G A)

$67.99

$

Usually ships in 3-6 days

0

12

Honda 16124-ZE0-005

SCREW, THROTTLE STOP

$14.99

$

In Stock, only 2 left!

0

13

Honda 16166-ZM7-003

NOZZLE, MAIN

$20.99

$

Usually ships in 3-6 days

0

14

Honda 95003-05008-60M

BULK HOSE, VINYL (3.5X6.5X8000) (3.5X6.5X100)

$26.99

$

In Stock, only 1 left!

0

15

Honda 16211-ZM7-000

INSULATOR, CARBURETOR

$8.49

$

In Stock, only 1 left!

0

16

Honda 16212-ZM7-000

GASKET, INSULATOR

$2.49

$

In Stock, Qty 20+

0

17

Honda 16220-ZM7-V30

SPACER, CARBURETOR

$7.49

$

In Stock, only 1 left!

0

18

Honda 16221-ZG0-801

GASKET, CARBURETOR

$2.49

$

In Stock, Qty 14

0

19

Honda 16953-ZG0-812

SEE PART DETAILS - PRI; LEVER, PETCOCK

$11.99

$

Usually ships in 3-6 days

0

20

Honda 16954-ZE1-812

PLATE, LEVER SETTING

$3.99

$

In Stock, only 1 left!

0

21

Honda 16956-ZE1-811

SEE PART DETAILS - PRI; SPRING, PETCOCK LEVER

$3.49

$

In Stock, Qty 12

0

22

Honda 16957-ZE1-812

SEE PART DETAILS - PRI; GASKET, PETCOCK

$3.99

$

In Stock, Qty 15

0

23

Honda 17228-ZM7-000

GASKET, AIR CLEANER

$2.99

$

In Stock, Qty 17

0

24

Honda 93500-03006-0H

SCREW, PAN (3X6)

$0.99

$

In Stock, only 4 left!

0

25

Honda 99101-ZG0-0480

JET, MAIN (#48)

Note: (Optional).

$7.99

$

In Stock, only 1 left!

0

25

Honda 99101-ZG0-0500

JET, MAIN (#50)

Note: (Optional).

$9.99

$

In Stock, only 1 left!

0

25

Honda 99101-ZG0-0520

JET, MAIN (#52)

$9.99

$

Usually ships in 3-6 days

0

26

Honda 99204-ZE2-0350

JET SET, PILOT (#35)

$13.99

$

Usually ships in 3-6 days

0
