GXV120 A1LA (GXV120) - Honda Engine, Made in Japan (SN: GXV120-1000001 - GXV120-2999999) CYLINDER + OIL PAN Parts Diagram

Engine, Made in Japan

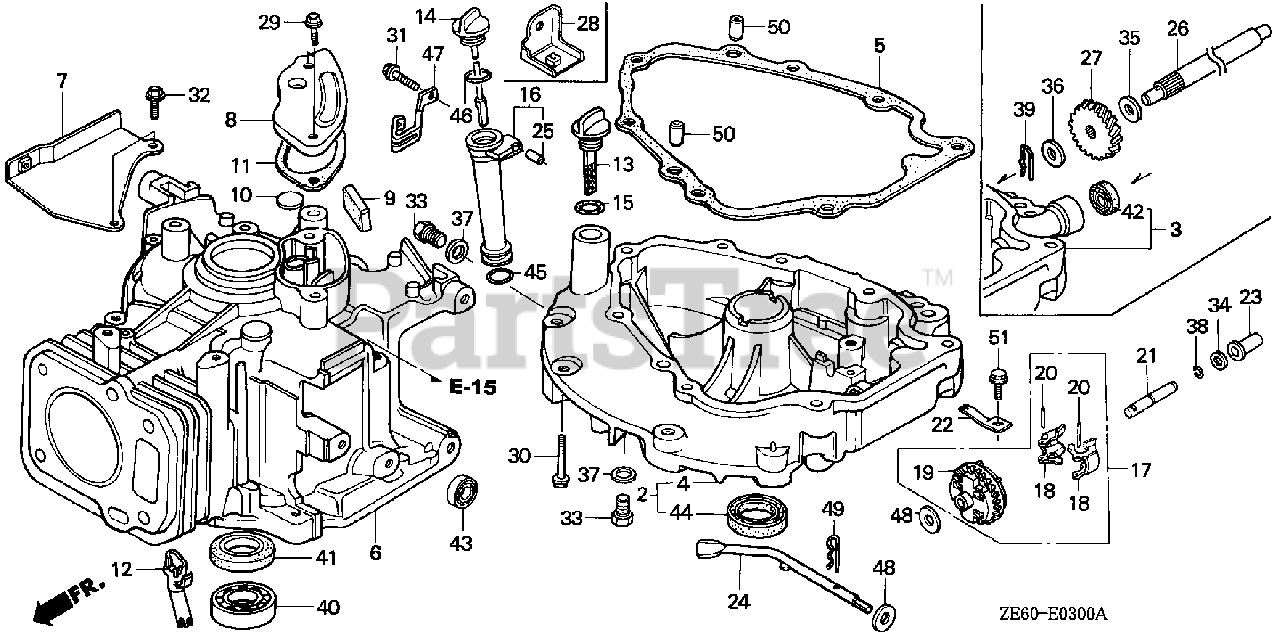

CYLINDER + OIL PAN Parts Diagram

  • Title

2

Honda 11300-ZE6-407

PAN ASSY., OIL

$183.99

$

Usually ships in 3-6 days

0

5

Honda 11381-ZG9-J60

SEE PART DETAILS - SUP; GASKET, OIL PAN
(Superseded to 11381-ZG9-T00)

$13.99

$

In Stock, only 2 left!

0

5

Honda 11381-ZG9-T00

SEE PART DETAILS - PRI; GASKET, OIL PAN

$13.99

$

In Stock, only 2 left!

0

6

Honda 12100-ZE6-030

SEE PART DETAILS - SUP; CYLINDER

Note: Use up to Engine SN 2553493.

$

$

Currently unavailable

6

Honda 12100-ZE6-405

SEE PART DETAILS - PRI; CYLINDER

Note: Use from Engine SN 2553494.

$512.99

$

Usually ships in 3-6 days

0

8

Honda 12360-ZE6-000

CAP, BREATHER CHAMBER

$

$

Not available

9

Honda 12367-ZE6-010

FILTER, BREATHER

$3.99

$

In Stock, Qty 6

0

10

Honda 12372-879-000

VALVE, BREATHER

$2.99

$

In Stock, only 2 left!

0

11

Honda 12373-ZE6-000

GASKET, BREATHER CHAMBER

$3.49

$

In Stock, only 2 left!

0

12

Honda 12385-ZE6-000

PIPE, OIL DEFENSE

$

$

Not available

14

Honda 15620-ZE6-810

SEE PART DETAILS - PRI; GAUGE, OIL LEVEL

$13.99

$

In Stock, only 3 left!

0

16

Honda 15630-ZE6-810

EXTENSION, OIL FILLER

$59.99

$

In Stock, only 1 left!

0

17

Honda 16510-ZE6-000

GOVERNOR ASSY.

$27.99

$

In Stock, Qty 6

0

18

Honda 16511-ZE1-000

WEIGHT, GOVERNOR

$4.49

$

Usually ships in 3-6 days

0

19

Honda 16512-ZE6-000

HOLDER, GOVERNOR WEIGHT

$16.99

$

Usually ships in 3-6 days

0

20

Honda 16513-ZE1-000

PIN, GOVERNOR WEIGHT

$2.99

$

In Stock, only 2 left!

0

21

Honda 16515-ZE6-000

SEE PART DETAILS - SUP; SHAFT, GOVERNOR HOLDER
(Superseded to 16515-ZE6-010)

Note: Use up to Engine SN 2560774.

$7.99

$

Usually ships in 3-6 days

0

21

Honda 16515-ZE6-010

SEE PART DETAILS - PRI; SHAFT, GOVERNOR HOLDER

$7.99

$

Usually ships in 3-6 days

0

22

Honda 16525-ZE6-010

PLATE, GOVERNOR SHAFT HOLDER

$7.99

$

Usually ships in 3-6 days

0

23

Honda 16531-ZE1-000

SEE PART DETAILS - PRI; SLIDER, GOVERNOR

$4.49

$

In Stock, only 1 left!

0

24

Honda 16541-ZE7-000

SHAFT, GOVERNOR ARM

$16.99

$

Usually ships in 3-6 days

0

25

Honda 17240-ZE6-000

COLLAR, EXTENSION

$5.49

$

In Stock, only 2 left!

0

28

Honda 43143-ZE6-000

BASE, HOLDER

$

$

Not available

29

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

$2.49

$

In Stock, Qty 20+

0

30

Honda 90015-883-000

BOLT, FLANGE (6X28) (CT200)

$4.49

$

In Stock, only 4 left!

0

31

Honda 90017-883-000

BOLT, FLANGE (6X32)

$3.99

$

In Stock, Qty 6

0

33

Honda 90131-ZE1-000

SEE PART DETAILS - PRI; BOLT, DRAIN PLUG

$3.49

$

In Stock, Qty 6

0

34

Honda 90451-ZE1-000

SEE PART DETAILS - PRI; WASHER, THRUST (6MM)

$2.49

$

In Stock, only 3 left!

0

34

Honda 90451-898-000

SEE PART DETAILS - SUP; WASHER, THRUST (6MM)

Note: Use up to Engine SN 2560774.

$

$

Currently unavailable

37

Honda 90601-ZE1-000

WASHER, DRAIN PLUG (10.2MM)

$1.99

$

In Stock, Qty 20+

0

38

Honda 90602-ZE1-000

SEE PART DETAILS - PRI; CLIP, GOVERNOR HOLDER

$1.99

$

In Stock, Qty 7

0

40

Honda 91001-878-003

BEARING, RADIAL BALL (62/22)

$41.99

$

In Stock, only 2 left!

0

41

Honda 91202-ZE6-003

SEE PART DETAILS - SUP; OIL SEAL (22X35X6)
(Superseded to 91202-ZE6-013)

Note: Use up to Engine SN 2563587.

$11.99

$

In Stock, Qty 6

0

41

Honda 91202-ZE6-013

SEE PART DETAILS - PRI; OIL SEAL (22X35X6)

Note: Use from Engine SN 2563588.

$11.99

$

In Stock, Qty 6

0

43

Honda 91231-891-003

OIL SEAL (6X11X4) (ARAI)

$3.49

$

In Stock, only 2 left!

0

44

Honda 91201-ZG9-U71

SEE PART DETAILS - PRI; OIL SEAL (25X38X7)

$5.49

$

In Stock, only 1 left!

0

44

Honda 91252-888-003

SEE PART DETAILS - SUP; OIL SEAL (25X38X7) (ARAI)
(Superseded to 91201-ZG9-U71)

$5.49

$

In Stock, only 1 left!

0

45

Honda 91301-805-000

O-RING (26X2.7)

$5.99

$

In Stock, only 2 left!

0

46

Honda 91301-ZE9-003

SEE PART DETAILS - PRI; O-RING (22.1X2.2)

$2.99

$

In Stock, Qty 13

0

48

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM)

$0.99

$

In Stock, Qty 20+

0

49

Honda 94251-08000

PIN, LOCK (8MM)

$1.99

$

In Stock, Qty 13

0

50

Honda 94301-08140

PIN, DOWEL (8X14)

$3.49

$

In Stock, only 3 left!

0

51

Honda 95701-06012-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

$2.49

$

In Stock, only 4 left!

0
