GXV120 N12 (GXV120) - Honda Engine, Made in Japan (SN: GXV120-1000001 - GXV120-2999999) PISTON + CRANKSHAFT Parts Diagram

Engine, Made in Japan

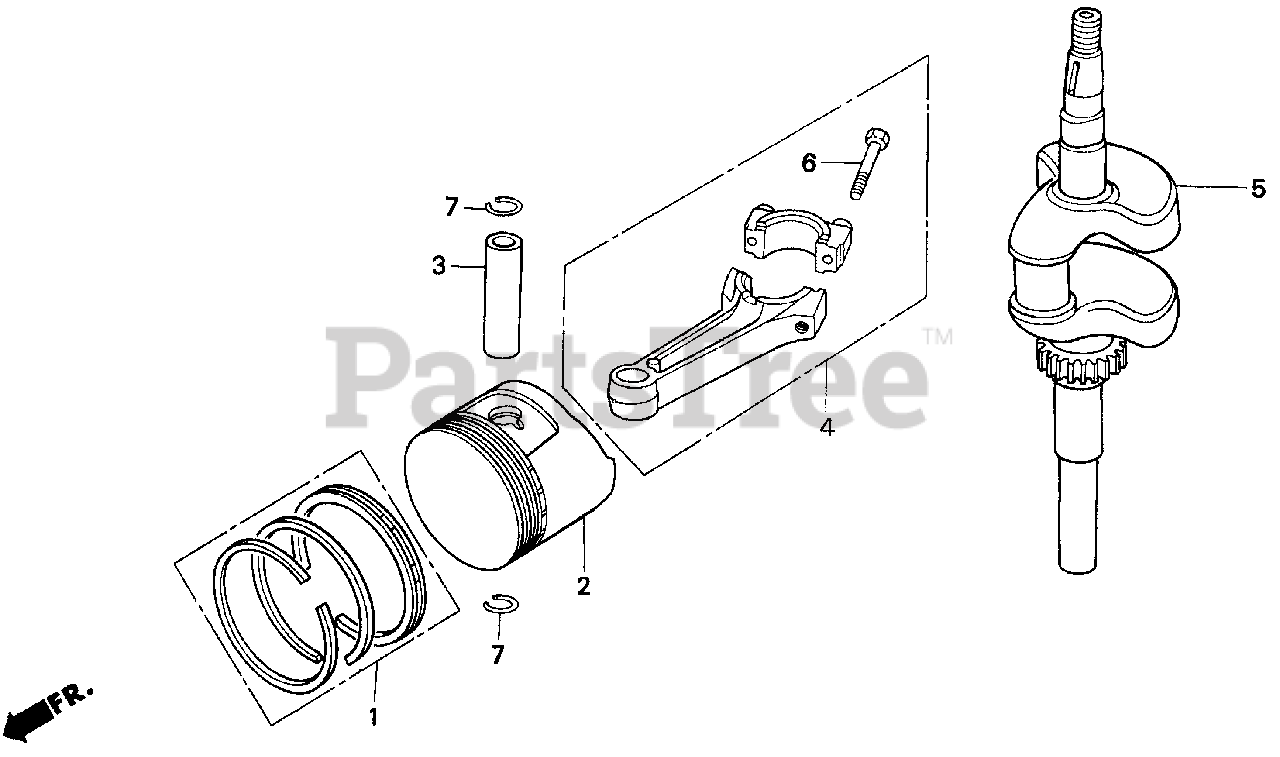

PISTON + CRANKSHAFT Parts Diagram

  • Title

1

Honda 13010-ZE6-013

SEE PART DETAILS - PRI; RING SET, PISTON (STD) (Honda Code 3017936).

$25.99

$

In Stock, only 1 left!

0

1

Honda 13011-ZE6-013

SEE PART DETAILS - PRI; RING SET, PISTON (OS 0.25) (Honda Code 3023520).

Note: (Optional).

$37.99

$

Usually ships in 3-6 days

0

1

Honda 13012-ZE6-013

SEE PART DETAILS - PRI; RING SET, PISTON (OS 0.50) (Honda Code 3017944).

Note: (Optional).

$

$

Not available

1

Honda 13013-ZE6-013

SEE PART DETAILS - PRI; RING SET, PISTON (0.75) (Honda Code 3017969).

Note: (Optional).

$37.99

$

Usually ships in 3-6 days

0

2

Honda 13101-ZE6-023

SEE PART DETAILS - SUP; PISTON (STD) (Honda Code 2962736).
(Superseded to 13101-ZE6-033)

$41.99

$

Usually ships in 3-6 days

0

2

Honda 13101-ZE6-033

SEE PART DETAILS - PRI; PISTON (STD) (Honda Code 7065824).

$41.99

$

Usually ships in 3-6 days

0

2

Honda 13102-ZE6-023

SEE PART DETAILS - PRI; PISTON (OS 0.25) (Honda Code 3086949).

Note: (Optional).

$

$

Not available

2

Honda 13103-ZE6-023

SEE PART DETAILS - PRI; PISTON (OS 0.50) (Honda Code 3187796).

Note: (Optional).

$

$

Not available

2

Honda 13104-ZE6-023

SEE PART DETAILS - PRI; PISTON (0.75) (Honda Code 3519741).

Note: (Optional).

$

$

Not available

3

Honda 13111-ZE0-000

PIN, PISTON (Honda Code 1426576).

$7.49

$

In Stock, only 1 left!

0

4

Honda 13200-ZE6-010

SEE PART DETAILS - PRI; ROD ASSY., CONNECTING (Honda Code 3214913).

$86.99

$

Usually ships in 3-6 days

0

4

Honda 13200-ZE6-315

ROD ASSY., CONNECTING (US 0.25) (Honda Code 3352648).

Note: (Optional).

$101.99

$

Usually ships in 3-6 days

0

5

Honda 13310-ZE6-000

CRANKSHAFT (N1 TYPE) (Honda Code 1672161).

$237.99

$

Usually ships in 3-6 days

0

6

Honda 90001-ZE1-000

BOLT, CONNECTING ROD (Honda Code 1431055).

$3.49

$

Usually ships in 3-6 days

0

7

Honda 90551-ZE0-000

CLIP, PISTON PIN (13MM) (Honda Code 2605517).

$1.99

$

In Stock, Qty 13

0
