GXV120 N2CA (GXV120) - Honda Engine, Made in Japan (SN: GXV120-1000001 - GXV120-2999999) FAN COVER + IGNITION COIL Parts Diagram

Engine, Made in Japan

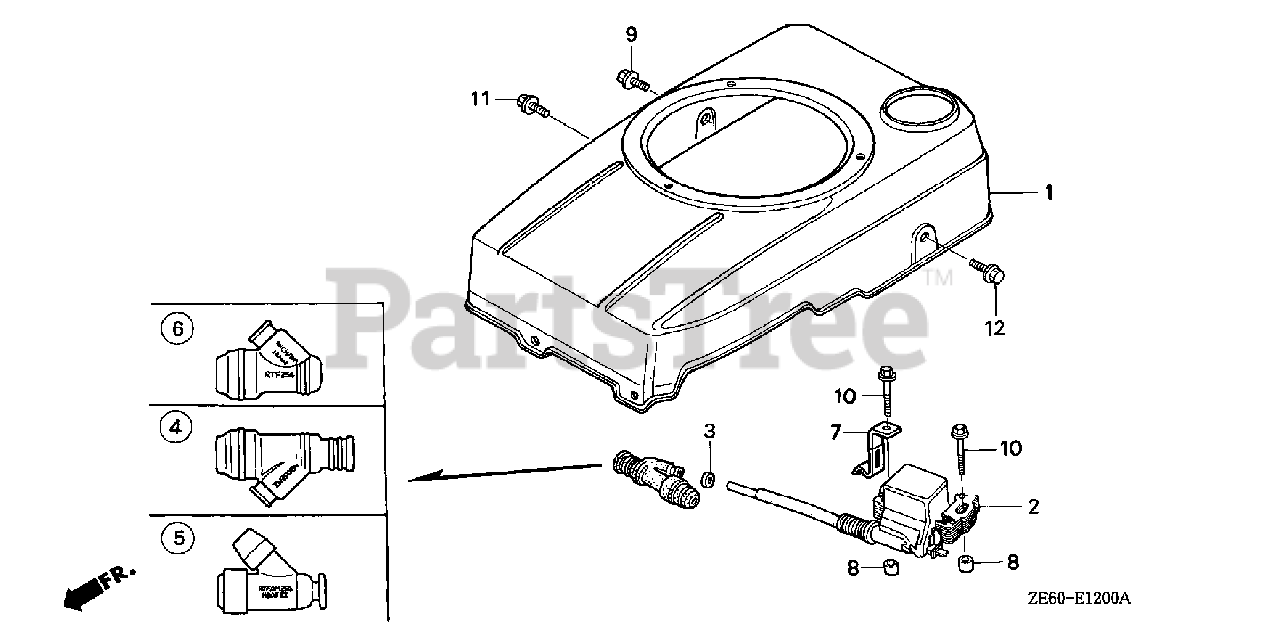

FAN COVER + IGNITION COIL Parts Diagram

  • Title

1

Honda 19610-ZE6-010ZA

SEE PART DETAILS - SUP; COVER, FAN *R8* (BRIGHT RED)

Note: Use up to Engine SN 2465103.

$

$

Currently unavailable

1

Honda 19610-ZE6-020ZA

SEE PART DETAILS - SUP; COVER, FAN *R8* (BRIGHT RED)

Note: Use from Engine SN 2465104.

$

$

Currently unavailable

2

Honda 30500-ZG9-M02

SEE PART DETAILS - SUP; COIL ASSY., IGNITION

Note: Use up to Engine SN 2488068.

$

$

Currently unavailable

2

Honda 30500-ZG9-M02

SEE PART DETAILS - SUP; COIL ASSY., IGNITION

Note: Use from Engine SN 2488069.

$

$

Currently unavailable

5

Honda 30700-ZE6-023

SEE PART DETAILS - PRI; CAP ASSY., NOISE SUPPRESSOR

$28.99

$

In Stock, only 2 left!

0

9

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

$2.49

$

In Stock, Qty 20+

0

10

Honda 90121-952-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X25) (CT200)

$3.49

$

In Stock, Qty 20+

0

11

Honda 95701-06010-00

BOLT, FLANGE (6X10)

$1.99

$

In Stock, Qty 20+

0

12

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

$2.49

$

In Stock, Qty 20+

0
