GXV140 N1EA (GJAB) - Honda Engine, Made in USA (SN: GJAB-6000001 - GJAB-7999999) CONTROL (1) Parts Diagram

Engine, Made in USA

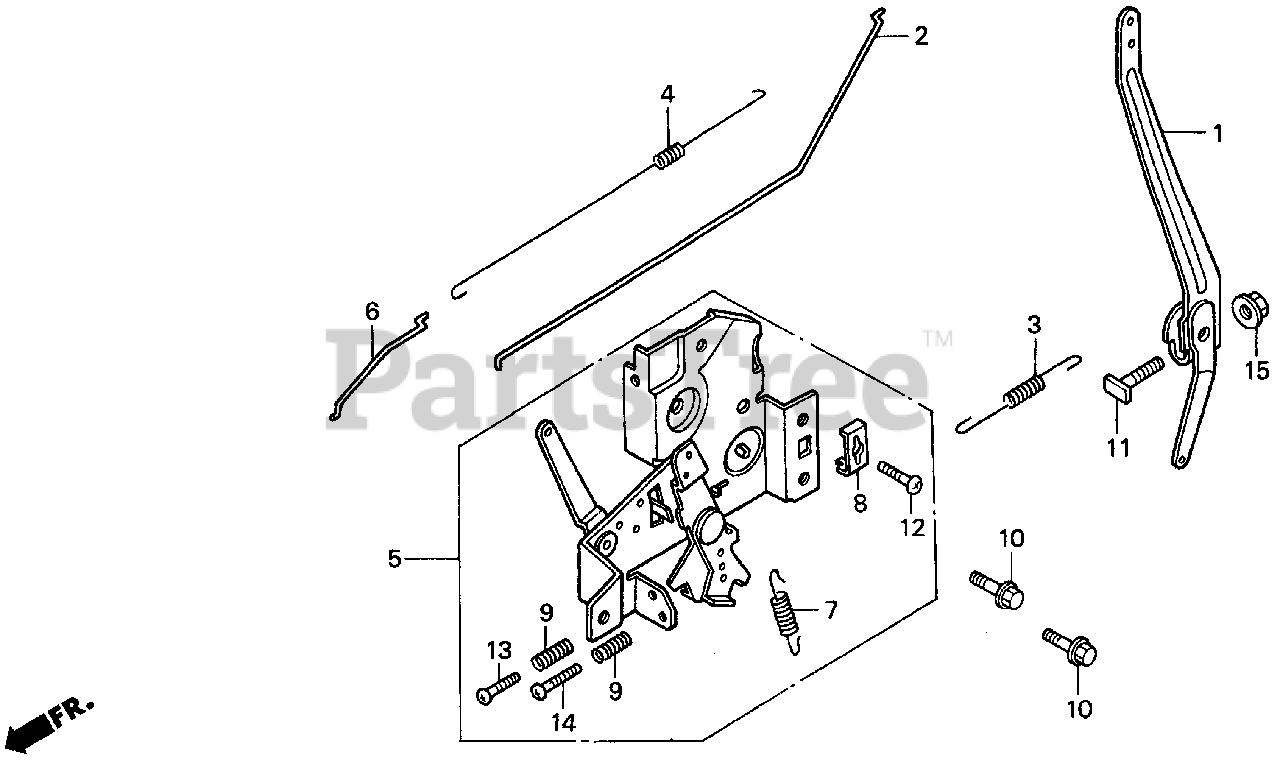

CONTROL (1) Parts Diagram

  • Title

1

Honda 16551-ZE6-U40

ARM, GOVERNOR (C,G)

Note: (Honda Code 4755245).

$

$

Not available

2

Honda 16555-ZE6-000

ROD, GOVERNOR

Note: (Honda Code 1452895).

$5.49

$

In Stock, only 1 left!

0

3

Honda 16561-ZE6-010

SPRING, GOVERNOR

Note: (Honda Code 1509280).

$4.49

$

In Stock, only 3 left!

0

4

Honda 16562-ZE6-000

SPRING, THROTTLE RETURN

Note: (Honda Code 1452911).

$4.99

$

In Stock, Qty 7

0

5

Honda 16570-ZE6-U50

CONTROL

Note: (Honda Code 4728937).

$

$

Not available

6

Honda 16573-ZE6-010

ROD, CHOKE

Note: (Honda Code 1672237).

$2.99

$

In Stock, only 2 left!

0

7

Honda 16574-ZG9-M00

SPRING, LEVER

Note: (Honda Code 4034682).

$3.99

$

In Stock, only 3 left!

0

8

Honda 16576-891-000

HOLDER, CABLE

Note: (Honda Code 0800466).

$4.99

$

In Stock, only 2 left!

0

9

Honda 16584-883-300

SPRING, CONTROL ADJUSTING

Note: (Honda Code 0636431).

$4.99

$

In Stock, only 1 left!

0

10

Honda 90014-952-000

BOLT, FLANGE (6X14)

Note: (Honda Code 0803619).

$2.99

$

In Stock, Qty 8

0

11

Honda 90015-ZE5-010

BOLT, GOVERNOR ARM

Note: (Honda Code 2418671).

$3.49

$

In Stock, only 2 left!

0

12

Honda 93500-05016-0A

SCREW, PAN (5X16)

Note: (Honda Code 0145557).

$1.49

$

In Stock, Qty 10

0

13

Honda 93500-05020-0A

SCREW, PAN (5X20)

Note: (Honda Code 0197731).

$1.49

$

Usually ships in 3-6 days

0

14

Honda 93500-05025-0A

SCREW, PAN (5X25)

Note: (Honda Code 0145565).

$1.49

$

Usually ships in 3-6 days

0

15

Honda 94050-06000

NUT, FLANGE (6MM)

Note: (Honda Code 0471623).

$0.99

$

In Stock, Qty 20+

0
