GXV140 N1EA (GJAB) - Honda Engine, Made in USA (SN: GJAB-6000001 - GJAB-7999999) STARTER MOTOR Parts Diagram

Engine, Made in USA

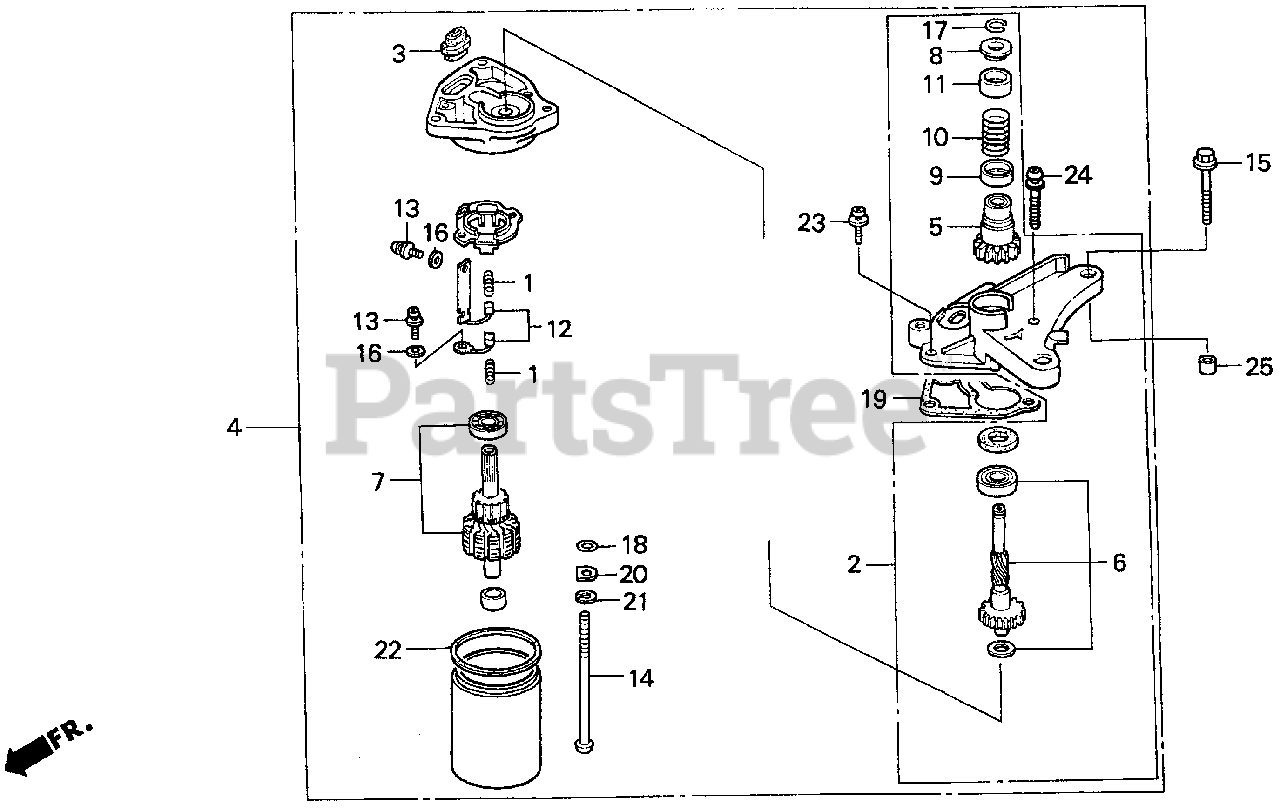

STARTER MOTOR Parts Diagram

  • Title

1

Honda 31204-187-701

SPRING, BRUSH

Note: (Honda Code 1030519).

$5.49

$

Usually ships in 3-6 days

0

2

Honda 31205-ZG9-003

COVER, GEAR

Note: (Honda Code 3447943).

$275.99

$

Usually ships in 3-6 days

0

3

Honda 31207-187-701

GROMMET

Note: (Honda Code 1879287).

$

$

Not available

4

Honda 31210-ZG9-013

MOTOR ASSY., STARTER

Note: (Honda Code 4118071).

$

$

Not available

5

Honda 31214-ZE6-013

GEAR, PINION (16T)

Note: (Honda Code 1879337).

$119.99

$

Usually ships in 3-6 days

0

6

Honda 31215-ZG9-003

SHAFT SET, GEAR

Note: (Honda Code 3447992).

$113.99

$

Usually ships in 3-6 days

0

7

Honda 31217-ZG9-013

ROTOR ASSY.

Note: (Honda Code 4441002).

$62.99

$

Usually ships in 3-6 days

0

8

Honda 31221-ZE6-003

PIECE A, STOPPER

Note: (Honda Code 1879378).

$10.99

$

Usually ships in 3-6 days

0

9

Honda 31222-ZE6-003

PIECE B, STOPPER

Note: (Honda Code 1879386).

$

$

Not available

10

Honda 31223-ZE6-013

SPRING, RETURN

Note: (Honda Code 1879394).

$

$

Not available

11

Honda 31224-ZE6-003

COVER, SPRING

Note: (Honda Code 1879402).

$

$

Not available

12

Honda 31226-ZE6-003

BRUSH SET

Note: (Honda Code 1879410).

$

$

Not available

13

Honda 90010-187-701

SCREW-WASHER (3X8)

Note: (Honda Code 1879782).

$3.49

$

Usually ships in 3-6 days

0

14

Honda 90012-ZE6-003

BOLT, SETTING

Note: (Honda Code 1879790).

$2.49

$

Usually ships in 3-6 days

0

15

Honda 90017-883-000

BOLT, FLANGE (6X32)

Note: (Honda Code 0636076).

$3.49

$

In Stock, only 2 left!

0

16

Honda 90501-187-701

WASHER, SPECIAL

Note: (Honda Code 1879816).

$

$

Not available

17

Honda 90601-ZE6-003

CIRCLIP (7.1MM)

Note: (Honda Code 1879824).

$2.49

$

In Stock, Qty 7

0

18

Honda 91301-ZE6-003

O-RING

Note: (Honda Code 1879881).

$

$

Not available

19

Honda 91401-ZE6-013

GASKET

Note: (Honda Code 4809224).

$

$

Not available

20

Honda 91402-ZE6-003

WASHER, SPECIAL

Note: (Honda Code 1879907).

$2.99

$

Usually ships in 3-6 days

0

21

Honda 91403-ZE6-003

WASHER, SPRING

Note: (Honda Code 1879915).

$2.49

$

Usually ships in 3-6 days

0

22

Honda 91601-ZE6-003

GASKET

Note: (Honda Code 1879923).

$8.49

$

Usually ships in 3-6 days

0

23

Honda 93892-05016-08

SCREW-WASHER (5X16)

Note: (Honda Code 0634733).

$1.49

$

Usually ships in 3-6 days

0

24

Honda 93892-05032-08

SCREW-WASHER (5X3)

Note: (Honda Code 1171891).

$1.99

$

In Stock, Qty 6

0

25

Honda 94301-08140

PIN A, DOWEL (8X14)

Note: (Honda Code 0069310).

$2.99

$

In Stock, Qty 14

0
