GXV160 A1 A1AS (GJAJA) - Honda Engine, Made in USA (SN: GJAJA-1000001 - GJAJA-9999999) FLYWHEEL (A1AS,A1T,A12,N12) Parts Diagram

Engine, Made in USA

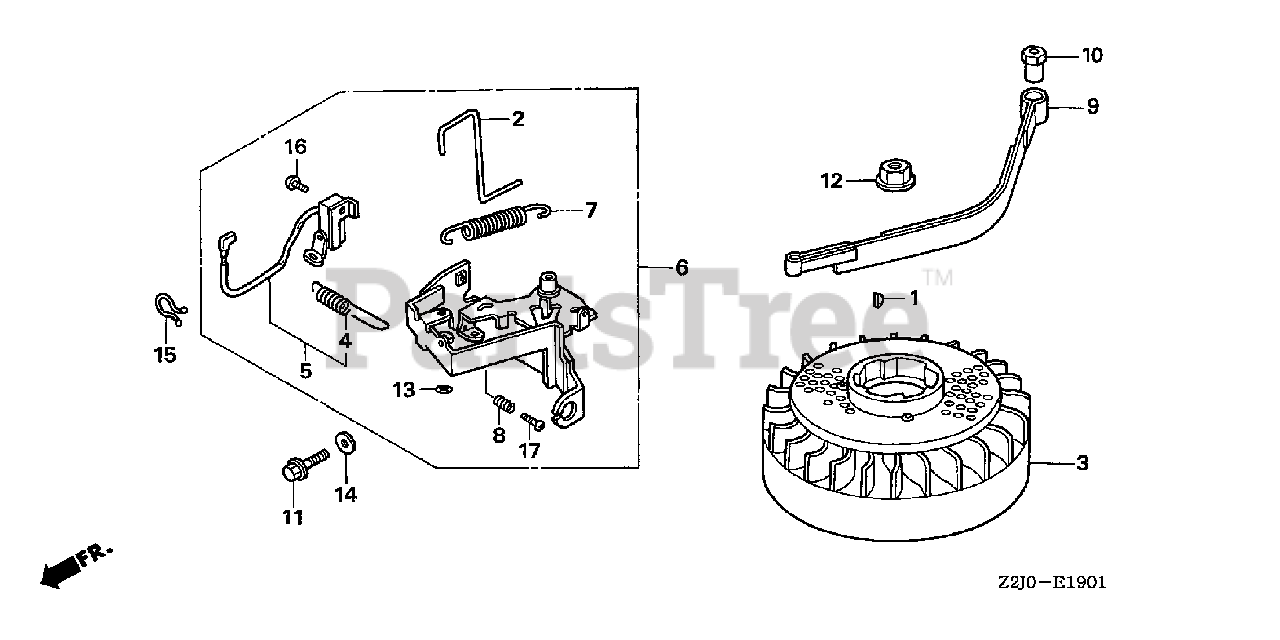

FLYWHEEL (A1AS,A1T,A12,N12) Parts Diagram

  • Title

1

Honda 13331-357-000

KEY, SPECIAL WOODRUFF (25X18)

$4.99

$

In Stock, Qty 12

0

2

Honda 16566-ZE7-W00

ROD, GOVERNOR ARM RETURN

$

$

Not available

3

Honda 31105-ZE7-W00

FLYWHEEL ASSY.

$33.99

$

Usually ships in 3-6 days

0

4

Honda 35129-ZG9-800

SPRING, SWITCH CONTROL

$4.99

$

Usually ships in 3-6 days

0

5

Honda 36100-ZE7-W01

SWITCH ASSY., ENGINE STOP

$

$

Not available

6

Honda 75101-ZE7-W00

LEVER ASSY., BRAKE

$138.99

$

Usually ships in 3-6 days

0

7

Honda 75113-ZG9-800

SPRING, BRAKE LEVER

$5.99

$

Usually ships in 3-6 days

0

8

Honda 75114-ZG9-800

SPRING, BRAKE ADJUSTING

$4.49

$

Usually ships in 3-6 days

0

9

Honda 75120-ZG9-305

BRAKE

$40.99

$

Usually ships in 3-6 days

0

10

Honda 75123-ZG9-800

COLLAR, BRAKE SHAFT

$12.99

$

Usually ships in 3-6 days

0

11

Honda 90014-952-000

BOLT, FLANGE (6X14) (CT200)

$2.99

$

In Stock, Qty 8

0

12

Honda 90201-878-003

NUT, SPECIAL (14MM)

$7.99

$

In Stock, only 2 left!

0

13

Honda 90310-ZB7-701

NUT, PUSH (2.6)

$2.99

$

Usually ships in 3-6 days

0

14

Honda 90461-357-000

SEE PART DETAILS - SUP; WASHER, SEALING (12MM)
(Superseded to 90463-KRM-840)

$1.99

$

Usually ships in 3-6 days

0

15

Honda 90630-ZE7-W01

CLIP, PURSE LOCK

$1.49

$

Usually ships in 3-6 days

0

16

Honda 93500-04008-0A

SCREW, PAN (4X8)

$1.49

$

In Stock, only 4 left!

0

17

Honda 93500-05012-0A

SEE PART DETAILS - PRI; SCREW, PAN (5X12)

$1.49

$

In Stock, Qty 8

0
