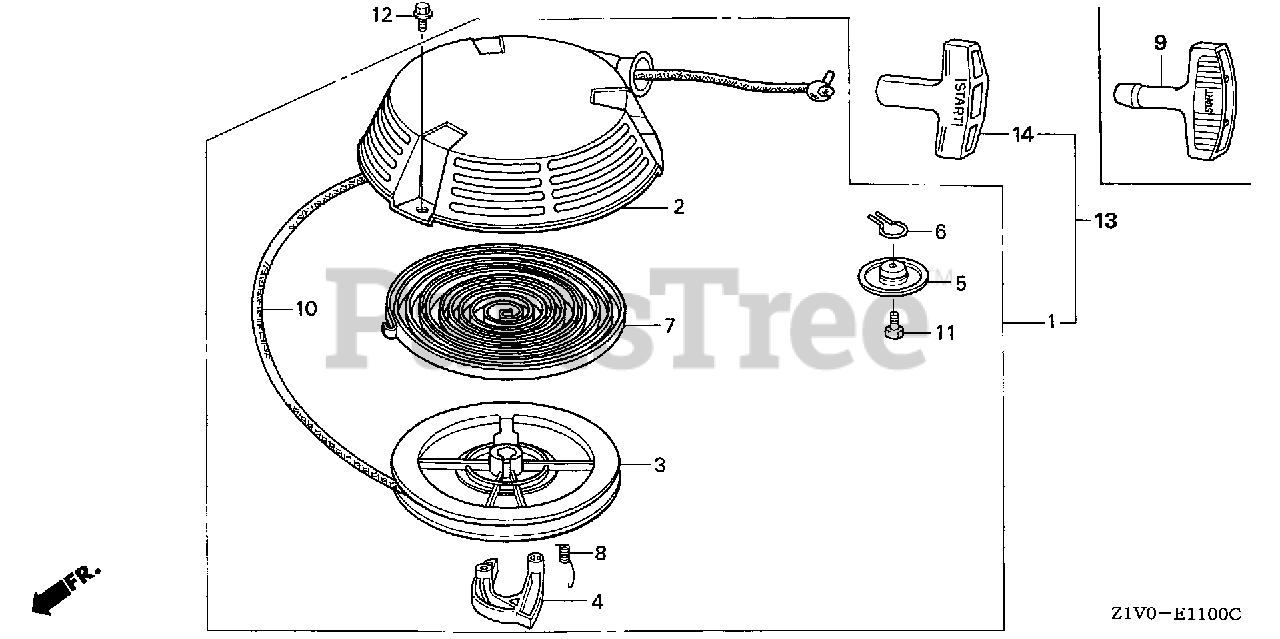

GXV160 H2 T1AH (GJAAH) - Honda Engine, Made in China (SN: GJAAH-1000001 - GJAAH-9999999) RECOIL STARTER (1) Parts Diagram

Engine, Made in China

RECOIL STARTER (1) Parts Diagram

  • Title

2

Honda 28410-ZE7-003ZB

CASE, RECOIL STARTER *NH1* (BLACK) (NOT AVAILABLE)

Note: Use up to Engine SN 1113862.

$

$

Currently unavailable

3

Honda 28420-ZE7-003

PULLEY, RECOIL STARTER

Note: Use up to Engine SN 1113862.

$37.99

$

Usually ships in 3-6 days

0

4

Honda 28422-896-010

RATCHET, STARTER

Note: Use up to Engine SN 1113862.

$7.49

$

In Stock, only 1 left!

0

5

Honda 28431-896-000

PLATE, FRICTION

Note: Use up to Engine SN 1113862.

$5.99

$

Usually ships in 3-6 days

0

6

Honda 28441-896-000

SPRING, FRICTION

Note: Use up to Engine SN 1113862.

$7.99

$

Usually ships in 3-6 days

0

7

Honda 28442-896-700

SPRING, RECOIL STARTER

Note: Use up to Engine SN 1113862.

$31.99

$

In Stock, only 1 left!

0

8

Honda 28443-896-000

SPRING, RETURN

Note: Use up to Engine SN 1113862.

$4.49

$

In Stock, only 1 left!

0

10

Honda 28462-ZA7-003

SEE PART DETAILS - SUP; ROPE, RECOIL STARTER
(Superseded to 28462-ZE6-T02)

Note: Use up to Engine SN 1113862.

$5.99

$

In Stock, only 1 left!

0

10

Honda 28462-ZE6-T02

SEE PART DETAILS - PRI; ROPE, LONG (55")

Note: Use up to Engine SN 1113862.

$5.99

$

In Stock, only 1 left!

0

11

Honda 92101-06012-0H

BOLT, HEX. (6X12)

Note: Use up to Engine SN 1113862.

$1.99

$

Usually ships in 3-6 days

0

12

Honda 95701-06008-00

BOLT, FLANGE (6X8)

Note: Use up to Engine SN 1113862.

$3.49

$

In Stock, only 1 left!

0

13

Honda 28400-ZE7-003ZB

STARTER ASSY., RECOIL *NH1* (BLACK) (NOT AVAILABLE)

Note: Use up to Engine SN 1113862.

$

$

Currently unavailable

14

Honda 28461-ZE1-013

SEE PART DETAILS - PRI; KNOB, RECOIL STARTER

Note: Use up to Engine SN 1113862.

$7.99

$

In Stock, Qty 15

0
