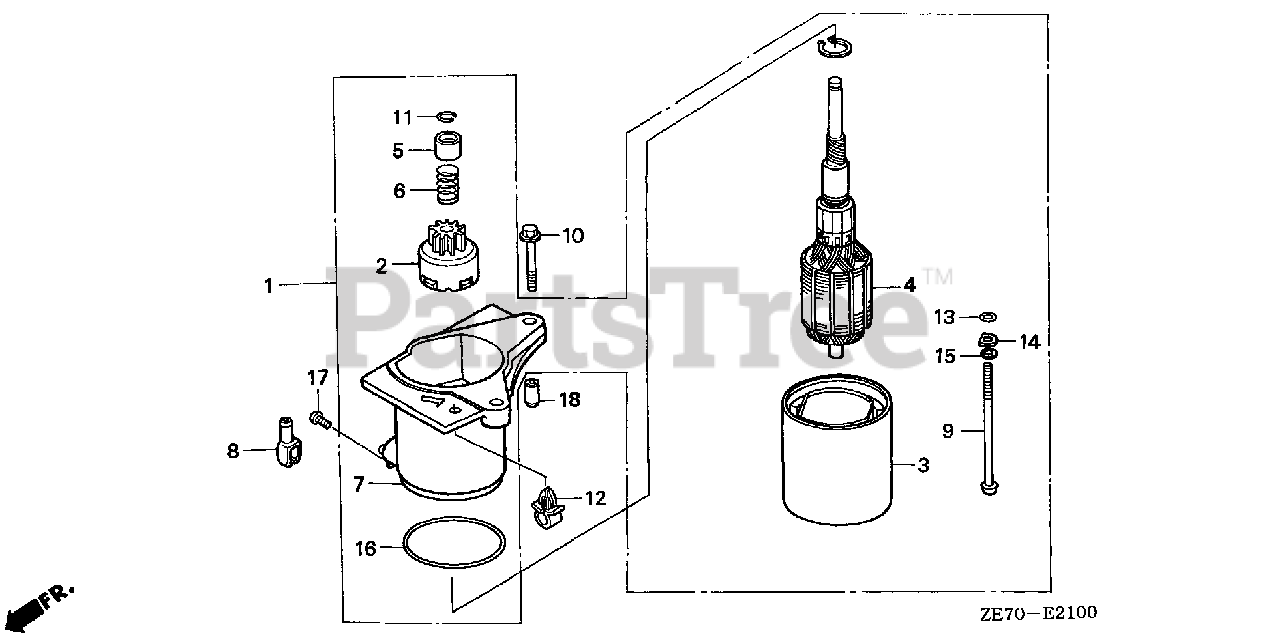

GXV160 K1 N1E2 (GJ03) - Honda Engine, Made in USA (SN: GJ03-6100001 - GJ03-7999999) STARTER MOTOR Parts Diagram

Engine, Made in USA

STARTER MOTOR Parts Diagram

  • Title

1

Honda 31210-ZE7-023

SEE PART DETAILS - PRI; MOTOR UNIT, STARTER

Note: (Honda Code 4212171).

$582.99

$

Usually ships in 3-6 days

0

2

Honda 31214-ZE7-003

GEAR ASSY., PINION

Note: (Honda Code 2290096).

$

$

Not available

3

Honda 31216-ZE1-721

YOKE ASSY.

Note: (Honda Code 2290104).

$

$

Not available

4

Honda 31217-ZE7-013

ROTOR ASSY.

Note: (Honda Code 4212189).

$

$

Not available

5

Honda 31221-ZE7-003

PIECE, STOPPER

Note: (Honda Code 2290120).

$

$

Not available

6

Honda 31223-ZE7-003

SPRING, RETURN

Note: (Honda Code 2290138).

$

$

Not available

7

Honda 31235-ZE7-013

SEE PART DETAILS - PRI; BRACKET, FR.

Note: (Honda Code 2964609).

$

$

Not available

8

Honda 32411-ZE7-003

COVER, TERMINAL

Note: (Honda Code 4508156).

$

$

Not available

9

Honda 90012-ZE6-003

BOLT, SETTING

Note: (Honda Code 1879790).

$2.99

$

Usually ships in 3-6 days

0

10

Honda 90017-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X32)

Note: (Honda Code 0636076).

$3.99

$

In Stock, Qty 6

0

11

Honda 90602-ZE7-003

CIRCLIP (OUTER) (8.3MM)

Note: (Honda Code 2291185).

$

$

Not available

13

Honda 91301-ZE1-003

SEE PART DETAILS - PRI; O-RING

Note: (Honda Code 3329398).

$2.99

$

Usually ships in 3-6 days

0

14

Honda 91402-ZE6-003

WASHER, SPECIAL

Note: (Honda Code 1879907).

$2.99

$

Usually ships in 3-6 days

0

15

Honda 91403-ZE6-003

WASHER, SPRING

Note: (Honda Code 1879915).

$2.49

$

Usually ships in 3-6 days

0

16

Honda 31206-KN7-670

O-RING

Note: (Honda Code 1996529).

$3.49

$

Usually ships in 3-6 days

0

18

Honda 94301-08140

SEE PART DETAILS - PRI; PIN A, DOWEL (8X14)

Note: (Honda Code 0069310).

$3.49

$

In Stock, only 3 left!

0
