GXV160 UH2 SFL1 (GJABH) - Honda Engine, Made in China (SN: GJABH-1000001 - GJABH-2003435) BLADE HOLDER Parts Diagram

Engine, Made in China

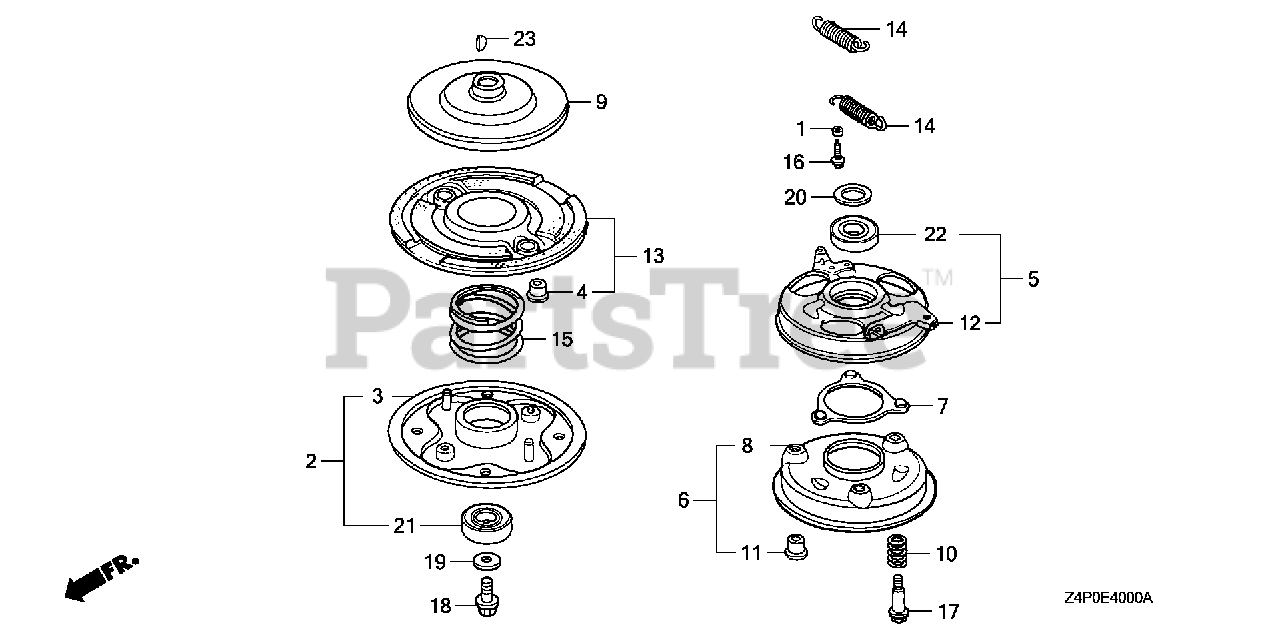

BLADE HOLDER Parts Diagram

  • Title

1

Honda 19512-883-000

SEE PART DETAILS - PRI; COLLAR, FAN

Note: Use up to Engine SN 1101679.

$2.49

$

In Stock, only 3 left!

0

2

Honda 72600-VA4-010

HOLDER ASSY., BLADE

Note: Use up to Engine SN 1101679.

$106.99

$

In Stock, only 2 left!

0

3

Honda 72610-VA4-000

HOLDER, BLADE

Note: Use up to Engine SN 1101679.

$47.99

$

In Stock, only 1 left!

0

4

Honda 72613-VA4-000

BUSH, BLADE HOLDER

Note: Use up to Engine SN 1101679.

$5.49

$

In Stock, only 4 left!

0

5

Honda 75090-VA4-030

PLATE ASSY., BALL CONTROL

Note: Use up to Engine SN 1101679.

$115.99

$

Usually ships in 3-6 days

0

6

Honda 75100-VA4-010

BRAKE

Note: Use up to Engine SN 1101679.

$104.99

$

Usually ships in 3-6 days

0

7

Honda 75110-VA4-000

RETAINER, BALL

Note: Use up to Engine SN 1101679.

$8.49

$

In Stock, only 2 left!

0

8

Honda 75120-VA4-010

DISK, BRAKE

Note: Use up to Engine SN 1101679.

$96.99

$

Usually ships in 3-6 days

0

9

Honda 75130-VA4-000

DISK, DRIVE

Note: Use up to Engine SN 1101679.

$159.99

$

In Stock, only 2 left!

0

10

Honda 75132-VA4-000

SPRING, BRAKE HOLDER

Note: Use up to Engine SN 1101679.

$4.49

$

In Stock, Qty 10

0

11

Honda 75133-VA4-000

BUSH, BRAKE HOLDER

Note: Use up to Engine SN 1101679.

$4.99

$

In Stock, only 4 left!

0

12

Honda 75140-VA4-020

PLATE, BALL CONTROL

Note: Use up to Engine SN 1101679.

$91.99

$

Usually ships in 3-6 days

0

13

Honda 75150-VA3-J01

SEE PART DETAILS - SUP; DISK, DRIVEN
(Superseded to 75150-VK6-000)

Note: Use up to Engine SN 1101679.

$106.99

$

In Stock, only 2 left!

0

13

Honda 75150-VK6-000

SEE PART DETAILS - PRI; DISK, DRIVEN

Note: Use up to Engine SN 1101679.

$106.99

$

In Stock, only 2 left!

0

14

Honda 75182-VA3-J00

SPRING, CLUTCH RETURN (53.0MM)

Note: Use up to Engine SN 1101679.

$7.99

$

In Stock, only 2 left!

0

15

Honda 75183-VA3-J00

SPRING, CLUTCH (36.6MM)

Note: Use up to Engine SN 1101679.

$18.99

$

In Stock, only 2 left!

0

16

Honda 90014-952-000

BOLT, FLANGE (6X14) (CT200)

Note: Use up to Engine SN 1101679.

$3.49

$

In Stock, Qty 19

0

17

Honda 90021-VA4-000

BOLT, SPECIAL (6MM)

Note: Use up to Engine SN 1101679.

$6.49

$

In Stock, only 4 left!

0

18

Honda 90105-VA3-J01

SEE PART DETAILS - PRI; BOLT, HEX. (10X25)

Note: Use up to Engine SN 1101679.

$2.49

$

In Stock, Qty 20+

0

18

Honda 90105-960-003

SEE PART DETAILS - SUP; BOLT, HEX. (10X25)
(Superseded to 90105-VA3-J01)

Note: Use up to Engine SN 1101679.

$2.49

$

In Stock, Qty 20+

0

19

Honda 90409-952-000

WASHER (10MM)

Note: Use up to Engine SN 1101679.

$3.49

$

In Stock, only 2 left!

0

20

Honda 90501-952-010

SEE PART DETAILS - PRI; WASHER, THRUST

Note: Use up to Engine SN 1101679.

$5.99

$

In Stock, Qty 9

0

21

Honda 91102-VA4-013

BEARING, RADIAL BALL (6204)

Note: Use up to Engine SN 1101679.

$27.99

$

In Stock, only 4 left!

0

22

Honda 91103-VA4-003

BEARING, RADIAL BALL (60/22)

Note: Use up to Engine SN 1101679.

$20.99

$

In Stock, only 2 left!

0

23

Honda 94401-16150

KEY, WOODRUFF (16X15)

Note: Use up to Engine SN 1101679.

$1.99

$

In Stock, only 2 left!

0
