GXV160 UH2 SFL2 (GJABH) - Honda Engine, Made in China (SN: GJABH-1000001 - GJABH-2003435) CARBURETOR Parts Diagram

Engine, Made in China

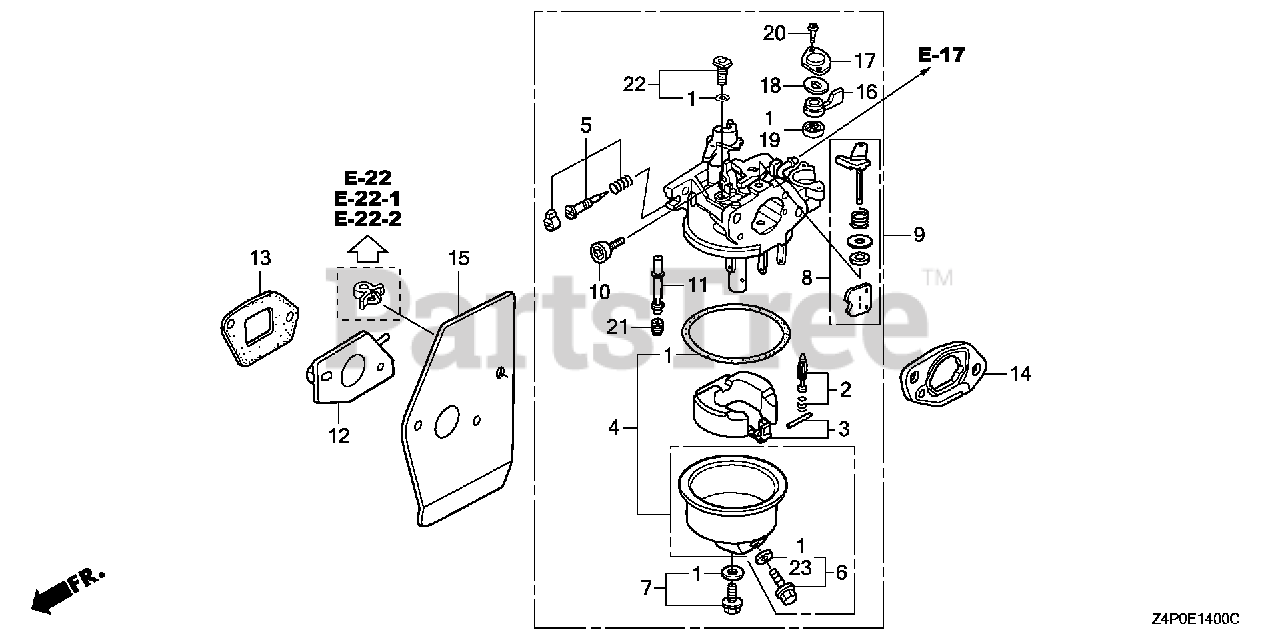

CARBURETOR Parts Diagram

  • Title

1

Honda 16010-ZE0-025

SEE PART DETAILS - PRI; GASKET SET (CARBURETOR NO.)

$22.99

$

In Stock, only 3 left!

0

2

Honda 16011-ZE0-005

VALVE SET, FLOAT (SEAT NOT INCLUDED)

$33.99

$

In Stock, Qty 9

0

3

Honda 16013-Z0S-B01

FLOAT SET (CARBURETOR NO.)

$36.99

$

In Stock, only 1 left!

0

4

Honda 16015-ZE0-831

CHAMBER SET, FLOAT (CARBURETOR NO.)

$42.99

$

In Stock, only 3 left!

0

5

Honda 16016-ZH7-W01

SCREW SET, PILOT

$23.99

$

In Stock, only 2 left!

0

6

Honda 16024-ZE1-811

SCREW SET, DRAIN (CARBURETOR NO.)

$12.99

$

In Stock, only 1 left!

0

7

Honda 16028-ZE0-005

SEE PART DETAILS - SUP; SCREW SET
(Superseded to 16028-ZK7-S91)

$15.99

$

In Stock, only 3 left!

0

7

Honda 16028-ZK7-S91

SEE PART DETAILS - PRI; SCREW SET

$15.99

$

In Stock, only 3 left!

0

8

Honda 16045-Z1V-G01

CHOKE SET (CARBURETOR NO.)

$32.99

$

Usually ships in 3-6 days

0

9

Honda 16100-Z1V-801

CARBURETOR ASSY. (BE66N A)
(Superseded to 16100-Z1V-802)

$148.99

$

In Stock, Qty 7

0

9

Honda 16100-Z4P-801

CARBURETOR ASSY. (BEA2C A)

Note: Use from Engine SN 1274134.

$116.99

$

In Stock, only 2 left!

0

10

Honda 16124-ZE0-005

SCREW, THROTTLE STOP

$20.99

$

In Stock, only 2 left!

0

11

Honda 16166-Z1V-801

NOZZLE, MAIN (CARBURETOR NO.)

$23.99

$

Usually ships in 3-6 days

0

12

Honda 16211-ZE7-000

INSULATOR, CARBURETOR

$18.99

$

In Stock, only 1 left!

0

13

Honda 16212-ZE7-M10

GASKET, INSULATOR

$3.99

$

In Stock, only 2 left!

0

14

Honda 16220-ZE6-010

SEE PART DETAILS - PRI; SPACER, CARBURETOR

$9.99

$

In Stock, Qty 11

0

15

Honda 16221-ZE7-M11

GASKET, CARBURETOR

$19.99

$

In Stock, only 4 left!

0

16

Honda 16953-ZE1-812

LEVER, PETCOCK

$11.99

$

In Stock, only 2 left!

0

17

Honda 16954-ZE1-812

PLATE, LEVER SETTING

$4.99

$

In Stock, only 2 left!

0

18

Honda 16956-ZE1-811

SEE PART DETAILS - PRI; SPRING, PETCOCK LEVER

$4.99

$

In Stock, Qty 7

0

19

Honda 16957-ZE1-812

SEE PART DETAILS - PRI; GASKET, PETCOCK

$4.99

$

In Stock, Qty 5

0

20

Honda 93500-03006-0H

SCREW, PAN (3X6)

$1.49

$

In Stock, Qty 9

0

21

Honda 99101-ZK7-0620

JET, MAIN (#62)

Note: (Optional).

$11.99

$

Usually ships in 3-6 days

0

21

Honda 99101-ZK7-0650

JET, MAIN (#65)

Note: (Optional).

$8.49

$

In Stock, only 2 left!

0

21

Honda 99101-ZK7-0680

JET, MAIN (#68)

$9.49

$

Usually ships in 3-6 days

0

22

Honda 99204-ZE0-0350

JET SET, PILOT (#35)

$26.99

$

In Stock, only 3 left!

0
