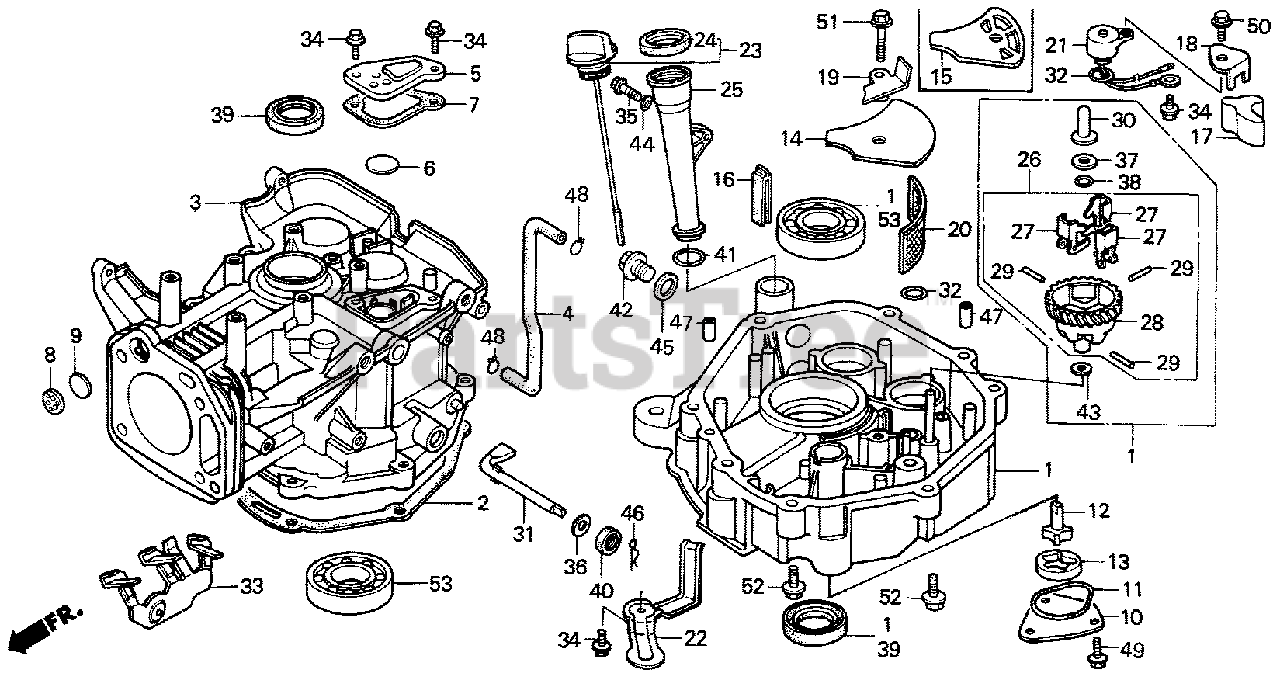

GXV270 DA3 (GJ01) - Honda Engine, Made in Japan (SN: GJ01-1000001 - GJ01-1034654) OIL PAN + CYLINDER Parts Diagram

Engine, Made in Japan

OIL PAN + CYLINDER Parts Diagram

  • Title

NI

Honda 06165-ZE8-000

GOVERNOR KIT (Honda Code 3313699).

$19.99

$

Usually ships in 3-6 days

0

1

Honda 113A0-ZE8-810

PAN ASSY., OIL (Honda Code 2484921).

$365.99

$

Usually ships in 3-6 days

0

2

Honda 11381-ZE9-306

SEE PART DETAILS - SUP; GASKET, OIL PAN (Honda Code 4428223).
(Superseded to 11381-ZE9-801)

$15.99

$

Usually ships in 3-6 days

0

2

Honda 11381-ZE9-800

SEE PART DETAILS - SUP; GASKET, OIL PAN (Honda Code 4145660).
(Superseded to 11381-ZE9-801)

$15.99

$

Usually ships in 3-6 days

0

2

Honda 11381-ZE9-801

SEE PART DETAILS - PRI; GASKET, OIL PAN (Honda Code 6495758).

$15.99

$

Usually ships in 3-6 days

0

3

Honda 121A0-ZE8-010

CYLINDER (Honda Code 2461648).

Note: Use up to Engine SN 1044840.

$

$

Not available

3

Honda 121A0-ZE8-020

CYLINDER (Honda Code 2608636).

Note: Use from Engine SN 1044841.

$

$

Not available

4

Honda 12315-ZE8-010

SEE PART DETAILS - PRI; TUBE, BREATHER (Honda Code 2324010).

$

$

Currently unavailable

5

Honda 12370-ZE8-000

CAP, BREATHER CHAMBER (Honda Code 2089639).

$

$

Not available

6

Honda 12372-ZE2-300

VALVE, BREATHER (Honda Code 2061620).

$3.99

$

In Stock, Qty 9

0

7

Honda 12373-ZE8-000

GASKET, BREATHER CAP (Honda Code 2089647).

$3.49

$

Usually ships in 3-6 days

0

8

Honda 12375-ZE8-010

SEE PART DETAILS - PRI; PLATE, ONE-WAY VALVE (Honda Code 2489680).

$

$

Not available

9

Honda 12376-ZE8-000

VALVE, ONE-WAY (Honda Code 2089662).

$2.49

$

Usually ships in 3-6 days

0

10

Honda 15130-ZE8-000

COVER, OIL PUMP (Honda Code 2089886).

$9.99

$

Usually ships in 3-6 days

0

11

Honda 15131-ZE9-003

O-RING, PUMP COVER (Honda Code 2278331).

$3.99

$

In Stock, Qty 5

0

12

Honda 15330-ZE8-000

ROTOR (INNER) (Honda Code 2089902).

$21.99

$

Usually ships in 3-6 days

0

13

Honda 15332-891-003

ROTOR, OIL PUMP (OUTER) (Honda Code 0800219).

$17.99

$

Usually ships in 3-6 days

0

15

Honda 15334-ZE8-811

PLATE, OIL FILTER (Honda Code 2577294).

$8.49

$

Usually ships in 3-6 days

0

16

Honda 15335-ZE9-000

RUBBER, OIL RETURN (Honda Code 2278349).

$5.49

$

Usually ships in 3-6 days

0

17

Honda 15336-ZE8-000

STOPPER, OIL (Honda Code 2485043).

$5.49

$

Usually ships in 3-6 days

0

18

Honda 15337-ZE8-000

PLATE, OIL STOPPER (Honda Code 2485050).

$5.49

$

Usually ships in 3-6 days

0

19

Honda 15420-ZE8-000

PLATE, SUCTION (Honda Code 2461663).

$8.49

$

Usually ships in 3-6 days

0

20

Honda 15421-ZE9-003

SCREEN, OIL FILTER (Honda Code 2608644).

Note: Use from Engine SN 1044841.

$14.99

$

In Stock, only 1 left!

0

20

Honda 15421-ZE9-003

SCREEN, OIL FILTER (Honda Code 2608644).

Note: Use up to Engine SN 1044840.

$14.99

$

In Stock, only 1 left!

0

21

Honda 35410-ZF5-013

SEE PART DETAILS - PRI; SWITCH, OIL LEVEL (Honda Code 7100449).

$63.99

$

Usually ships in 3-6 days

0

22

Honda 15519-ZE8-000

PROTECTOR, SWITCH (Honda Code 2461697).

$

$

Not available

23

Honda 15600-ZE8-000

CAP ASSY., OIL FILLER (Honda Code 2089951).

$

$

Not available

23

Honda 15600-ZE8-010

CAP ASSY., OIL FILLER (Honda Code 2485068).

$

$

Not available

24

Honda 15625-ZE8-000

GASKET, OIL FILLER CAP (Honda Code 2089969).

$4.99

$

In Stock, Qty 5

0

25

Honda 15630-ZE8-000

EXTENSION, OIL FILLER (Honda Code 2089977).
(Superseded to 15630-Z5N-800)

$5.49

$

In Stock, Qty 7

0

26

Honda 16510-ZE8-000

GOVERNOR ASSY. (Honda Code 2278521).

$

$

Not available

27

Honda 16511-ZE8-000

WEIGHT, GOVERNOR (Honda Code 2090090).

$7.49

$

Usually ships in 3-6 days

0

28

Honda 16512-ZE2-000

HOLDER, GOVERNOR WEIGHT (Honda Code 2106219).

$17.99

$

Usually ships in 3-6 days

0

29

Honda 16513-ZE2-000

PIN, GOVERNOR WEIGHT (Honda Code 2025971).

$2.49

$

Usually ships in 3-6 days

0

30

Honda 16531-ZE2-000

SEE PART DETAILS - SUP; SLIDER, GOVERNOR (Honda Code 2025989).
(Superseded to 16531-Z0A-000)

$3.49

$

In Stock, Qty 6

0

30

Honda 16531-Z0A-000

SEE PART DETAILS - PRI; SLIDER, GOVERNOR (Honda Code 6605117).

$3.49

$

In Stock, Qty 6

0

31

Honda 16541-ZE8-010

SHAFT, GOVERNOR ARM (Honda Code 4751293).

$13.99

$

Usually ships in 3-6 days

0

32

Honda 91302-ZE9-003

O-RING (11.8X2.4) (Honda Code 2461705).

$2.99

$

Usually ships in 3-6 days

0

33

Honda 30615-ZE8-000

STAY, SWITCH WIRE CLAMP (Honda Code 2110252).

$

$

Currently unavailable

34

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845).

$1.99

$

In Stock, Qty 20+

0

35

Honda 90014-ZE6-000

BOLT, FLANGE (6X35) (Honda Code 1688076).

$2.49

$

In Stock, Qty 6

0

36

Honda 90406-VM6-000

WASHER, THRUST (8.1MM) (Honda Code 1806934).

$3.49

$

Usually ships in 3-6 days

0

37

Honda 90473-147-000

SEE PART DETAILS - PRI; WASHER (6X16) (Honda Code 0465591).

$1.99

$

In Stock, only 2 left!

0

38

Honda 90602-ZE1-000

SEE PART DETAILS - PRI; CLIP, GOVERNOR HOLDER (Honda Code 2456697).

$1.99

$

In Stock, Qty 12

0

38

Honda 90602-896-000

SEE PART DETAILS - SUP; CLIP, GOVERNOR HOLDER (Honda Code 0928101).

$1.99

$

Usually ships in 3-6 days

0

39

Honda 91201-890-003

OIL SEAL (30X46X8) (Honda Code 0756494).

$10.99

$

In Stock, Qty 7

0

40

Honda 91201-ZE9-003

SEE PART DETAILS - PRI; OIL SEAL (8X14X5) (Honda Code 2461713).

$4.99

$

In Stock, only 2 left!

0

41

Honda 91301-ZE9-003

O-RING (22.5X2.2) (Honda Code 2280006).

$2.49

$

In Stock, Qty 13

0

42

Honda 92800-20000

BOLT, DRAIN PLUG (20MM) (Honda Code 0209635).

$6.99

$

In Stock, only 1 left!

0

43

Honda 94101-06800

WASHER, PLAIN (6MM) (Honda Code 0345900).

$0.99

$

In Stock, Qty 20+

0

44

Honda 94103-06700

WASHER, PLAIN (6MM) (Honda Code 0622324).

$0.99

$

In Stock, Qty 5

0

45

Honda 94109-20000

WASHER, DRAIN PLUG (20MM) (Honda Code 0251728).

$1.99

$

In Stock, Qty 10

0

46

Honda 94251-08000

PIN, LOCK (8MM) (Honda Code 0115527).

$1.49

$

In Stock, Qty 20+

0

47

Honda 94301-08140

PIN A, DOWEL (8X14) (Honda Code 0069310).

$2.99

$

In Stock, Qty 14

0

48

Honda 95002-70000

CLIP, TUBE (C11) (Honda Code 0053595).

$1.99

$

In Stock, Qty 20+

0

49

Honda 95700-06012-00

BOLT, FLANGE (6X12) (Honda Code 0487025).

$

$

Not available

49

Honda 95701-06012-00

BOLT, FLANGE (6X12) (Honda Code 2105799).

$1.99

$

In Stock, Qty 20+

0

50

Honda 95701-06016-00

BOLT, FLANGE (6X16) (Honda Code 2410892).

$1.99

$

In Stock, Qty 20+

0

51

Honda 95700-06025-00

SEE PART DETAILS - SUP; BOLT, FLANGE (6X25) (Honda Code 0484485).

$

$

Currently unavailable

51

Honda 95701-06025-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X25) (Honda Code 2105831).

$2.49

$

In Stock, Qty 14

0

52

Honda 95701-08040-08

BOLT, FLANGE (8X40) (Honda Code 2374775).

$2.99

$

Usually ships in 3-6 days

0

53

Honda 96100-62060-00

BEARING, RADIAL BALL (6206) (Honda Code 0636118).

$28.99

$

Usually ships in 3-6 days
