GXV270 DAP5 (GJ01) - Honda Engine, Made in Japan (SN: GJ01-1000001 - GJ01-1034654) STARTER MOTOR (2) Parts Diagram

Engine, Made in Japan

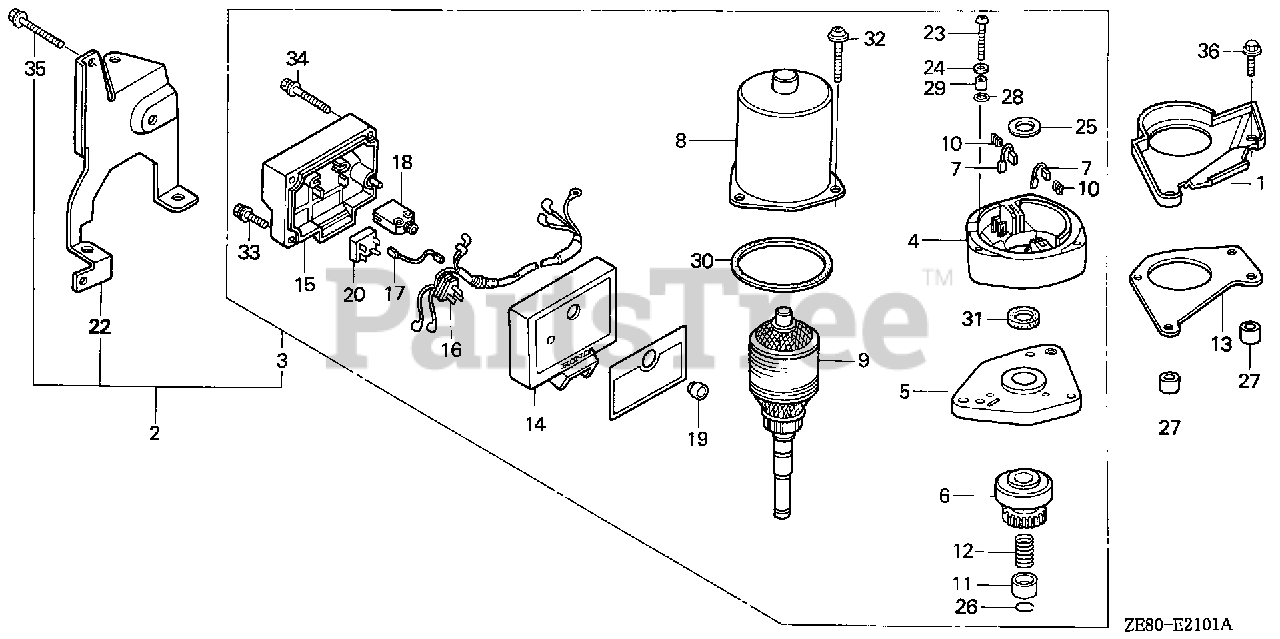

STARTER MOTOR (2) Parts Diagram

  • Title

1

Honda 19611-ZE8-810

PLATE, SIDE

$20.99

$

Usually ships in 3-6 days

0

2

Honda 31200-ZE8-811

STARTER MOTOR ASSY. (NOT AVAILABLE)

$

$

Currently unavailable

3

Honda 31210-ZE8-811

STARTER MOTOR ASSY. (NOT AVAILABLE)

$

$

Currently unavailable

4

Honda 31211-ZE8-811

HOUSING, CENTER

$131.99

$

Usually ships in 3-6 days

0

5

Honda 31212-ZE8-811

HOUSING, PINION

$

$

Not available

6

Honda 31214-ZE8-811

CLUTCH

$

$

Not available

7

Honda 31215-ZE1-821

BRUSH

$12.99

$

Usually ships in 3-6 days

0

8

Honda 31216-ZE8-811

YOKE

$88.99

$

Usually ships in 3-6 days

0

9

Honda 31217-ZE8-811

ARMATURE (NOT AVAILABLE)

$

$

Currently unavailable

10

Honda 31219-ZE1-821

SPRING, BRUSH RETURN

$4.49

$

Usually ships in 3-6 days

0

11

Honda 31221-ZE8-811

STOPPER, PINION

$70.99

$

Usually ships in 3-6 days

0

12

Honda 31223-ZE8-811

SPRING, COIL

$7.49

$

Usually ships in 3-6 days

0

13

Honda 31255-ZE8-810

BRACKET, STARTER MOTOR

$

$

Not available

14

Honda 31601-ZE1-821

COVER

$21.99

$

Usually ships in 3-6 days

0

15

Honda 31602-ZE1-821

CASE

$20.99

$

Usually ships in 3-6 days

0

16

Honda 31605-ZE8-811

WIRE

$86.99

$

Usually ships in 3-6 days

0

17

Honda 31606-ZE1-781

SUB-WIRE

$14.99

$

Usually ships in 3-6 days

0

18

Honda 31611-ZE1-781

SWITCH, STARTER (A.C. 380V/16A)

$73.99

$

Usually ships in 3-6 days

0

18

Honda 31611-ZE1-822

SWITCH, STARTER (A.C. 250V/16A)

$73.99

$

Usually ships in 3-6 days

0

19

Honda 31612-ZE1-781

CAP

$9.49

$

Usually ships in 3-6 days

0

20

Honda 31614-ZE1-781

DIODE

$97.99

$

Usually ships in 3-6 days

0

22

Honda 31617-ZE8-810

BRACKET, SWITCH BOX

$

$

Not available

23

Honda 90101-ZE1-821

SCREW, TRUSS (4X30)

$3.49

$

Usually ships in 3-6 days

0

24

Honda 90401-ZE1-821

WASHER, STAR (4MM)

$2.49

$

Usually ships in 3-6 days

0

25

Honda 90403-ZE8-811

WASHER B

$

$

Not available

26

Honda 90602-ZE8-811

RING, RETAINING

$2.49

$

Usually ships in 3-6 days

0

27

Honda 94301-10140

PIN A, DOWEL (10X14)

$3.49

$

Usually ships in 3-6 days

0

28

Honda 91301-ZE1-821

O-RING

$2.49

$

Usually ships in 3-6 days

0

29

Honda 91502-ZE1-821

COLLAR

$3.99

$

Usually ships in 3-6 days

0

30

Honda 91601-ZE1-821

GASKET

$7.99

$

Usually ships in 3-6 days

0

31

Honda 91602-ZE8-811

OIL SEAL

$7.99

$

Usually ships in 3-6 days

0

32

Honda 93892-05040-18

SCREW-WASHER (5X40)

$

$

Currently unavailable

33

Honda 93893-04020-08

SCREW-WASHER (4X20)

$1.49

$

Usually ships in 3-6 days

0

34

Honda 93893-04030-18

SCREW-WASHER (4X30)

$1.49

$

Usually ships in 3-6 days

0

35

Honda 95701-06040-08

BOLT, FLANGE (6X40)

$2.49

$

Usually ships in 3-6 days

0

36

Honda 95801-08028-00

BOLT, FLANGE (8X28)

$2.49

$

Usually ships in 3-6 days

0
