GXV340 A2 DA2 (GJADA) - Honda Engine, Made in USA (SN: GJADA-1000001 - GJADA-9999999) RECOIL STARTER (1) Parts Diagram
Engine, Made in USA

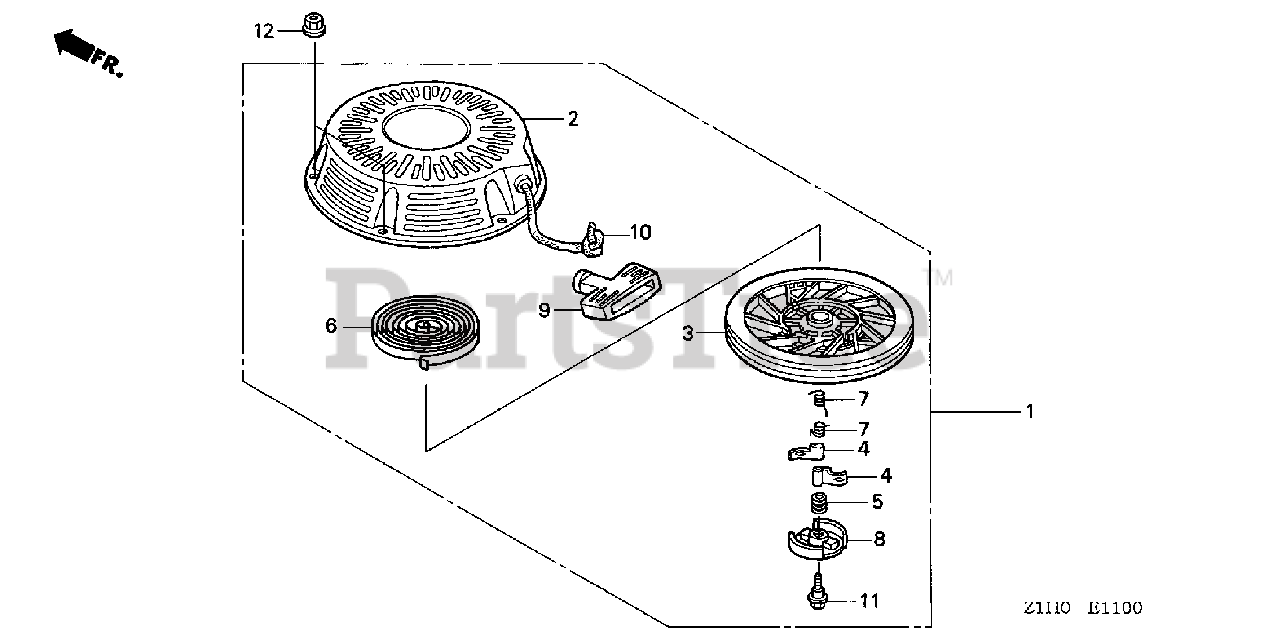

RECOIL STARTER (1) Parts Diagram
Honda 28400-ZE3-W01ZP
SEE PART DETAILS - SUP; STARTER ASSY., RECOIL *R280* (POWER RED)
(Superseded to 28400-ZE3-W02ZP)
$159.99
$
Usually ships in 3-6 days
Honda 28410-ZE3-W01ZP
SEE PART DETAILS - PRI; CASE, RECOIL STARTER *R280* (POWER RED)
$121.99
$
Usually ships in 3-6 days
Honda 28421-ZE3-W01
PULLEY, RECOIL STARTER
$41.99
$
In Stock, only 1 left!
Honda 28422-ZE2-W01
RATCHET, STARTER
$6.99
$
In Stock, only 4 left!
Honda 28441-ZE2-W01
SPRING, FRICTION
$5.99
$
In Stock, Qty 5
Honda 28442-ZE2-W01
SPRING, STARTER RETURN
$17.99
$
In Stock, Qty 6
Honda 28443-ZE2-W01
SPRING, RATCHET
$4.99
$
In Stock, Qty 5
Honda 28444-ZE2-W01
RETAINER, SPRING
$13.99
$
Usually ships in 3-6 days
$7.49
$
In Stock, Qty 5
Honda 28462-ZE3-W01
ROPE, RECOIL STARTER
$13.99
$
In Stock, only 1 left!
Honda 90004-ZE2-W01
SCREW, CENTER
$3.99
$
In Stock, only 1 left!
Honda 94050-06000
NUT, FLANGE (6MM)
$0.99
$
In Stock, Qty 20+
