GXV340 DAE2 (GJ02) - Honda Engine, Made in Japan (SN: GJ02-1000001 - GJ02-1009980) CRANKSHAFT + PISTON Parts Diagram

Engine, Made in Japan

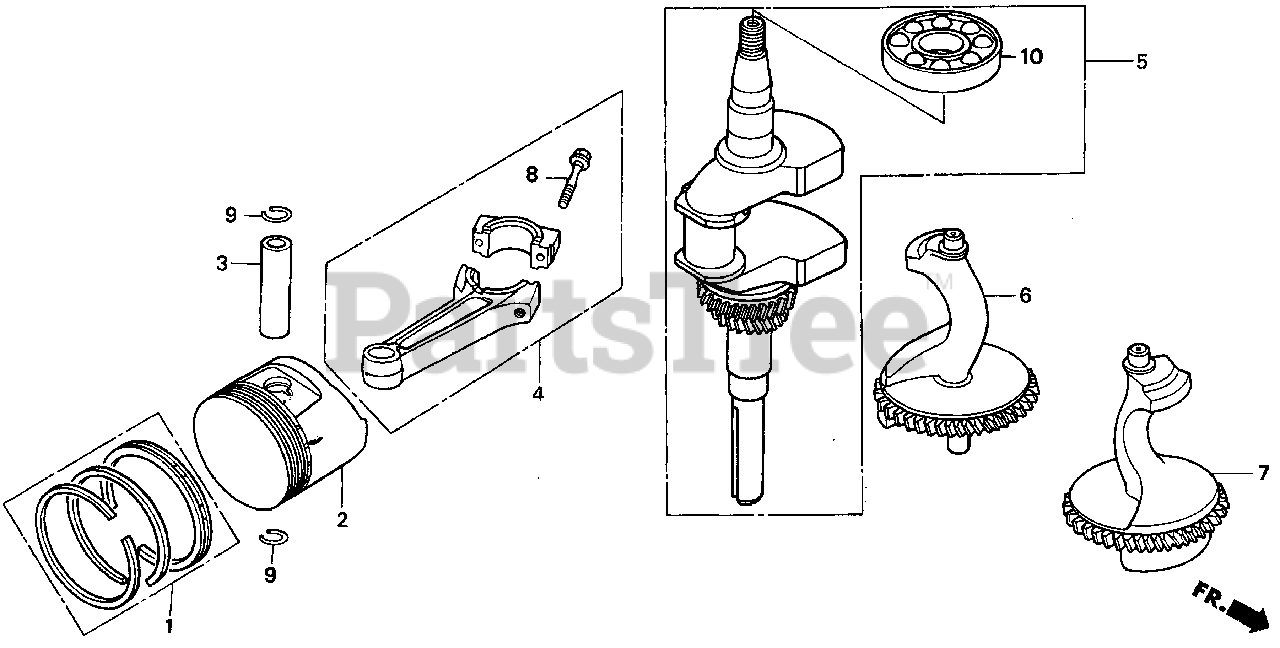

CRANKSHAFT + PISTON Parts Diagram

  • Title

1

Honda 13010-ZE3-003

SEE PART DETAILS - PRI; RING SET, PISTON (STD) (Honda Code 2278182).

$52.99

$

In Stock, only 1 left!

0

1

Honda 13011-ZE3-003

SEE PART DETAILS - PRI; RING SET, PISTON (OS 0.25) (Honda Code 2278208).

Note: (Optional).

$84.99

$

Usually ships in 3-6 days

0

1

Honda 13012-ZE3-003

SEE PART DETAILS - PRI; RING SET, PISTON (OS 0.50) (Honda Code 2278224).

Note: (Optional).

$75.99

$

Usually ships in 3-6 days

0

1

Honda 13013-ZE3-003

SEE PART DETAILS - PRI; RING SET, PISTON (0.75) (Honda Code 2278240).

Note: (Optional).

$

$

Not available

2

Honda 13101-ZE3-000

PISTON (STD) (Honda Code 2107688).

$

$

Not available

2

Honda 13102-ZE3-000

PISTON (OS 0.25) (Honda Code 2278265).

Note: (Optional).

$128.99

$

Usually ships in 3-6 days

0

2

Honda 13103-ZE3-000

PISTON (OS 0.50) (Honda Code 2278273).

Note: (Optional).

$

$

Not available

2

Honda 13104-ZE3-000

PISTON (0.75) (Honda Code 2278281).

Note: (Optional).

$

$

Not available

3

Honda 13111-ZF6-000

SEE PART DETAILS - PRI; PIN, PISTON (Honda Code 3134434).

$17.99

$

In Stock, only 2 left!

0

4

Honda 13200-ZE9-010

SEE PART DETAILS - SUP; ROD ASSY., CONNECTING (Honda Code 2879948).
(Superseded to 13200-Z1E-000)

$167.99

$

In Stock, only 1 left!

0

4

Honda 13200-ZE9-315

SEE PART DETAILS - PRI; ROD ASSY., CONNECTING (US 0.25) (Honda Code 2953107).

Note: (Optional).

$

$

Not available

5

Honda 13310-ZE9-000

CRANKSHAFT (Honda Code 2271245).

$

$

Not available

6

Honda 13351-ZE9-000

WEIGHT A, BALANCER (Honda Code 2271252).

$

$

Not available

7

Honda 13356-ZE9-000

WEIGHT B, BALANCER (Honda Code 2271260).

$

$

Not available

8

Honda 90001-ZE8-000

BOLT, CONNECTING ROD (Honda Code 2160489).

$4.99

$

In Stock, only 4 left!

0

9

Honda 90601-ZE3-000

CLIP, PISTON PIN (20MM) (Honda Code 2108579).

$2.99

$

In Stock, Qty 20+

0

10

Honda 96100-62070-00

BEARING, RADIAL BALL (6207) (Honda Code 0997320).

$60.99

$

In Stock, only 2 left!

0
