GXV340 DAP2 (GJ02) - Honda Engine, Made in Japan (SN: GJ02-1000001 - GJ02-1009980) AIR CLEANER Parts Diagram

Engine, Made in Japan

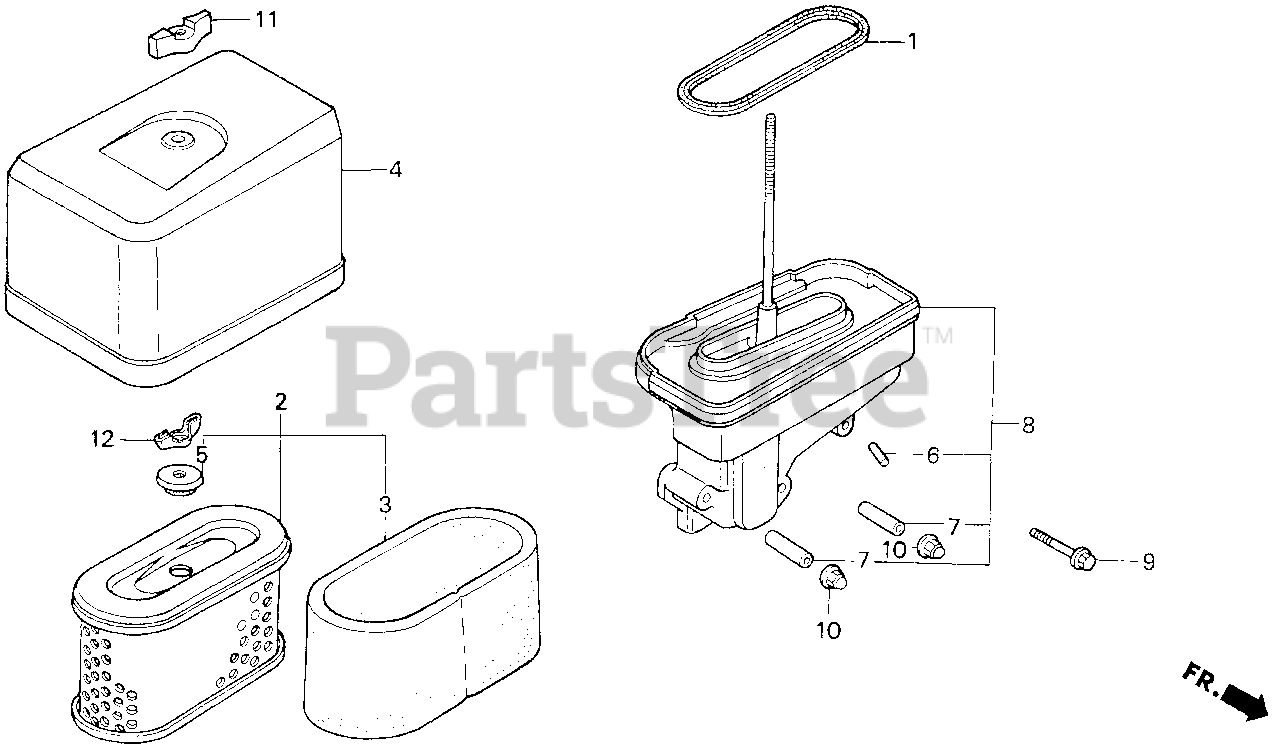

AIR CLEANER Parts Diagram

  • Title

1

Honda 16271-ZE8-000

GASKET, ELBOW (Honda Code 2090082).

$5.49

$

In Stock, only 2 left!

0

2

Honda 17210-ZE8-013

SEE PART DETAILS - PRI; ELEMENT, AIR CLEANER (Honda Code 2910727).

$

$

Not available

2

Honda 17210-ZF5-505

SEE PART DETAILS - PRI; ELEMENT, AIR CLEANER (METAL BASE) (Honda Code 5248299).
(Superseded to 17210-ZF5-010)

$37.99

$

In Stock, only 1 left!

0

3

Honda 17218-ZE8-003

SEE PART DETAILS - SUP; FILTER (OUTER) (Honda Code 2536084).

$

$

Not available

3

Honda 17218-ZF5-505

SEE PART DETAILS - PRI; FILTER (OUTER) (Honda Code 5183777).
(Superseded to 17218-ZF5-305)

$9.49

$

In Stock, only 2 left!

0

4

Honda 17230-ZE8-013

SEE PART DETAILS - PRI; COVER, AIR CLEANER (DUAL) (Honda Code 2485175).

$42.99

$

Usually ships in 3-6 days

0

4

Honda 17230-ZE8-013

SEE PART DETAILS - PRI; COVER, AIR CLEANER (DUAL) (Honda Code 2485175).

Note: Use up to Engine SN 1035689.

$42.99

$

Usually ships in 3-6 days

0

4

Honda 17230-ZE8-900

COVER, AIR CLEANER (DUAL) (Honda Code 2832020).
(Superseded to 17230-ZE8-901)

Note: Use from Engine SN 1035690.

$45.99

$

Usually ships in 3-6 days

0

5

Honda 17232-891-000

GROMMET, AIR CLEANER (Honda Code 0999763).

$6.99

$

In Stock, Qty 20+

0

6

Honda 17238-ZE1-000

COLLAR, AIR CLEANER (Honda Code 1427525).

$6.49

$

Usually ships in 3-6 days

0

7

Honda 17238-ZE2-300

SEE PART DETAILS - SUP; COLLAR, AIR CLEANER (Honda Code 2026128).

Note: Use up to Engine SN 1011230.

$

$

Currently unavailable

7

Honda 17238-ZE2-310

SEE PART DETAILS - PRI; COLLAR, AIR CLEANER (Honda Code 2384105).

$5.49

$

In Stock, only 2 left!

0

8

Honda 04101-ZE8-000

SEE PART DETAILS - PRI; ELBOW SET, AIR CLEANER (Honda Code 2483675).

$

$

Not available

8

Honda 17410-ZE8-013

ELBOW, AIR CLEANER (Honda Code 2485209).

Note: Use up to Engine SN 1035689.

$53.99

$

Usually ships in 3-6 days

0

8

Honda 17410-ZE8-900

ELBOW, AIR CLEANER (Honda Code 2832038).
(Superseded to 17410-ZE8-901)

Note: Use from Engine SN 1035690.

$34.99

$

Usually ships in 3-6 days

0

9

Honda 90014-ZE6-000

BOLT, FLANGE (6X35) (Honda Code 1688076).

$2.99

$

In Stock, Qty 6

0

10

Honda 90201-415-000

NUT, CAP (6MM) (Honda Code 0670729).

$3.49

$

In Stock, only 2 left!

0

11

Honda 90301-ZV0-000

WINGNUT (Honda Code 1816461).
(Superseded to 90301-ZVA-000)

$10.99

$

Usually ships in 3-6 days

0

12

Honda 90325-044-000

SEE PART DETAILS - PRI; WINGNUT, TOOL BOX SETTING (Honda Code 0127720).

$6.49

$

In Stock, Qty 20+

0
