GXV340 DAP2 (GJ02) - Honda Engine, Made in Japan (SN: GJ02-1000001 - GJ02-1009980) CONTROL Parts Diagram

Engine, Made in Japan

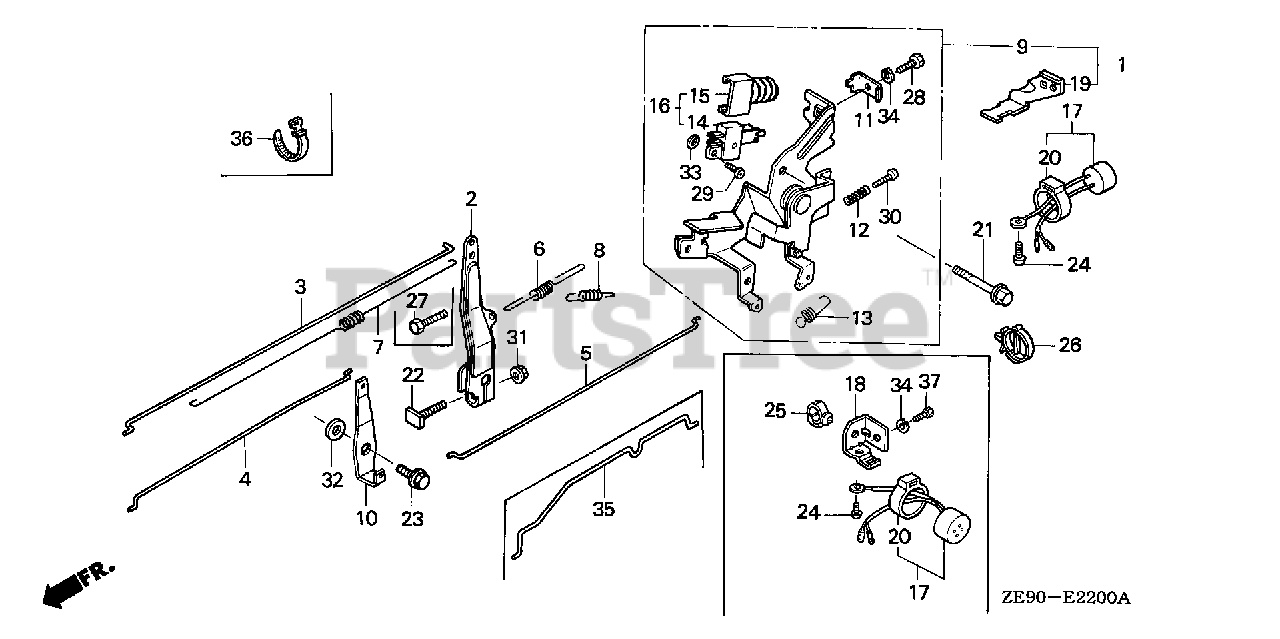

CONTROL Parts Diagram

  • Title

2

Honda 16551-ZE8-000

ARM, GOVERNOR (NOT AVAILABLE)

$

$

Not available

3

Honda 16555-ZE9-000

ROD, GOVERNOR

$4.99

$

In Stock, only 1 left!

0

4

Honda 16556-ZE9-000

ROD, CHOKE

$3.99

$

In Stock, only 1 left!

0

5

Honda 16557-ZE8-000

ROD, JOINT

Note: Use up to Engine SN 1019388.

$3.99

$

Usually ships in 3-6 days

0

6

Honda 16561-ZE9-010

SPRING, GOVERNOR (NOT AVAILABLE)

$

$

Not available

8

Honda 16563-ZE8-000

SPRING, GOVERNOR PRIMARY

$

$

Not available

9

Honda 16570-ZE8-810

CONTROL ASSY.

Note: Use up to Engine SN 1036707.

$

$

Currently unavailable

9

Honda 16570-ZE8-820

CONTROL ASSY. (NOT AVAILABLE)

Note: Use from Engine SN 1036708.

$

$

Currently unavailable

10

Honda 16575-ZE8-000

LEVER, CHOKE JOINT (NOT AVAILABLE)

$

$

Currently unavailable

11

Honda 16576-891-000

HOLDER, CABLE

$4.99

$

In Stock, only 2 left!

0

12

Honda 16584-883-300

SPRING, CONTROL ADJUSTING

$4.99

$

In Stock, only 1 left!

0

13

Honda 16592-ZE1-810

SPRING, CABLE RETURN

Note: Use up to Engine SN 1010250.

$2.49

$

In Stock, Qty 12

0

13

Honda 16592-732-700

SPRING, CABLE RETURN

Note: Use from Engine SN 1010251.

$4.99

$

In Stock, only 2 left!

0

14

Honda 35330-ZG1-751

SWITCH ASSY., ENGINE

$21.99

$

Usually ships in 3-6 days

0

15

Honda 35336-750-003

COVER, SWITCH

$5.49

$

In Stock, only 1 left!

0

16

Honda 36100-ZE8-003

SWITCH ASSY., ENGINE STOP

$25.99

$

Usually ships in 3-6 days

0

17

Honda 38400-ZE8-003

BUZZER ASSY.

$70.99

$

Usually ships in 3-6 days

0

18

Honda 38401-ZE8-000

STAY, BUZZER

Note: Use up to Engine SN 1019388.

$6.99

$

Usually ships in 3-6 days

0

19

Honda 38401-ZE8-810

STAY, BUZZER

Note: Use from Engine SN 1019389.

$6.99

$

Usually ships in 3-6 days

0

20

Honda 38402-GC1-000

SUSPENSION, AUDIBLE PILOT

$8.49

$

Usually ships in 3-6 days

0

21

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

$1.99

$

In Stock, Qty 13

0

22

Honda 90015-ZE5-010

BOLT, GOVERNOR ARM

Note: Use from Engine SN 1035471.

$2.99

$

In Stock, only 1 left!

0

23

Honda 90015-ZE8-000

BOLT, FLANGE (6MM)

$2.99

$

In Stock, only 1 left!

0

24

Honda 90050-ZE1-000

SCREW, TAPPING (5X8)

$1.99

$

In Stock, Qty 20+

0

25

Honda 90683-SA0-003

CLIP, WIRE HARNESS (25MM)

Note: Use up to Engine SN 1019388.

$11.99

$

Usually ships in 3-6 days

0

26

Honda 90684-ZA0-601

CLIP, HARNESS

Note: Use from Engine SN 1019389.

$4.49

$

Usually ships in 3-6 days

0

27

Honda 92101-06022-0A

BOLT, HEX. (6X22)

Note: Use up to Engine SN 1035470.

$1.99

$

Usually ships in 3-6 days

0

28

Honda 92301-05016-0A

BOLT, RECESSED (5X16)

$1.49

$

Usually ships in 3-6 days

0

29

Honda 93500-04014-0A

SCREW, PAN (4X14)

$0.99

$

In Stock, only 1 left!

0

30

Honda 93500-05020-0A

SCREW, PAN (5X20)

$0.99

$

Usually ships in 3-6 days

0

31

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 20+

0

33

Honda 94111-04000

WASHER, SPRING (4MM)

$1.49

$

Usually ships in 3-6 days

0

34

Honda 94111-05000

WASHER, SPRING (5MM)

Note: Use up to Engine SN 1019388.

$1.49

$

Usually ships in 3-6 days

0

34

Honda 94111-05000

WASHER, SPRING (5MM)

Note: Use from Engine SN 1019389.

$1.49

$

Usually ships in 3-6 days

0

35

Honda 16557-ZE8-810

ROD, JOINT

Note: Use from Engine SN 1019389.

$3.99

$

In Stock, only 1 left!

0

36

Honda 32161-404-610

BAND B1, WIRE

$2.99

$

Usually ships in 3-6 days

0

37

Honda 92301-05016-0A

BOLT, RECESSED (5X16)

Note: Use up to Engine SN 1019388.

$1.49

$

Usually ships in 3-6 days

0
