GXV340 K1 DA (GJ02) - Honda Engine, Made in Japan (SN: GJ02-1100001 - GJ02-5999999) CARBURETOR Parts Diagram

Engine, Made in Japan

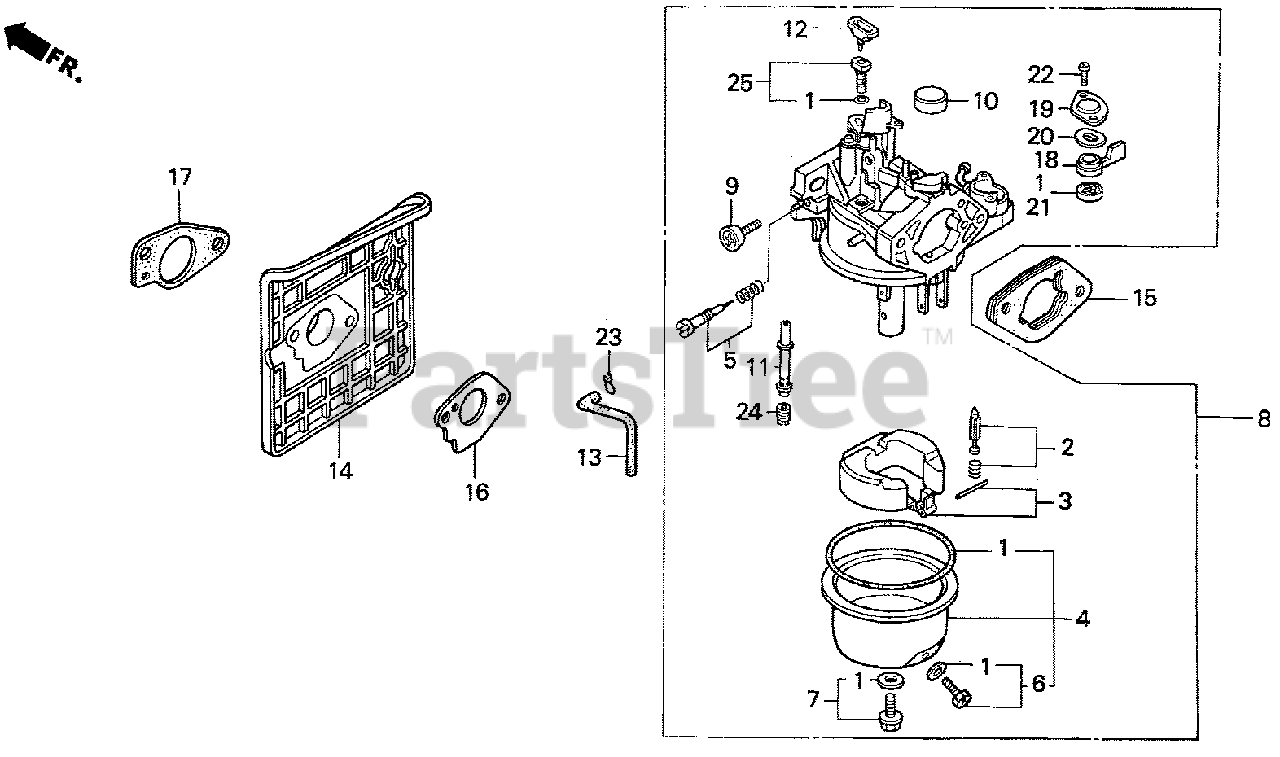

CARBURETOR Parts Diagram

  • Title

1

Honda 16010-ZE2-005

SEE PART DETAILS - SUP; GASKET SET (Honda Code 2089985).
(Superseded to 16010-ZE2-015)

Note: Use up to Engine SN BE35A C.

$22.99

$

In Stock, only 1 left!

0

1

Honda 16010-ZE2-015

SEE PART DETAILS - PRI; GASKET SET (Honda Code 3521176).

Note: Use up to Engine SN BE35A C.

$22.99

$

In Stock, only 1 left!

0

1

Honda 16010-ZE2-015

SEE PART DETAILS - PRI; GASKET SET (Honda Code 3521176).

Note: Use from Engine SN BE35A D.

$22.99

$

In Stock, only 1 left!

0

2

Honda 16011-ZA0-931

VALVE SET, FLOAT (Honda Code 2059236).

$50.99

$

In Stock, Qty 5

0

3

Honda 16013-ZA0-931

FLOAT SET (Honda Code 2059244).

$24.99

$

Usually ships in 3-6 days

0

4

Honda 16015-ZE8-005

SEE PART DETAILS - PRI; CHAMBER SET, FLOAT (Honda Code 2089993).

$51.99

$

In Stock, only 2 left!

0

5

Honda 16016-ZE0-005

SCREW SET, PILOT (Honda Code 1441500).

$17.99

$

Usually ships in 3-6 days

0

7

Honda 16028-ZE0-005

SEE PART DETAILS - PRI; SCREW SET B (Honda Code 1441518).
(Superseded to 16028-ZK7-S91)

$15.99

$

Usually ships in 3-6 days

0

8

Honda 16100-ZE9-015

SEE PART DETAILS - SUP; CARBURETOR ASSY. (Honda Code 2398774).
(Superseded to 16100-ZE9-035)

Note: Use up to Engine SN 1100434.

$

$

Not available

8

Honda 16100-ZE9-025

SEE PART DETAILS - SUP; CARBURETOR ASSY. (Honda Code 3131935).
(Superseded to 16100-ZE9-035)

Note: Use up to Engine SN 1100434.

$

$

Not available

8

Honda 16100-ZE9-025

SEE PART DETAILS - SUP; CARBURETOR ASSY. (Honda Code 3131935).
(Superseded to 16100-ZE9-035)

Note: Use from Engine SN 1100435 to 1116885.

$

$

Not available

8

Honda 16100-ZE9-035

SEE PART DETAILS - PRI; CARBURETOR ASSY. (Honda Code 3418118).

Note: Use up to Engine SN 1100434.

$

$

Not available

8

Honda 16100-ZE9-035

SEE PART DETAILS - PRI; CARBURETOR ASSY. (Honda Code 3418118).

Note: Use from Engine SN 1100435.

$

$

Not available

9

Honda 16124-ZE0-005

SCREW, THROTTLE STOP (Honda Code 1441559).

$20.99

$

In Stock, only 2 left!

0

10

Honda 16148-141-881

SEE PART DETAILS - PRI; CAP, CHOKE LEVER DUST (Honda Code 2110468).

$7.99

$

In Stock, only 1 left!

0

11

Honda 16166-ZE9-005

NOZZLE, MAIN (Honda Code 2271351).

$39.99

$

Usually ships in 3-6 days

0

13

Honda 16199-ZE8-000

TUBE, AIR VENT (75MM) (Honda Code 2278406).

$6.99

$

In Stock, only 2 left!

0

14

Honda 16211-ZE9-601

INSULATOR, CARBURETOR (Honda Code 3131950).

$25.99

$

Usually ships in 3-6 days

0

15

Honda 16220-ZA0-702

SEE PART DETAILS - PRI; SPACER, CARBURETOR (Honda Code 2686533).

$13.99

$

In Stock, Qty 20+

0

16

Honda 16221-ZE3-000

SEE PART DETAILS - SUP; GASKET, CARBURETOR (Honda Code 2107894). (NOT AVAILABLE)

Note: Use up to Engine SN 2057739.

$

$

Currently unavailable

16

Honda 16221-ZE3-306

SEE PART DETAILS - SUP; GASKET, CARBURETOR (Honda Code 4329900).
(Superseded to 16221-ZE3-800)

Note: Use up to Engine SN 2057739.

$3.49

$

In Stock, Qty 20+

0

16

Honda 16221-ZE3-800

SEE PART DETAILS - PRI; GASKET, CARBURETOR (Honda Code 3795358).

$3.49

$

In Stock, Qty 20+

0

17

Honda 16223-ZE9-000

SEE PART DETAILS - SUP; GASKET, INSULATOR (Honda Code 2271385). (NOT AVAILABLE)

Note: Use up to Engine SN 2057739.

$

$

Currently unavailable

17

Honda 16223-ZE9-800

SEE PART DETAILS - PRI; GASKET, INSULATOR (Honda Code 4145777).

$3.49

$

In Stock, Qty 13

0

18

Honda 16953-ZE1-712

LEVER, VALVE (Honda Code 5266069).

$12.99

$

In Stock, only 1 left!

0

19

Honda 16954-ZE1-812

SEE PART DETAILS - PRI; PLATE, LEVER SETTING (Honda Code 5148135).

$4.99

$

In Stock, only 1 left!

0

20

Honda 16956-ZE1-811

SPRING, VALVE LEVER (Honda Code 1807809).

$4.99

$

In Stock, Qty 6

0

21

Honda 16957-ZE1-811

SEE PART DETAILS - SUP; GASKET, VALVE (Honda Code 1807817).
(Superseded to 16957-ZE1-812)

Note: Use up to Engine SN BE35A C.

$4.99

$

In Stock, only 4 left!

0

21

Honda 16957-ZE1-812

SEE PART DETAILS - PRI; GASKET, VALVE (Honda Code 3440708).

Note: Use up to Engine SN BE35A C.

$4.99

$

In Stock, only 4 left!

0

21

Honda 16957-ZE1-812

SEE PART DETAILS - PRI; GASKET, VALVE (Honda Code 3440708).

Note: Use from Engine SN BE35A D.

$4.99

$

In Stock, only 4 left!

0

22

Honda 93500-03006-0H

SEE PART DETAILS - PRI; SCREW, PAN (3X6) (Honda Code 0561654).

Note: Use from Engine SN BE35A E.

$1.49

$

In Stock, Qty 7

0

22

Honda 93500-03008-0H

SEE PART DETAILS - PRI; SCREW, PAN (3X8) (Honda Code 0374694).

Note: Use up to Engine SN BE35A C.

$1.49

$

In Stock, only 4 left!

0

23

Honda 95002-02080

CLIP, TUBE (B8) (Honda Code 0250647).

$2.99

$

In Stock, Qty 20+

0

24

Honda 99101-124-0820

JET, MAIN (#82) (Honda Code 0714527).

Note: (Optional).

$13.99

$

Usually ships in 3-6 days

0

24

Honda 99101-124-0850

JET, MAIN (#85) (Honda Code 0761361).

Note: (Optional).

$13.99

$

In Stock, only 1 left!

0

24

Honda 99101-124-0880

JET, MAIN (#88) (Honda Code 0648170).

$13.99

$

In Stock, only 1 left!

0

25

Honda 99204-ZA0-0400

JET SET, PILOT (#40) (Honda Code 2097400).

$27.99

$

Usually ships in 3-6 days

0
