GXV340 K1 DAP2 (GJ02) - Honda Engine, Made in Japan (SN: GJ02-1100001 - GJ02-5999999) CYLINDER BARREL Parts Diagram

Engine, Made in Japan

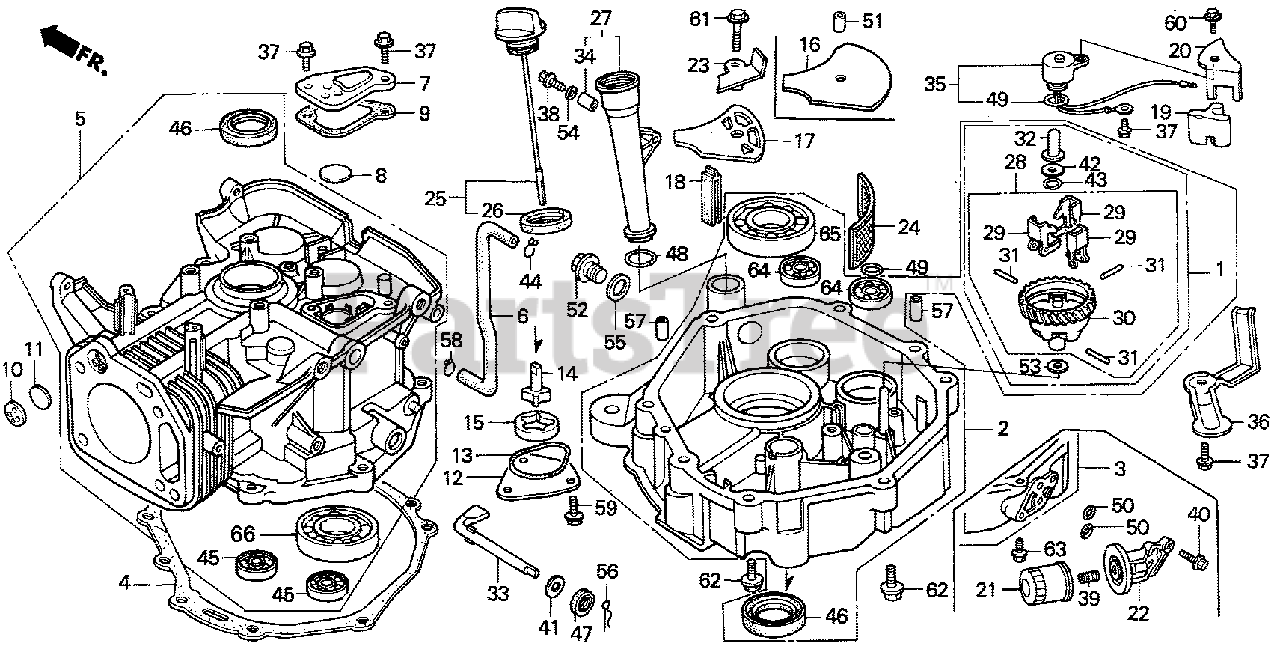

CYLINDER BARREL Parts Diagram

  • Title

1

Honda 06165-ZE3-000

SEE PART DETAILS - SUP; GOVERNOR KIT (Honda Code 3712940).
(Superseded to 06165-ZE3-020)

Note: (Optional). Use from Engine SN 2087729.

$28.99

$

Usually ships in 3-6 days

0

1

Honda 06165-ZE3-010

SEE PART DETAILS - SUP; GOVERNOR KIT (Honda Code 7120074).
(Superseded to 06165-ZE3-020)

Note: (Optional). Use from Engine SN 2087729.

$28.99

$

Usually ships in 3-6 days

0

1

Honda 06165-ZE3-020

SEE PART DETAILS - PRI; GOVERNOR KIT (Honda Code 7160096).

Note: (Optional). Use from Engine SN 2087729.

$28.99

$

Usually ships in 3-6 days

0

1

Honda 06165-ZE8-000

GOVERNOR KIT (Honda Code 3313699).

Note: (Optional). Use up to Engine SN 2087728.

$

$

Not available

2

Honda 113A0-ZE9-830

PAN ASSY., OIL (Honda Code 3131778).

Note: Use up to Engine SN 2087728.

$

$

Not available

2

Honda 11300-ZE9-831

PAN ASSY., OIL (Honda Code 5379854).

Note: Use from Engine SN 2087729.

$

$

Currently unavailable

4

Honda 11381-ZE9-000

SEE PART DETAILS - SUP; GASKET, OIL PAN (Honda Code 2278166). (NOT AVAILABLE)

Note: Use up to Engine SN 2057739.

$

$

Currently unavailable

4

Honda 11381-ZE9-306

SEE PART DETAILS - SUP; GASKET, OIL PAN (Honda Code 4428223).
(Superseded to 11381-ZE9-800)

Note: Use up to Engine SN 2057739.

$19.99

$

In Stock, Qty 12

0

4

Honda 11381-ZE9-800

SEE PART DETAILS - SUP; GASKET, OIL PAN (Honda Code 4145660).
(Superseded to 11381-ZE9-801)

Note: Use from Engine SN 2057740.

$19.99

$

In Stock, Qty 12

0

4

Honda 11381-ZE9-801

SEE PART DETAILS - PRI; GASKET, OIL PAN (Honda Code 6495758).

Note: Use from Engine SN 2057740.

$19.99

$

In Stock, Qty 12

0

5

Honda 120A0-ZE9-600

SEE PART DETAILS - PRI; CYLINDER ASSY. (Honda Code 3131786).

$

$

Not available

5

Honda 120A0-ZE9-600

SEE PART DETAILS - PRI; CYLINDER ASSY. (Honda Code 3131786).

Note: Use up to Engine SN 2099658.

$

$

Not available

5

Honda 12000-ZE9-604

SEE PART DETAILS - PRI; CYLINDER ASSY. (Honda Code 6672422).

Note: Use from Engine SN 2099659.

$

$

Not available

6

Honda 12315-ZF5-000

TUBE, BREATHER (Honda Code 3131828).

$10.99

$

In Stock, only 2 left!

0

7

Honda 12370-ZF5-000

CAP, BREATHER CHAMBER (Honda Code 3131836).

$10.99

$

In Stock, only 1 left!

0

8

Honda 12372-ZE2-300

VALVE, BREATHER (Honda Code 2061620).

$4.49

$

In Stock, only 2 left!

0

9

Honda 12373-ZE8-000

GASKET, BREATHER CAP (Honda Code 2089647).

$3.99

$

In Stock, only 3 left!

0

10

Honda 12375-ZE9-010

PLATE, ONE-WAY VALVE (Honda Code 2484954).

$5.49

$

In Stock, only 1 left!

0

11

Honda 12376-ZE8-000

VALVE, ONE-WAY (Honda Code 2089662).

$2.99

$

In Stock, only 2 left!

0

12

Honda 15130-ZE8-000

COVER, OIL PUMP (Honda Code 2089886).

$10.99

$

Usually ships in 3-6 days

0

13

Honda 15131-ZE9-003

SEE PART DETAILS - PRI; O-RING, PUMP COVER (Honda Code 2278331).

$4.99

$

In Stock, only 2 left!

0

14

Honda 15330-ZE8-000

ROTOR (INNER) (Honda Code 2089902).

$26.99

$

Usually ships in 3-6 days

0

15

Honda 15332-891-003

ROTOR, OIL PUMP (OUTER) (Honda Code 0800219).

$21.99

$

Usually ships in 3-6 days

0

17

Honda 15334-ZE8-811

SEE PART DETAILS - PRI; PLATE, OIL FILTER (Honda Code 2577294).

$9.99

$

Usually ships in 3-6 days

0

18

Honda 15335-ZE9-000

RUBBER, OIL RETURN (Honda Code 2278349).

$6.49

$

In Stock, only 2 left!

0

19

Honda 15336-ZE8-000

STOPPER, OIL (Honda Code 2485043).

$6.99

$

Usually ships in 3-6 days

0

20

Honda 15337-ZE8-000

PLATE, OIL STOPPER (Honda Code 2485050).

$6.99

$

Usually ships in 3-6 days

0

23

Honda 15420-ZE8-000

SEE PART DETAILS - PRI; PLATE, SUCTION (Honda Code 2461663).

$9.99

$

Usually ships in 3-6 days

0

24

Honda 15421-ZE9-003

SEE PART DETAILS - PRI; SCREEN, OIL FILTER (Honda Code 2608644).

$17.99

$

Usually ships in 3-6 days

0

25

Honda 15600-ZF5-000

CAP ASSY., OIL FILLER (Honda Code 3131919).
(Superseded to 15600-Z5N-800)

$4.99

$

In Stock, only 2 left!

0

26

Honda 15625-ZE8-000

GASKET, OIL FILLER CAP (Honda Code 2089969).

$5.99

$

In Stock, Qty 7

0

27

Honda 15630-ZE8-000

EXTENSION, OIL FILLER (Honda Code 2089977).
(Superseded to 15630-Z5N-800)

$6.49

$

In Stock, Qty 11

0

28

Honda 16510-ZE3-000

GOVERNOR ASSY. (Honda Code 3713187).

Note: Use from Engine SN 2086153.

$36.99

$

In Stock, only 2 left!

0

28

Honda 16510-ZE8-000

GOVERNOR ASSY. (Honda Code 2278521).

Note: Use up to Engine SN 2086152.

$25.99

$

Usually ships in 3-6 days

0

29

Honda 16511-ZE8-000

WEIGHT, GOVERNOR (Honda Code 2090090).

$8.99

$

Usually ships in 3-6 days

0

30

Honda 16512-ZE3-000

HOLDER, GOVERNOR WEIGHT (Honda Code 3713195).

Note: Use from Engine SN 2086153.

$21.99

$

Usually ships in 3-6 days

0

30

Honda 16512-ZE8-000

HOLDER, GOVERNOR WEIGHT (Honda Code 2090108).

Note: Use up to Engine SN 2086152.

$22.99

$

Usually ships in 3-6 days

0

31

Honda 16513-ZE2-000

PIN, GOVERNOR WEIGHT (Honda Code 2025971).

$2.99

$

Usually ships in 3-6 days

0

32

Honda 16531-ZE2-000

SEE PART DETAILS - SUP; SLIDER, GOVERNOR (Honda Code 2025989).
(Superseded to 16531-Z0A-000)

$4.49

$

In Stock, only 2 left!

0

32

Honda 16531-Z0A-000

SEE PART DETAILS - PRI; SLIDER, GOVERNOR (Honda Code 6605117).

$4.49

$

In Stock, only 2 left!

0

33

Honda 16541-ZE8-010

SEE PART DETAILS - PRI; SHAFT, GOVERNOR ARM (Honda Code 4751293).

$17.99

$

Usually ships in 3-6 days

0

34

Honda 17240-ZE6-000

COLLAR, EXTENSION (Honda Code 1453000).

$5.49

$

In Stock, only 2 left!

0

35

Honda 35410-ZF5-013

SEE PART DETAILS - PRI; SWITCH, OIL LEVEL (Honda Code 7100449).

$78.99

$

Usually ships in 3-6 days

0

36

Honda 35419-ZF5-000

PROTECTOR, SWITCH (Honda Code 3132214).

$9.99

$

Usually ships in 3-6 days

0

37

Honda 90013-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845).

$2.49

$

In Stock, Qty 20+

0

38

Honda 90014-ZE6-000

BOLT, FLANGE (6X35) (Honda Code 1688076).

$2.99

$

In Stock, Qty 5

0

41

Honda 90406-VM6-000

WASHER, THRUST (8.1MM) (Honda Code 1806934).

$3.99

$

Usually ships in 3-6 days

0

42

Honda 90473-147-000

SEE PART DETAILS - PRI; WASHER (6X16) (Honda Code 0465591).

Note: Use up to Engine SN 2069130.

$1.99

$

In Stock, only 3 left!

0

43

Honda 90602-ZE1-000

SEE PART DETAILS - PRI; CLIP, GOVERNOR HOLDER (Honda Code 2456697).

$1.99

$

In Stock, Qty 20+

0

43

Honda 90602-896-000

SEE PART DETAILS - SUP; CLIP, GOVERNOR HOLDER (Honda Code 0928101).
(Superseded to 90602-ZE1-000)

Note: Use up to Engine SN 1104350.

$1.99

$

In Stock, Qty 20+

0

44

Honda 90652-MB1-000

CLIP, TUBE (Honda Code 1768605).

$1.99

$

In Stock, Qty 5

0

45

Honda 91001-ZF5-003

BEARING, RADIAL BALL (6202) (Honda Code 3132263).

$21.99

$

Usually ships in 3-6 days

0

46

Honda 91201-ZE3-004

OIL SEAL (35X52X8) (Honda Code 2108595).

$12.99

$

In Stock, only 4 left!

0

47

Honda 91201-ZE9-003

SEE PART DETAILS - PRI; OIL SEAL (8X14X5) (Honda Code 2461713).

$6.49

$

In Stock, Qty 5

0

47

Honda 91203-952-771

SEE PART DETAILS - SUP; OIL SEAL (8X14X5) (Honda Code 0744326).
(Superseded to 91201-ZE9-003)

$6.49

$

In Stock, Qty 5

0

48

Honda 91301-ZE9-003

O-RING (22.5X2.2) (Honda Code 2280006).

$2.99

$

In Stock, Qty 20+

0

49

Honda 91320-MJ6-003

SEE PART DETAILS - PRI; O-RING (11.8X2.4) (Honda Code 2023935).

$3.99

$

Usually ships in 3-6 days

0

52

Honda 92800-20000

SEE PART DETAILS - PRI; BOLT, DRAIN PLUG (20MM) (Honda Code 0209635).

$7.99

$

In Stock, only 2 left!

0

53

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM) (Honda Code 0345900).

$0.99

$

In Stock, Qty 20+

0

54

Honda 94103-06700

WASHER, PLAIN (6MM) (Honda Code 0622324).

$1.49

$

In Stock, only 4 left!

0

55

Honda 94109-20000

SEE PART DETAILS - PRI; WASHER, DRAIN PLUG (20MM) (Honda Code 0251728).

$2.49

$

In Stock, Qty 6

0

56

Honda 94251-08000

SEE PART DETAILS - PRI; PIN, LOCK (8MM) (Honda Code 0115527).

Note: Use up to Engine SN 2096049.

$1.99

$

In Stock, Qty 20+

0

56

Honda 94251-10000

PIN, LOCK (10MM) (Honda Code 0159269).

Note: Use from Engine SN 2096050.

$1.99

$

In Stock, Qty 8

0

57

Honda 90701-HC4-000

PIN, DOWEL (8X12) (Honda Code 2978443).

Note: Use from Engine SN 1106371.

$4.49

$

In Stock, Qty 12

0

57

Honda 94301-08120

SEE PART DETAILS - PRI; PIN A, DOWEL (8X12) (Honda Code 0069328).

Note: Use up to Engine SN 1106370.

$3.49

$

Usually ships in 3-6 days

0

58

Honda 95002-70000

CLIP, TUBE (C11) (Honda Code 0053595).

Note: Use up to Engine SN 2062388.

$2.49

$

In Stock, Qty 20+

0

59

Honda 95700-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (Honda Code 0487025).
(Superseded to 95701-06012-00)

$2.49

$

In Stock, Qty 20+

0

59

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (Honda Code 2105799).

$2.49

$

In Stock, Qty 20+

0

60

Honda 95701-06016-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X16) (Honda Code 2410892).

$2.49

$

In Stock, Qty 7

0

61

Honda 95700-06025-00

SEE PART DETAILS - SUP; BOLT, FLANGE (6X25) (Honda Code 0484485).
(Superseded to 95701-06025-00)

$2.99

$

In Stock, only 3 left!

0

61

Honda 95701-06025-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X25) (Honda Code 2105831).

$2.99

$

In Stock, only 3 left!

0

62

Honda 95701-08040-08

SEE PART DETAILS - PRI; BOLT, FLANGE (8X40) (Honda Code 2374775).

$3.49

$

In Stock, only 2 left!

0

62

Honda 95701-08040-08

SEE PART DETAILS - PRI; BOLT, FLANGE (8X40) (Honda Code 2374775).

Note: Use from Engine SN 2100577.

$3.49

$

In Stock, only 2 left!

0

62

Honda 95701-08060-08

SEE PART DETAILS - PRI; BOLT, FLANGE (8X60) (Honda Code 2488526).

Note: Use from Engine SN 2100577.

$3.99

$

Usually ships in 3-6 days

0

64

Honda 96100-62020-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6202) (Honda Code 0708941).

$13.99

$

In Stock, only 2 left!

0

65

Honda 96100-62070-00

BEARING, RADIAL BALL (6207) (Honda Code 0997320).

$62.99

$

In Stock, only 3 left!

0

65

Honda 96100-62073-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6207) (Honda Code 0572206).
(Superseded to 96100-62070-00)

Note: Use from Engine SN 2100587.

$62.99

$

In Stock, only 3 left!

0

65

Honda 96100-62073-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6207) (Honda Code 0572206).
(Superseded to 96100-62070-00)

Note: Use up to Engine SN 2100586.

$62.99

$

In Stock, only 3 left!

0

66

Honda 96100-62070-00

BEARING, RADIAL BALL (6207) (Honda Code 0997320).

Note: Use from Engine SN 2099659.

$62.99

$

In Stock, only 3 left!

0

66

Honda 96100-62073-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6207) (Honda Code 0572206).
(Superseded to 96100-62070-00)

Note: Use from Engine SN 2099659.

$62.99

$

In Stock, only 3 left!

0
