GXV340 K1 DAP2 (GJ02) - Honda Engine, Made in Japan (SN: GJ02-1100001 - GJ02-5999999) RECOIL STARTER (1) Parts Diagram

Engine, Made in Japan

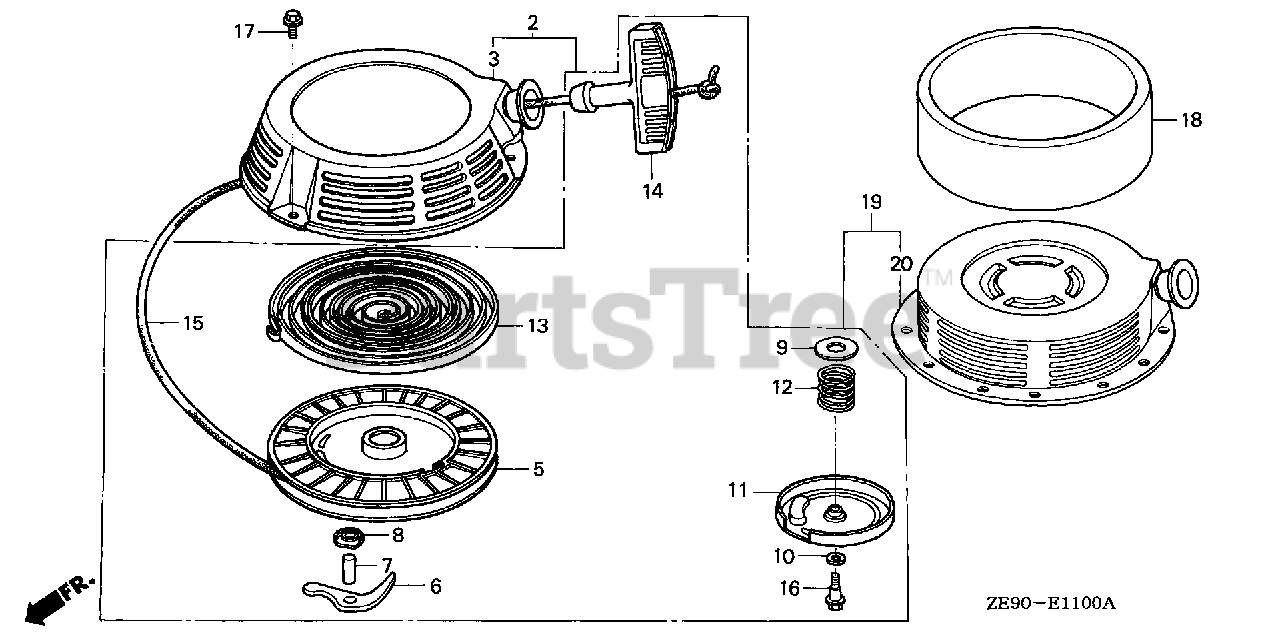

RECOIL STARTER (1) Parts Diagram

  • Title

5

Honda 28420-ZE8-811

REEL, STARTER
(Superseded to 28420-ZE8-812)

Note: Use up to Engine SN 2049068.

$65.99

$

In Stock, only 2 left!

0

5

Honda 28420-ZE8-812

REEL, STARTER

Note: Use up to Engine SN 2049068.

$65.99

$

In Stock, only 2 left!

0

6

Honda 28422-ZE8-811

RATCHET, STARTER

Note: Use up to Engine SN 2049068.

$

$

Not available

7

Honda 28423-ZE1-711

SHAFT, RATCHET (NOT AVAILABLE)

Note: Use up to Engine SN 2049068.

$10.99

$

Usually ships in 3-6 days

0

8

Honda 28424-ZE1-712

SEE PART DETAILS - PRI; PLATE, GUIDE

Note: Use up to Engine SN 2049068.

$5.49

$

Usually ships in 3-6 days

0

9

Honda 28431-ZE1-711

PLATE A, FRICTION

Note: Use up to Engine SN 2049068.

$

$

Not available

10

Honda 28432-ZG0-003

SEE PART DETAILS - SUP; PLATE B, FRICTION

Note: Use up to Engine SN 2049068.

$3.49

$

Usually ships in 3-6 days

0

11

Honda 28434-ZE8-811

COVER, STARTER REEL
(Superseded to 28434-ZE8-812)

Note: Use up to Engine SN 2049068.

$11.99

$

Usually ships in 3-6 days

0

11

Honda 28434-ZE8-812

COVER, STARTER REEL

Note: Use up to Engine SN 2049068.

$11.99

$

Usually ships in 3-6 days

0

12

Honda 28441-ZE1-711

SPRING, FRICTION (D=18.5MM / L=20.5MM)

Note: Use up to Engine SN 2049068.

$3.99

$

Usually ships in 3-6 days

0

12

Honda 28441-ZG3-004

SPRING, FRICTION (D=13.0MM / L=16.3MM)

Note: Use up to Engine SN 2049068.

$4.49

$

Usually ships in 3-6 days

0

13

Honda 28442-ZE1-713

SEE PART DETAILS - PRI; SPRING, RETURN

Note: Use up to Engine SN 2049068.

$24.99

$

Usually ships in 3-6 days

0

14

Honda 28461-889-631

GRIP, STARTER

Note: Use up to Engine SN 2049068.

$12.99

$

In Stock, Qty 13

0

15

Honda 28462-ZE8-811

ROPE, STARTER (N/A: USE ALT P/N 08560-ZG921-11)

Note: Use up to Engine SN 2049068.

$

$

Currently unavailable

16

Honda 90003-ZG0-003

BOLT, REEL COVER

Note: Use up to Engine SN 2049068.

$

$

Not available

17

Honda 96001-06010-00

BOLT, FLANGE (6X10)

Note: Use up to Engine SN 2049068.

$2.49

$

Usually ships in 3-6 days

0

18

Honda 17219-ZE8-900

FILTER, AIR

Note: Use up to Engine SN 2049068.

$12.99

$

Usually ships in 3-6 days

0

19

Honda 28400-ZE8-509

SEE PART DETAILS - PRI; STARTER ASSY., RECOIL *R8* (BRIGHT RED)
(Superseded to 28400-ZE8-305)

Note: Use up to Engine SN 2049068.

$105.99

$

In Stock, only 2 left!

0

19

Honda 28400-ZE8-811ZG

SEE PART DETAILS - SUP; STARTER ASSY., RECOIL *R8* (BRIGHT RED)
(Superseded to 28400-ZE8-305)

Note: Use up to Engine SN 2049068.

$105.99

$

In Stock, only 2 left!

0

20

Honda 28410-ZE8-811ZA

CASE, RECOIL STARTER *R8* (BRIGHT RED) (NOT AVAILABLE)

Note: Use up to Engine SN 2049068.

$

$

Not available
