GXV340 K1 DAP2 (GJ02) - Honda Engine, Made in Japan (SN: GJ02-1100001 - GJ02-5999999) RECOIL STARTER (2) Parts Diagram

Engine, Made in Japan

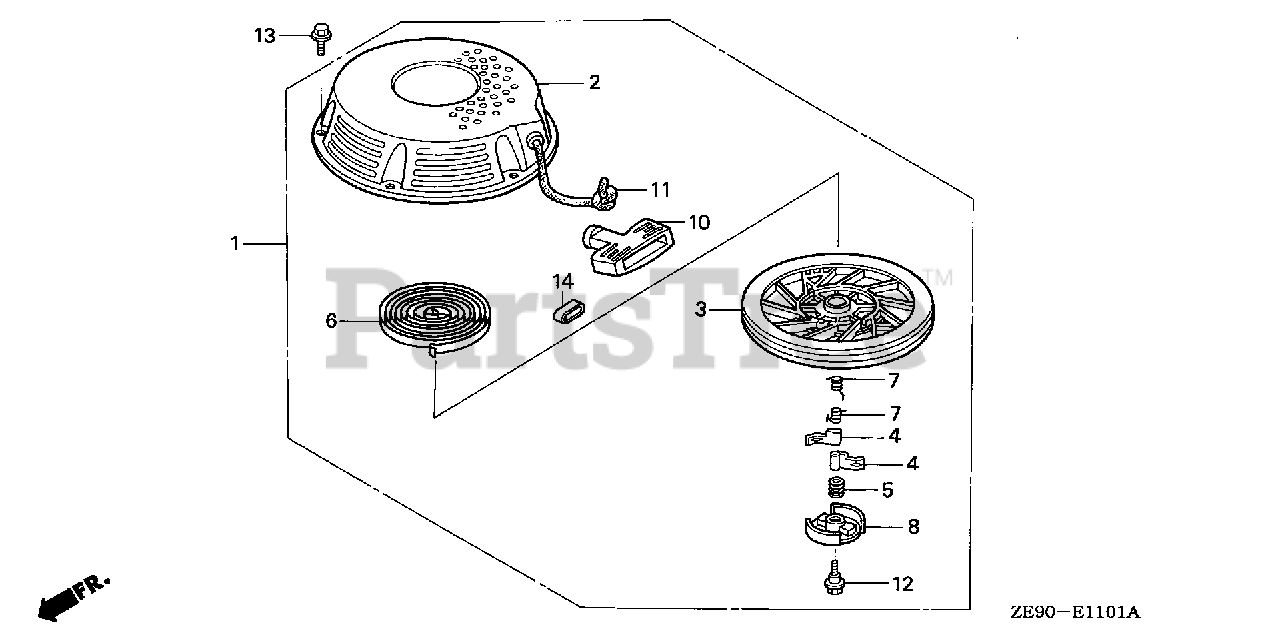

RECOIL STARTER (2) Parts Diagram

  • Title

1

Honda 28400-ZE8-821ZC

STARTER ASSY., RECOIL *R280* (POWER RED)
(Superseded to 28400-ZE8-822ZC)

Note: Use from Engine SN 2049069.

$123.99

$

Usually ships in 3-6 days

0

2

Honda 28410-ZE8-821ZC

CASE, RECOIL STARTER *R280* (POWER RED)

Note: Use from Engine SN 2049069.

$167.99

$

Usually ships in 3-6 days

0

3

Honda 28421-ZE8-821

PULLEY, RECOIL STARTER

Note: Use from Engine SN 2049069.

$48.99

$

Usually ships in 3-6 days

0

4

Honda 28422-ZE2-W01

RATCHET, STARTER

Note: Use from Engine SN 2049069.

$7.49

$

In Stock, only 4 left!

0

5

Honda 28441-ZE2-W01

SPRING, FRICTION

Note: Use from Engine SN 2049069.

$6.49

$

In Stock, only 4 left!

0

6

Honda 28442-ZE2-W01

SPRING, STARTER RETURN

Note: Use from Engine SN 2049069.

$18.99

$

In Stock, only 3 left!

0

7

Honda 28443-ZE2-W01

SPRING, RATCHET

Note: Use from Engine SN 2049069.

$5.49

$

In Stock, only 2 left!

0

8

Honda 28444-ZE2-W01

RETAINER, SPRING

Note: Use from Engine SN 2049069.

$14.99

$

Usually ships in 3-6 days

0

10

Honda 28461-ZE2-W03

SEE PART DETAILS - PRI; GRIP, STARTER

Note: Use from Engine SN 2049069.

$7.99

$

In Stock, only 4 left!

0

11

Honda 28462-ZH8-003

ROPE, RECOIL STARTER

Note: Use from Engine SN 2049069.

$12.99

$

In Stock, Qty 14

0

12

Honda 90004-ZE2-W01

SCREW, CENTER

Note: Use from Engine SN 2049069.

$4.49

$

In Stock, only 1 left!

0

13

Honda 96001-06010-00

BOLT, FLANGE (6X10)

Note: Use from Engine SN 2049069.

$2.49

$

Usually ships in 3-6 days

0

14

Honda 28469-ZE2-W01

REINFORCEMENT, GRIP

$6.99

$

In Stock, only 1 left!

0
