GXV340 K1 DAP5 (GJ02) - Honda Engine, Made in Japan (SN: GJ02-1100001 - GJ02-5999999) STARTER MOTOR (A.C.) Parts Diagram

Engine, Made in Japan

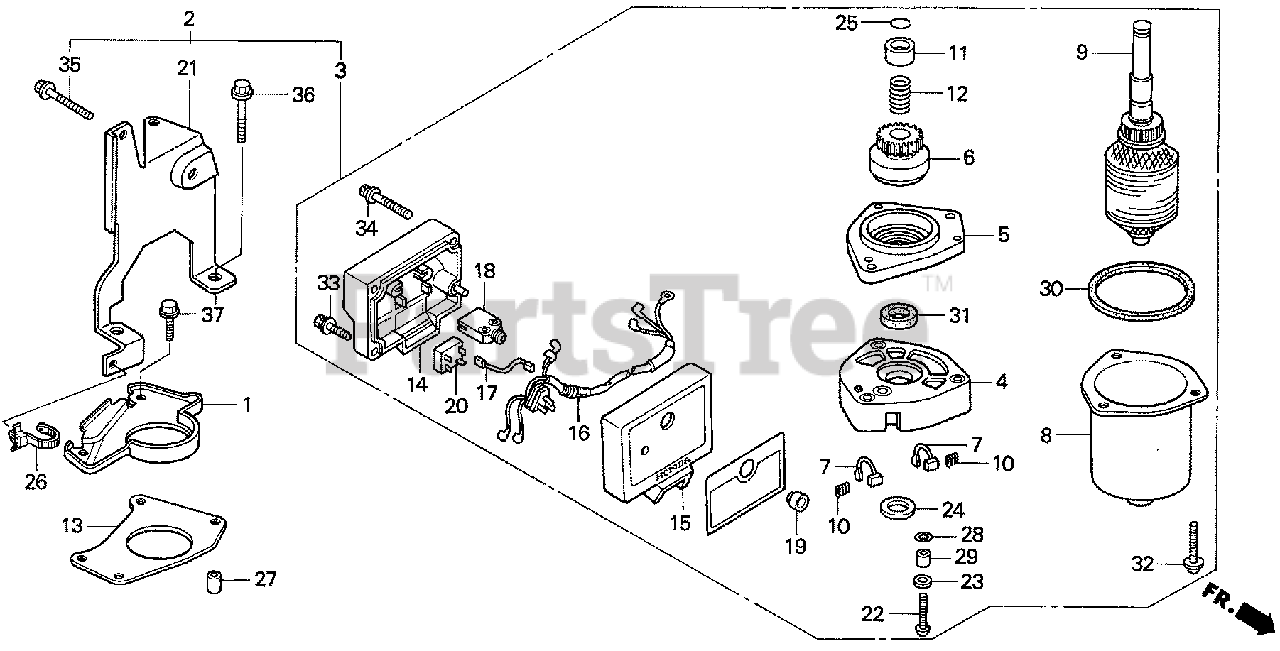

STARTER MOTOR (A.C.) Parts Diagram

  • Title

1

Honda 19611-ZE8-810

PLATE, SIDE (Honda Code 2692358).

$19.99

$

Usually ships in 3-6 days

0

2

Honda 31200-ZE8-812

SEE PART DETAILS - PRI; MOTOR ASSY., STARTER (A.C.) (Honda Code 6390801).

$

$

Currently unavailable

3

Honda 31210-ZE8-812

SEE PART DETAILS - PRI; MOTOR ASSY., STARTER (Honda Code 6076988).

$

$

Currently unavailable

4

Honda 31211-ZE8-811

HOUSING, CENTER (Honda Code 2694818).

$123.99

$

Usually ships in 3-6 days

0

5

Honda 31212-ZE8-811

HOUSING, PINION (Honda Code 2694826).

$

$

Not available

6

Honda 31214-ZE8-811

CLUTCH (Honda Code 2694834).

$

$

Not available

7

Honda 31215-ZE1-821

BRUSH (Honda Code 2773059).

$12.99

$

Usually ships in 3-6 days

0

8

Honda 31216-ZE8-811

YOKE (Honda Code 2694842).

$82.99

$

Usually ships in 3-6 days

0

9

Honda 31217-ZE8-812

SEE PART DETAILS - PRI; ARMATURE (Honda Code 6486054).

$

$

Not available

10

Honda 31219-ZE1-821

SPRING, BRUSH RETURN (Honda Code 2773083).

$4.49

$

Usually ships in 3-6 days

0

11

Honda 31221-ZE8-811

STOPPER, PINION (Honda Code 2694867).

$65.99

$

Usually ships in 3-6 days

0

12

Honda 31223-ZE8-811

SEE PART DETAILS - PRI; SPRING, COIL (Honda Code 2694875).

$6.99

$

Usually ships in 3-6 days

0

13

Honda 31255-ZE8-810

BRACKET, STARTER MOTOR (Honda Code 2694917).

$

$

Not available

14

Honda 31601-ZE1-821

COVER (Honda Code 2773117).

$21.99

$

Usually ships in 3-6 days

0

15

Honda 31602-ZE1-821

CASE (Honda Code 2773125).

$20.99

$

Usually ships in 3-6 days

0

16

Honda 31605-ZE8-811

WIRE (Honda Code 2695047).

$80.99

$

Usually ships in 3-6 days

0

17

Honda 31606-ZE1-781

SUB-WIRE (Honda Code 2299576).

$13.99

$

Usually ships in 3-6 days

0

18

Honda 31611-ZE1-781

SWITCH, STARTER (Honda Code 2299584). (A.C. 380V-16A)

$68.99

$

Usually ships in 3-6 days

0

18

Honda 31611-ZE1-822

SWITCH, STARTER (Honda Code 2773141). (A.C. 250V-16A)

$68.99

$

Usually ships in 3-6 days

0

19

Honda 31612-ZE1-781

CAP (Honda Code 2299592).

$8.99

$

Usually ships in 3-6 days

0

20

Honda 31614-ZE1-781

DIODE (Honda Code 2299600).

$91.99

$

Usually ships in 3-6 days

0

21

Honda 31617-ZE8-810

BRACKET, SWITCH BOX (Honda Code 2695062).

$

$

Not available

22

Honda 90101-ZE1-821

SCREW, TRUSS (4X30) (Honda Code 2774099).

$2.99

$

Usually ships in 3-6 days

0

23

Honda 90401-ZE1-821

WASHER, STAR (4MM) (Honda Code 2774149).

$2.49

$

Usually ships in 3-6 days

0

24

Honda 90403-ZE8-811

WASHER B (Honda Code 2791127).

$

$

Not available

25

Honda 90602-ZE8-811

RING, RETAINING (Honda Code 2710382).

$2.49

$

Usually ships in 3-6 days

0

26

Honda 90672-SB2-003

STRAP, CABLE (105MM) *NH1* (Honda Code 1685536). (BLACK)

$6.99

$

Usually ships in 3-6 days

0

27

Honda 94301-10140

SEE PART DETAILS - PRI; PIN A, DOWEL (10X14) (Honda Code 0069336).

$2.99

$

Usually ships in 3-6 days

0

28

Honda 91301-ZE1-821

O-RING (Honda Code 2774339).

$2.49

$

Usually ships in 3-6 days

0

29

Honda 91502-ZE1-821

COLLAR (Honda Code 2774362).

$3.99

$

Usually ships in 3-6 days

0

30

Honda 91601-ZE1-821

GASKET (Honda Code 2774404).

$7.49

$

Usually ships in 3-6 days

0

31

Honda 91602-ZE8-811

OIL SEAL (Honda Code 2711273).

$7.49

$

Usually ships in 3-6 days

0

32

Honda 93892-05040-08

SEE PART DETAILS - PRI; SCREW-WASHER (5X40) (Honda Code 0840306).

$

$

Not available

33

Honda 93893-04020-08

SEE PART DETAILS - PRI; SCREW-WASHER (4X20) (Honda Code 1191089).

$0.99

$

Usually ships in 3-6 days

0

34

Honda 93893-04030-18

SEE PART DETAILS - PRI; SCREW-WASHER (4X30) (Honda Code 2299683).

$1.49

$

Usually ships in 3-6 days

0

35

Honda 95701-06040-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X40) (Honda Code 2105872).

$2.49

$

Usually ships in 3-6 days

0

36

Honda 95701-08025-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X25) (Honda Code 2545325).

$2.49

$

In Stock, Qty 5

0

37

Honda 95801-08028-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X28) (Honda Code 4150074).

$1.99

$

Usually ships in 3-6 days

0
