GXV340 K2 DP23 (GEAA) - Honda Engine, Made in USA (SN: GEAA-6000001 - GEAA-9999999) FLYWHEEL Parts Diagram

Engine, Made in USA

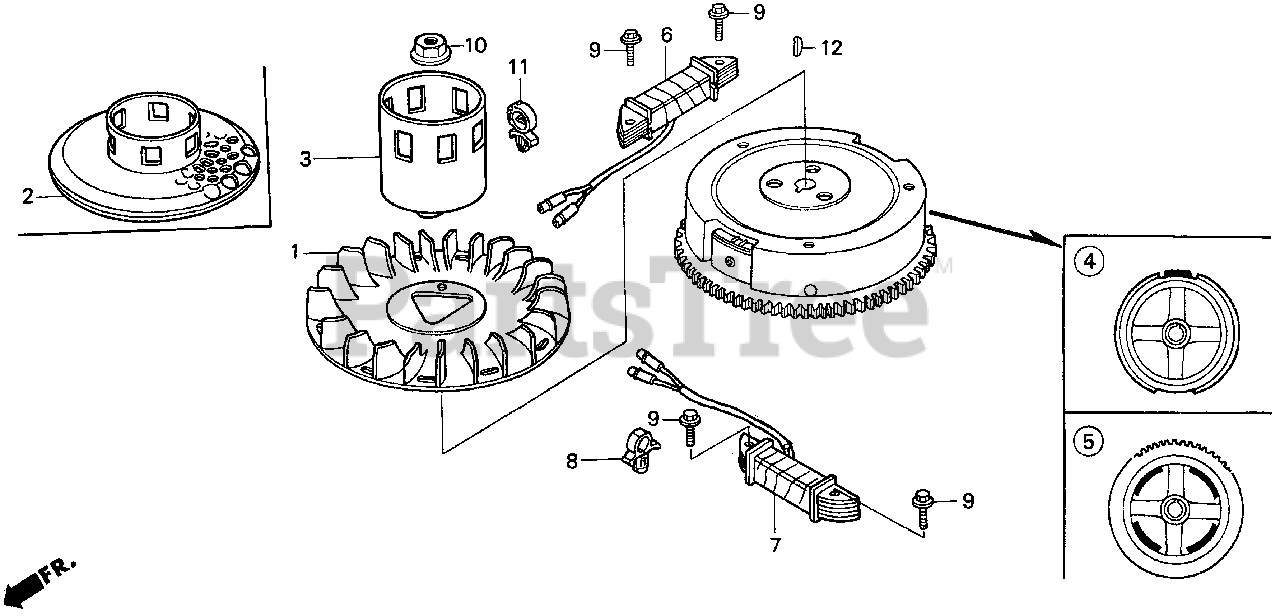

FLYWHEEL Parts Diagram

  • Title

1

Honda 19511-ZE9-010

SEE PART DETAILS - PRI; FAN, COOLING
(Superseded to 19511-ZE9-020)

Note: (Honda Code 2485407).

$8.99

$

Usually ships in 3-6 days

0

3

Honda 28451-ZE2-W01

PULLEY, STARTER

Note: (Honda Code 3678943).

$26.99

$

Usually ships in 3-6 days

0

5

Honda 31100-ZE9-803

SEE PART DETAILS - SUP; FLYWHEEL (4 POLE)

Note: (Honda Code 3519303).

$

$

Currently unavailable

5

Honda 31100-ZE9-804

SEE PART DETAILS - PRI; FLYWHEEL

Note: (Honda Code 5335914).

$

$

Not available

6

Honda 31510-ZE8-901

COIL ASSY., CHARGE

Note: (Honda Code 2324168).

$67.99

$

Usually ships in 3-6 days

0

8

Honda 46391-VM0-003

CLIP A, BRAKE PIPE

Note: (Honda Code 1769652).

$2.99

$

Usually ships in 3-6 days

0

9

Honda 90015-883-000

BOLT, FLANGE (6X28)

Note: (Honda Code 0636852).

$3.49

$

In Stock, only 3 left!

0

10

Honda 90201-ZE3-790

NUT, SPECIAL (16MM)

Note: (Honda Code 2326908).

$10.99

$

Usually ships in 3-6 days

0

11

Honda 90684-ZA0-601

SEE PART DETAILS - PRI; CLIP, WIRE HARNESS

Note: (Honda Code 2539138).

$4.49

$

Usually ships in 3-6 days

0

12

Honda 90741-ZE2-000

KEY, SPECIAL WOODRUFF (25X18)

Note: (Honda Code 2027159).

$3.99

$

Usually ships in 3-6 days

0
