GXV340 K2 DP23 (GEAA) - Honda Engine, Made in USA (SN: GEAA-6000001 - GEAA-9999999) RECOIL STARTER Parts Diagram

Engine, Made in USA

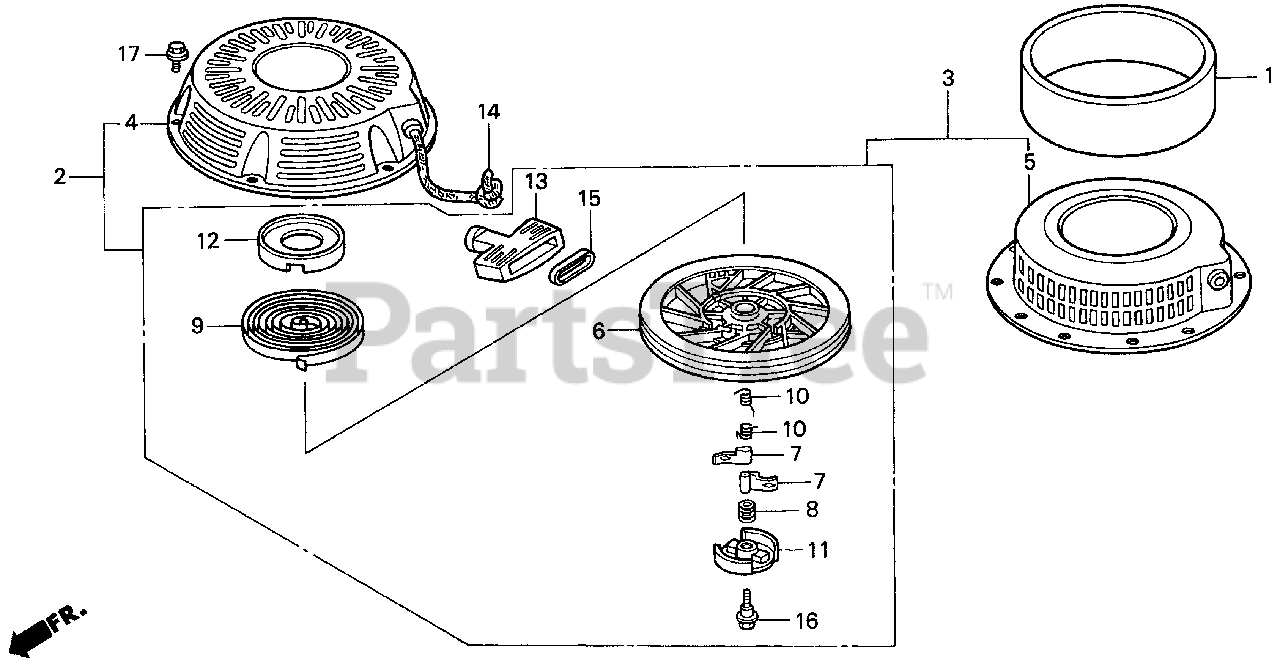

RECOIL STARTER Parts Diagram

  • Title

1

Honda 17219-ZE8-900

FILTER, AIR

Note: (Honda Code 2324093).

$12.99

$

In Stock, only 2 left!

0

3

Honda 28400-ZE8-821ZA

STARTER ASSY., RECOIL *R8* (BRIGHT RED)

Note: (Honda Code 4820049).

$

$

Currently unavailable

3

Honda 28400-ZE8-821ZB

STARTER ASSY., RECOIL *NH1* (BLACK)

Note: (Honda Code 5281183).

$

$

Not available

5

Honda 28410-ZE8-821ZA

CASE, RECOIL STARTER *R8* (BRIGHT RED)

Note: (Honda Code 5040241).

$

$

Currently unavailable

5

Honda 28410-ZE8-821ZB

CASE, RECOIL STARTER *NH1* (BLACK)

Note: (Honda Code 5281191).

$

$

Not available

6

Honda 28421-ZE8-821

PULLEY, RECOIL STARTER

Note: (Honda Code 4820064).

$48.99

$

Usually ships in 3-6 days

0

7

Honda 28422-ZE2-W01

RATCHET, STARTER

Note: (Honda Code 3678877).

$7.49

$

In Stock, only 4 left!

0

8

Honda 28441-ZE2-W01

SPRING, FRICTION

Note: (Honda Code 3678885).

$6.49

$

In Stock, only 4 left!

0

9

Honda 28442-ZE2-W01

SPRING, STARTER RETURN

Note: (Honda Code 3678893).

$18.99

$

In Stock, only 3 left!

0

10

Honda 28443-ZE2-W01

SPRING, RATCHET

Note: (Honda Code 3678901).

$5.49

$

In Stock, only 2 left!

0

11

Honda 28444-ZE2-W01

RETAINER, SPRING

Note: (Honda Code 3678919).

$14.99

$

Usually ships in 3-6 days

0

13

Honda 28461-ZE2-W02

SEE PART DETAILS - PRI; GRIP, STARTER
(Superseded to 28461-ZE2-W03)

Note: (Honda Code 6133649).

$7.99

$

In Stock, only 3 left!

0

14

Honda 28462-ZE2-W01

SEE PART DETAILS - SUP; ROPE, RECOIL STARTER (NA USE ALT:08550-ZG921-11)

Note: (Honda Code 3678968).

$

$

Currently unavailable

15

Honda 28469-ZE2-W01

GRIP, REINFORCEMENT

Note: Use up to Engine SN 6006487. (Honda Code 3678976).

$6.99

$

In Stock, only 1 left!

0

16

Honda 90004-ZE2-W01

SCREW, CENTER

Note: (Honda Code 3679024).

$4.49

$

In Stock, only 1 left!

0

17

Honda 96001-06010-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X10)

Note: (Honda Code 2154656).

$2.49

$

Usually ships in 3-6 days

0
