GXV340 T2 DP23 (GEABT) - Honda Engine, Made in Thailand (SN: GEABT-1000001 - GEABT-9999999) MUFFLER (2) Parts Diagram

Engine, Made in Thailand

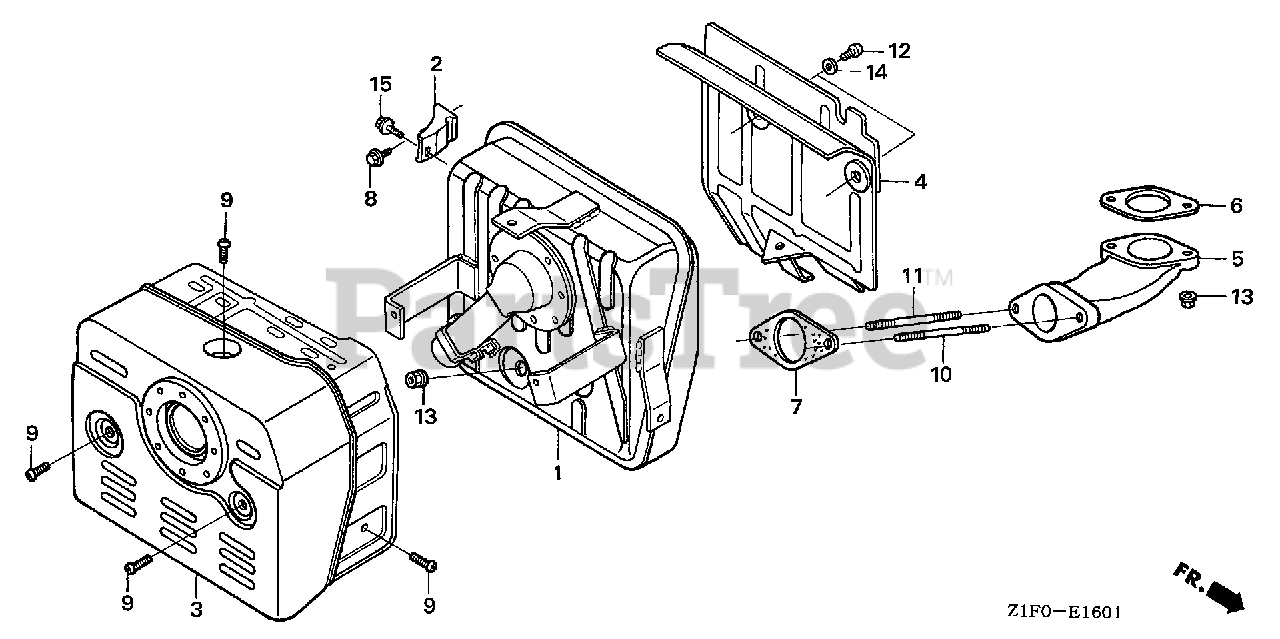

MUFFLER (2) Parts Diagram

  • Title

1

Honda 18310-Z1E-900

MUFFLER (NOT AVAILABLE)

$

$

Currently unavailable

2

Honda 18318-ZE8-000

STAY, MUFFLER (Honda Code 2106284).

$12.99

$

Usually ships in 3-6 days

0

3

Honda 18320-Z1E-900

PROTECTOR, MUFFLER (NOT AVAILABLE)

$

$

Currently unavailable

4

Honda 18325-ZE9-010

SEE PART DETAILS - PRI; SEPARATOR, MUFFLER (Honda Code 4542478).

$33.99

$

Usually ships in 3-6 days

0

5

Honda 18330-ZE9-000

PIPE, EX. (Honda Code 2271518).

$93.99

$

Usually ships in 3-6 days

0

6

Honda 18333-ZE3-800

SEE PART DETAILS - SUP; GASKET, EX. PIPE Use up to Engine SN 2949254.
(Superseded to 18333-ZK6-Y00)

Note: Use up to Engine SN 1017659.

$5.99

$

Usually ships in 3-6 days

0

6

Honda 18333-ZK6-Y00

SEE PART DETAILS - PRI; GASKET, EX. PIPE (WACKER) (Honda Code 5164199).

Note: Use up to Engine SN 1017659.

$5.99

$

Usually ships in 3-6 days

0

6

Honda 18333-Z1C-801

GASKET, EX. PIPE

Note: Use from Engine SN 1017660.

$4.49

$

In Stock, Qty 12

0

7

Honda 18382-ZE9-800

SEE PART DETAILS - PRI; GASKET, EX. PIPE (Honda Code 4455473).

Note: Use up to Engine SN 1000205.

$14.99

$

In Stock, only 1 left!

0

7

Honda 18382-Z1F-801

GASKET, EX. PIPE

Note: Use from Engine SN 1000206.

$8.99

$

Usually ships in 3-6 days

0

8

Honda 90031-883-000

BOLT, FLANGE (8X16) (Honda Code 0674473).

$6.49

$

In Stock, only 1 left!

0

9

Honda 90050-ZE1-000

SCREW, TAPPING (5X8) (Honda Code 1431105).

$2.49

$

In Stock, Qty 20+

0

10

Honda 92900-08060-1B

BOLT, STUD (8X60) (Honda Code 1869692).

$4.49

$

In Stock, only 1 left!

0

11

Honda 92900-08070-1B

BOLT, STUD (8X70) (Honda Code 2106680).

$4.49

$

In Stock, only 1 left!

0

12

Honda 93500-06006-0A

SEE PART DETAILS - PRI; SCREW, PAN (6X6) (Honda Code 1808013).

$1.49

$

Usually ships in 3-6 days

0

13

Honda 94050-08000

SEE PART DETAILS - PRI; NUT, FLANGE (8MM) (Honda Code 0481143).

$1.49

$

In Stock, Qty 20+

0

14

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM) (Honda Code 0345900).

$0.99

$

In Stock, Qty 20+

0

15

Honda 95701-08014-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X14) (Honda Code 2529105).

$1.99

$

In Stock, Qty 20+

0
