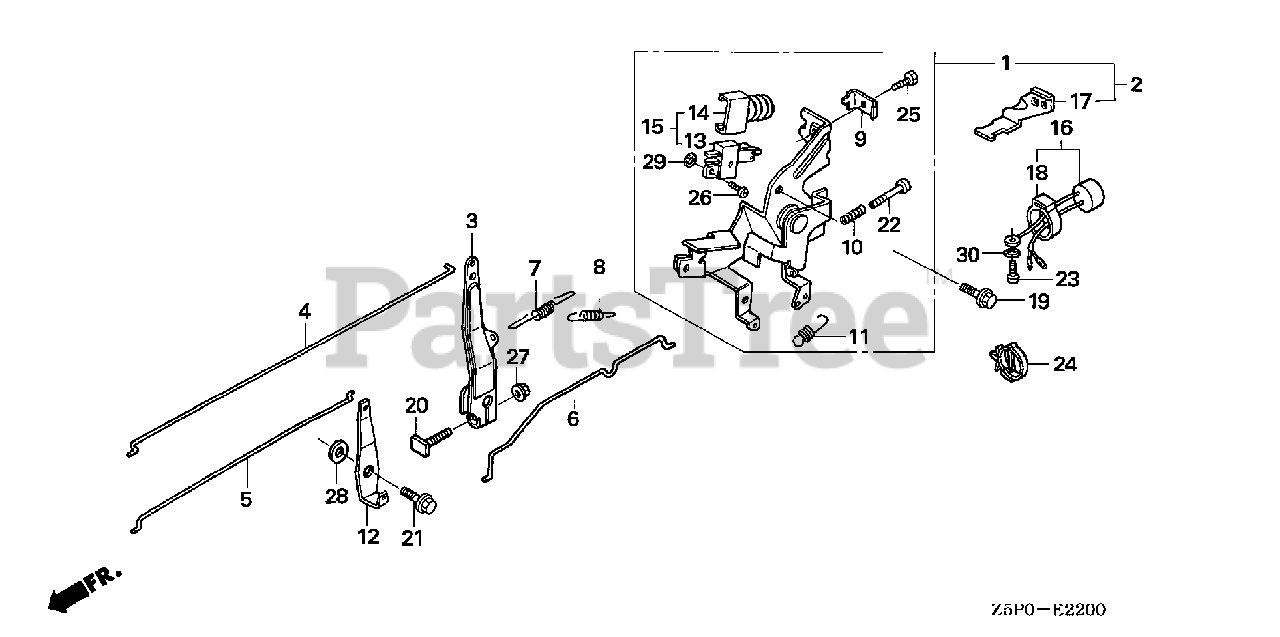

GXV340 UA2 DAS (GJAMA) - Honda Engine, Made in USA (SN: GJAMA-1000001 - GJAMA-9999999) CONTROL Parts Diagram

Engine, Made in USA

CONTROL Parts Diagram

  • Title

1

Honda 16500-ZF5-U11

CONTROL ASSY. (AYP)

$53.99

$

Usually ships in 3-6 days

0

3

Honda 16551-ZF5-000

ARM, GOVERNOR

$15.99

$

Usually ships in 3-6 days

0

4

Honda 16555-ZE9-000

ROD, GOVERNOR

$5.49

$

In Stock, only 1 left!

0

5

Honda 16556-ZE9-000

ROD, CHOKE

$4.49

$

In Stock, only 1 left!

0

6

Honda 16557-ZE8-810

ROD, JOINT

$4.49

$

In Stock, only 1 left!

0

7

Honda 16561-ZF5-000

SPRING, GOVERNOR

$4.99

$

In Stock, only 1 left!

0

8

Honda 16563-ZE8-000

SPRING, GOVERNOR PRIMARY

$

$

Not available

9

Honda 16576-891-000

HOLDER, CABLE

$4.99

$

In Stock, only 2 left!

0

10

Honda 16584-883-300

SPRING, CONTROL ADJUSTING

$4.99

$

In Stock, only 1 left!

0

11

Honda 16592-732-700

SPRING, CABLE RETURN

$4.99

$

In Stock, only 1 left!

0

12

Honda 16619-ZF5-000

LEVER, CHOKE JOINT

$6.99

$

In Stock, only 1 left!

0

19

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

$1.99

$

In Stock, Qty 13

0

20

Honda 90015-ZE5-010

BOLT, GOVERNOR ARM

$3.49

$

In Stock, only 2 left!

0

21

Honda 90015-ZE8-000

BOLT, FLANGE (6MM)

$2.99

$

In Stock, only 1 left!

0

22

Honda 93500-05020-0A

SCREW, PAN (5X20)

$1.49

$

Usually ships in 3-6 days

0

25

Honda 92301-05014-0A

BOLT, RECESSED (5X14)

$

$

Currently unavailable

27

Honda 94050-06000

NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 20+

0

28

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM)

$0.99

$

In Stock, Qty 20+

0
