GXV390 DAT (GJAA) - Honda Engine, Made in Japan (SN: GJAA-1000001 - GJAA-2063521) CYLINDER Parts Diagram

Engine, Made in Japan

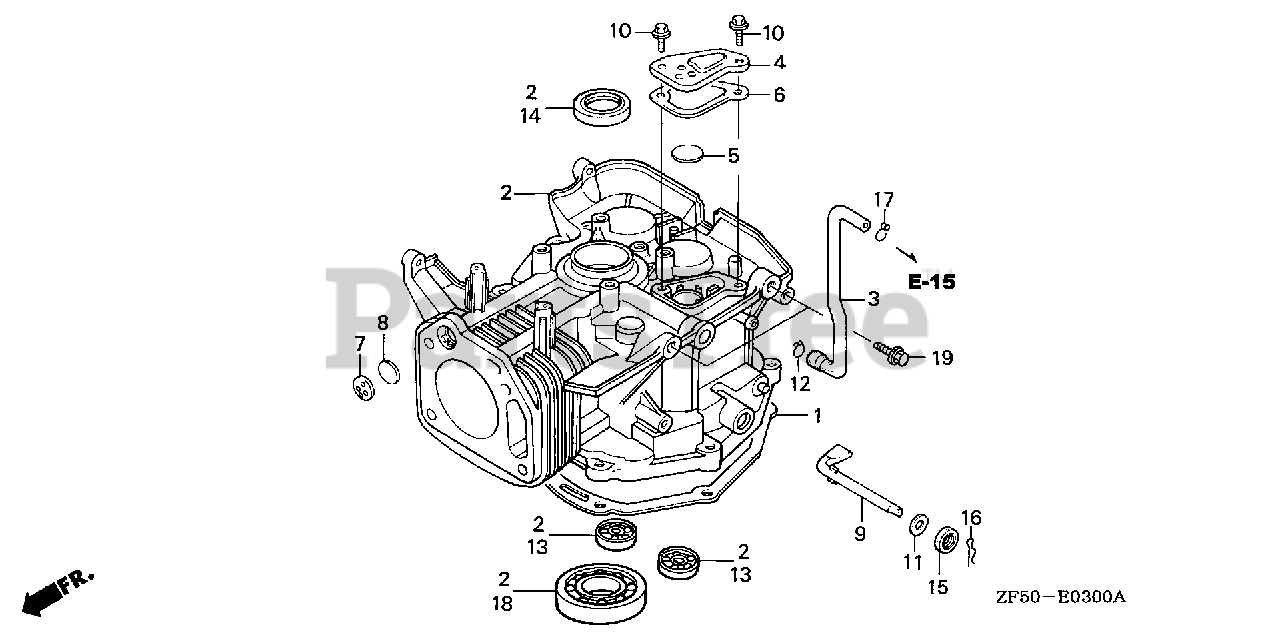

CYLINDER Parts Diagram

  • Title

1

Honda 11381-ZE9-306

SEE PART DETAILS - SUP; GASKET, OIL PAN
(Superseded to 11381-ZE9-800)

$18.99

$

In Stock, Qty 9

0

1

Honda 11381-ZE9-800

SEE PART DETAILS - PRI; GASKET, OIL PAN
(Superseded to 11381-ZE9-801)

$18.99

$

In Stock, Qty 9

0

2

Honda 12000-ZF5-040

SEE PART DETAILS - SUP; CYLINDER ASSY.

$

$

Currently unavailable

2

Honda 12000-ZF5-405

SEE PART DETAILS - SUP; CYLINDER ASSY.

$

$

Currently unavailable

3

Honda 12315-ZF5-000

TUBE, BREATHER

$10.99

$

In Stock, Qty 9

0

4

Honda 12370-ZF5-000

CAP, BREATHER CHAMBER

$10.99

$

Usually ships in 3-6 days

0

5

Honda 12372-ZE2-300

VALVE, BREATHER

$4.49

$

In Stock, only 2 left!

0

6

Honda 12373-ZE8-000

GASKET, BREATHER CAP

$3.99

$

In Stock, Qty 7

0

9

Honda 16541-ZE8-010

SEE PART DETAILS - PRI; SHAFT, GOVERNOR ARM

$16.99

$

Usually ships in 3-6 days

0

10

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

$2.49

$

In Stock, Qty 20+

0

11

Honda 90406-VM6-000

WASHER, THRUST (8.1MM)

$3.99

$

Usually ships in 3-6 days

0

12

Honda 90652-MB1-000

CLIP, TUBE

$1.99

$

In Stock, Qty 5

0

13

Honda 91001-ZF5-003

BEARING, RADIAL BALL (6202)

$20.99

$

Usually ships in 3-6 days

0

14

Honda 91201-ZE3-004

OIL SEAL (35X52X8)

$12.99

$

In Stock, Qty 5

0

15

Honda 91201-ZE9-003

SEE PART DETAILS - PRI; OIL SEAL (8X14X5)

$5.99

$

In Stock, only 2 left!

0

15

Honda 91203-952-771

SEE PART DETAILS - SUP; OIL SEAL (8X14X5)
(Superseded to 91201-ZE9-003)

$5.99

$

In Stock, only 2 left!

0

16

Honda 94251-08000

PIN, LOCK (8MM)

$1.99

$

In Stock, Qty 14

0

17

Honda 95002-70000

CLIP, TUBE (C11)

$2.49

$

In Stock, Qty 12

0
