GXV390 DAT (GJAA) - Honda Engine, Made in Japan (SN: GJAA-1000001 - GJAA-2063521) RECOIL STARTER (2) Parts Diagram

Engine, Made in Japan

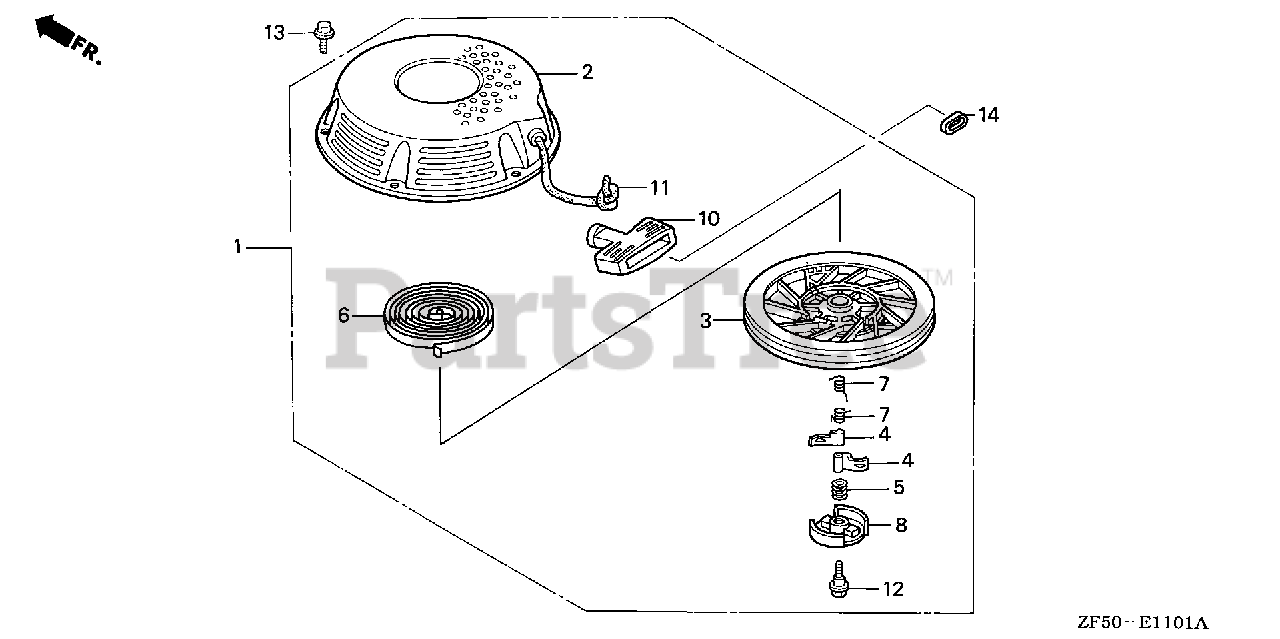

RECOIL STARTER (2) Parts Diagram

  • Title

1

Honda 28400-ZE8-004ZB

SEE PART DETAILS - SUP; STARTER ASSY., RECOIL *R8* (BRIGHT RED)

Note: Use from Engine SN 2013099.

$

$

Currently unavailable

2

Honda 28410-ZE8-004ZB

SEE PART DETAILS - SUP; CASE, RECOIL STARTER *R8* (BRIGHT RED)

Note: Use from Engine SN 2013099.

$

$

Currently unavailable

3

Honda 28421-ZE3-W01

PULLEY, RECOIL STARTER

Note: Use from Engine SN 2013099.

$41.99

$

In Stock, only 1 left!

0

4

Honda 28422-ZE2-W01

RATCHET, STARTER

Note: Use from Engine SN 2013099.

$6.99

$

In Stock, only 4 left!

0

5

Honda 28441-ZE2-W01

SPRING, FRICTION

Note: Use from Engine SN 2013099.

$5.99

$

In Stock, only 4 left!

0

6

Honda 28442-ZE2-W01

SPRING, STARTER RETURN

Note: Use from Engine SN 2013099.

$17.99

$

In Stock, only 3 left!

0

7

Honda 28443-ZE2-W01

SPRING, RATCHET

Note: Use from Engine SN 2013099.

$4.99

$

In Stock, only 1 left!

0

8

Honda 28444-ZE2-W01

RETAINER, SPRING

Note: Use from Engine SN 2013099.

$13.99

$

Usually ships in 3-6 days

0

10

Honda 28461-ZE2-W02

SEE PART DETAILS - SUP; GRIP, STARTER
(Superseded to 28461-ZE2-W03)

Note: Use from Engine SN 2013099.

$7.49

$

In Stock, only 4 left!

0

11

Honda 28462-ZE8-004

SEE PART DETAILS - PRI; ROPE, RECOIL STARTER

Note: Use from Engine SN 2013099.

$

$

Not available

12

Honda 90004-ZE2-W01

SCREW, CENTER

Note: Use from Engine SN 2013099.

$3.99

$

In Stock, only 1 left!

0

13

Honda 96001-06010-00

BOLT, FLANGE (6X10)

Note: Use from Engine SN 2013099.

$1.99

$

Usually ships in 3-6 days

0
