GXV390 DNE3 (GJAA) - Honda Engine, Made in Japan (SN: GJAA-2000001 - GJAA-2063521) OIL PAN Parts Diagram

Engine, Made in Japan

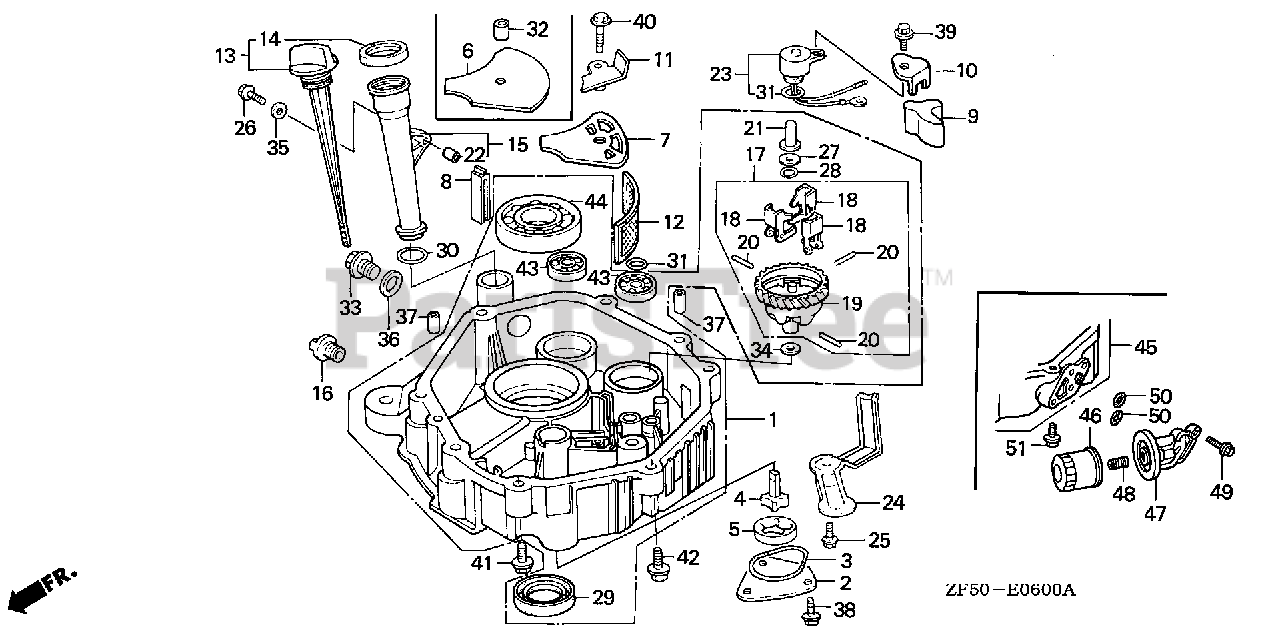

OIL PAN Parts Diagram

  • Title

2

Honda 15130-ZE8-000

COVER, OIL PUMP

$10.99

$

Usually ships in 3-6 days

0

3

Honda 15131-ZE9-003

SEE PART DETAILS - PRI; O-RING, PUMP COVER

$4.99

$

In Stock, Qty 9

0

4

Honda 15330-ZE8-000

ROTOR (INNER)

$25.99

$

Usually ships in 3-6 days

0

5

Honda 15332-891-003

ROTOR, OIL PUMP (OUTER)

$20.99

$

Usually ships in 3-6 days

0

6

Honda 15334-ZE8-010

PLATE, OIL FILTER

$4.99

$

Usually ships in 3-6 days

0

8

Honda 15335-ZE9-000

RUBBER, OIL RETURN

$6.49

$

Usually ships in 3-6 days

0

12

Honda 15421-ZE9-003

SCREEN, OIL FILTER

$17.99

$

In Stock, Qty 7

0

13

Honda 15600-ZF5-000

CAP ASSY., OIL FILLER
(Superseded to 15600-Z5N-800)

$4.99

$

In Stock, only 2 left!

0

14

Honda 15625-ZE8-000

SEE PART DETAILS - PRI; GASKET, OIL FILLER CAP

$5.99

$

In Stock, Qty 9

0

15

Honda 15630-ZE8-000

EXTENSION, OIL FILLER
(Superseded to 15630-Z5N-800)

$6.49

$

In Stock, Qty 11

0

17

Honda 16510-ZE3-000

GOVERNOR ASSY.

Note: Use from Engine SN 2025253.

$35.99

$

In Stock, Qty 9

0

17

Honda 16510-ZE8-000

GOVERNOR ASSY.

Note: Use up to Engine SN 2025252.

$24.99

$

Usually ships in 3-6 days

0

18

Honda 16511-ZE8-000

WEIGHT, GOVERNOR

$8.49

$

Usually ships in 3-6 days

0

19

Honda 16512-ZE3-000

HOLDER, GOVERNOR WEIGHT

Note: Use from Engine SN 2025253.

$20.99

$

Usually ships in 3-6 days

0

19

Honda 16512-ZE8-000

HOLDER, GOVERNOR WEIGHT

Note: Use up to Engine SN 2025252.

$21.99

$

Usually ships in 3-6 days

0

20

Honda 16513-ZE2-000

PIN, GOVERNOR WEIGHT

$2.49

$

Usually ships in 3-6 days

0

21

Honda 16531-Z0A-000

SEE PART DETAILS - PRI; SLIDER, GOVERNOR

$4.49

$

In Stock, only 1 left!

0

22

Honda 17240-ZE6-000

COLLAR, EXTENSION

$5.49

$

In Stock, only 2 left!

0

26

Honda 90014-ZE6-000

BOLT, FLANGE (6X35) (CT200)

$2.99

$

In Stock, Qty 6

0

28

Honda 90602-ZE1-000

SEE PART DETAILS - PRI; CLIP, GOVERNOR HOLDER

$1.99

$

In Stock, Qty 8

0

29

Honda 91201-ZE3-004

OIL SEAL (35X52X8)

$12.99

$

In Stock, Qty 5

0

30

Honda 91301-ZE9-003

SEE PART DETAILS - PRI; O-RING (22.1X2.2)

$2.99

$

In Stock, Qty 13

0

31

Honda 91302-ZE9-003

O-RING (11.8X2.4)

$3.99

$

In Stock, Qty 9

0

32

Honda 91501-ZF5-000

COLLAR, OIL FILTER SETTING

$4.49

$

Usually ships in 3-6 days

0

33

Honda 92800-20000

BOLT, DRAIN PLUG (20MM)

$7.99

$

In Stock, only 2 left!

0

34

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM)

$0.99

$

In Stock, Qty 20+

0

36

Honda 94109-20000

WASHER, DRAIN PLUG (20MM)

$1.99

$

In Stock, Qty 15

0

37

Honda 90701-HC4-000

PIN, DOWEL (8X12)

$4.49

$

In Stock, only 2 left!

0

38

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

$2.49

$

In Stock, Qty 19

0

40

Honda 95701-06025-00

BOLT, FLANGE (6X25)

$2.99

$

In Stock, only 3 left!

0

41

Honda 95701-08040-08

BOLT, FLANGE (8X40)

$3.49

$

In Stock, only 2 left!

0

43

Honda 96100-62020-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6202)

Note: Use up to Engine SN 2052276.

$13.99

$

In Stock, only 2 left!

0

44

Honda 96100-62070-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6207)

$60.99

$

In Stock, only 2 left!

0

44

Honda 96100-62073-00

SEE PART DETAILS - SUP; BEARING, RADIAL BALL (6207)
(Superseded to 96100-62070-00)

$60.99

$

In Stock, only 2 left!

0

45

Honda 11300-ZF5-W01

PAN ASSY., OIL

Note: Use up to Engine SN 2096792.

$449.99

$

Usually ships in 3-6 days

0

45

Honda 11300-ZF5-W02

PAN ASSY., OIL

Note: Use from Engine SN 2096793.

$449.99

$

Usually ships in 3-6 days

0

46

Honda 15400-PLM-A01PE

SEE PART DETAILS - PRI; FILTER, OIL (FILTECH TOYO ROKI) (SOLD INDIVIDUALLY)
(Superseded to 15400-PLM-A02PE)

$14.99

$

In Stock, Qty 12

0

46

Honda 15400-ZJ1-004

SEE PART DETAILS - SUP; FILTER, OIL (TOYO ROKI) (SOLD INDIVIDUALLY)
(Superseded to 15400-PLM-A02PE)

$14.99

$

In Stock, Qty 12

0

47

Honda 15411-ZF5-W00

BASE, OIL FILTER

$186.99

$

Usually ships in 3-6 days

0

48

Honda 90018-PN3-000

HOLDER, OIL FILTER

$10.99

$

In Stock, only 1 left!

0

49

Honda 90121-952-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X25) (CT200)

$3.49

$

In Stock, Qty 7

0

50

Honda 91303-HA0-004

O-RING (11X1.9) (NOK)

$2.99

$

In Stock, only 2 left!

0

51

Honda 95701-08060-08

BOLT, FLANGE (8X60)

$3.49

$

Usually ships in 3-6 days

0
