GXV390 K1 DAS (GJAA) - Honda Engine, Made in USA (SN: GJAA-6000001 - GJAA-9999999) CARBURETOR (1) Parts Diagram

Engine, Made in USA

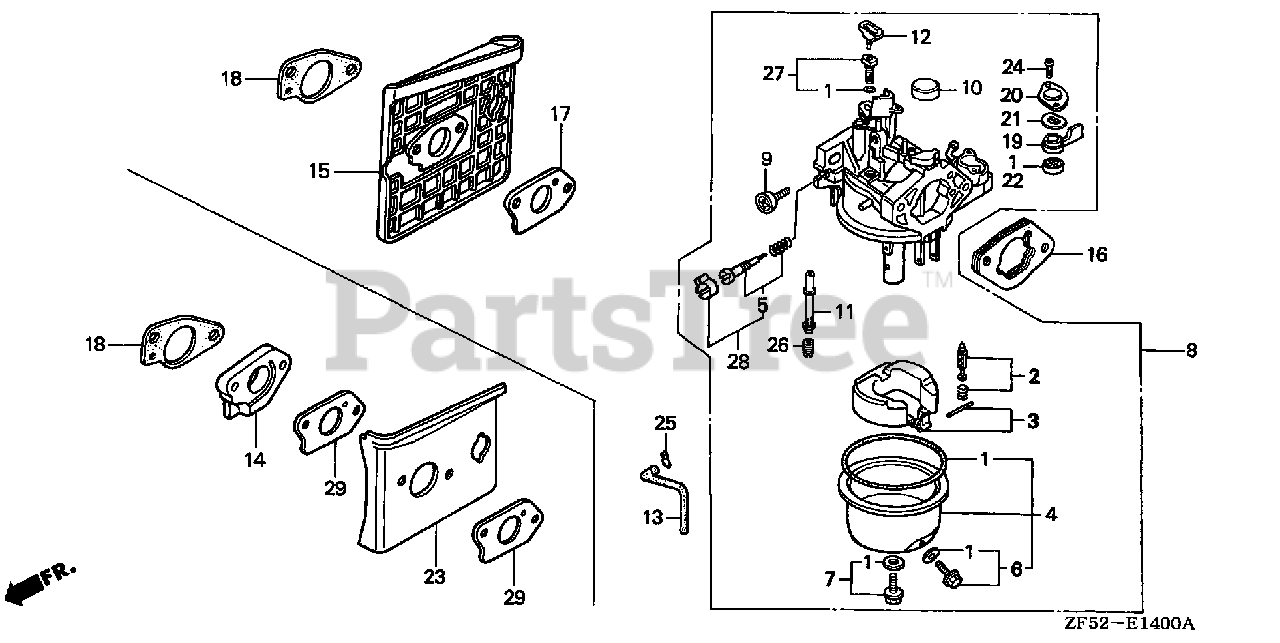

CARBURETOR (1) Parts Diagram

  • Title

1

Honda 16010-ZE2-015

SEE PART DETAILS - PRI; GASKET SET (EXC. 16173-001-004) (EXCEPT 16173-001-004)

$21.99

$

In Stock, only 1 left!

0

2

Honda 16011-ZA0-931

VALVE SET, FLOAT

$49.99

$

In Stock, Qty 7

0

3

Honda 16013-ZA0-931

FLOAT SET

$55.99

$

In Stock, only 2 left!

0

4

Honda 16015-ZE8-005

SEE PART DETAILS - PRI; CHAMBER SET, FLOAT

$49.99

$

In Stock, only 1 left!

0

6

Honda 16024-ZE1-811

SCREW SET, DRAIN

$11.99

$

In Stock, only 1 left!

0

7

Honda 16028-ZE0-005

SEE PART DETAILS - SUP; SCREW SET
(Superseded to 16028-ZK7-S91)

$14.99

$

In Stock, only 2 left!

0

7

Honda 16028-ZK7-S91

SEE PART DETAILS - PRI; SCREW SET

$14.99

$

In Stock, only 2 left!

0

8

Honda 16100-ZF5-V22

CARBURETOR ASSY. (BE86F B)

$

$

Not available

9

Honda 16124-ZE0-005

SCREW, THROTTLE STOP

$20.99

$

In Stock, only 2 left!

0

10

Honda 16148-141-881

CAP, CHOKE DUST

$7.49

$

Usually ships in 3-6 days

0

11

Honda 16166-ZF5-V20

NOZZLE, MAIN

$

$

Not available

12

Honda 16172-ZE3-W10

COLLAR, SETTING

$11.99

$

Usually ships in 3-6 days

0

13

Honda 16199-ZE8-000

TUBE, AIR VENT (75MM)

$6.49

$

Usually ships in 3-6 days

0

15

Honda 16211-ZF5-003

INSULATOR, CARBURETOR

$

$

Not available

16

Honda 16220-ZA0-702

SEE PART DETAILS - PRI; SPACER, CARBURETOR

$13.99

$

In Stock, Qty 15

0

17

Honda 16221-ZF6-800

GASKET, CARBURETOR

$2.99

$

In Stock, Qty 20+

0

18

Honda 16223-ZE9-800

GASKET, INSULATOR

$3.49

$

In Stock, Qty 9

0

19

Honda 16953-ZE1-712

LEVER, PETCOCK

$11.99

$

Usually ships in 3-6 days

0

20

Honda 16954-ZE1-812

SEE PART DETAILS - PRI; PLATE, LEVER SETTING

$4.99

$

In Stock, Qty 8

0

21

Honda 16956-ZE1-811

SEE PART DETAILS - PRI; SPRING, PETCOCK LEVER

$4.99

$

In Stock, only 2 left!

0

22

Honda 16957-ZE1-812

SEE PART DETAILS - PRI; GASKET, PETCOCK

$4.99

$

In Stock, only 3 left!

0

24

Honda 93500-03006-0H

SCREW, PAN (3X6)

$1.49

$

In Stock, Qty 10

0

25

Honda 95002-02080

CLIP, TUBE (B8)

$2.99

$

In Stock, Qty 20+

0

26

Honda 99101-ZH8-0880

SEE PART DETAILS - PRI; JET, MAIN (#88)

$8.99

$

In Stock, only 2 left!

0

26

Honda 99101-ZH8-0900

SEE PART DETAILS - PRI; JET, MAIN (#90)

$8.99

$

In Stock, only 1 left!

0

26

Honda 99101-ZH8-0920

JET, MAIN (#92)

$8.99

$

In Stock, only 1 left!

0

27

Honda 99204-ZE2-0400

SEE PART DETAILS - PRI; JET SET, PILOT (#40)

$25.99

$

In Stock, only 4 left!

0

28

Honda 16016-ZH7-W01

SCREW SET, PILOT (CARBURETOR NO.)

$23.99

$

In Stock, only 4 left!

0
