GXV390 K1 DP23 (GEAD) - Honda Engine, Made in USA (SN: GEAD-6000001 - GEAD-9999999) FAN COVER (2) Parts Diagram

Engine, Made in USA

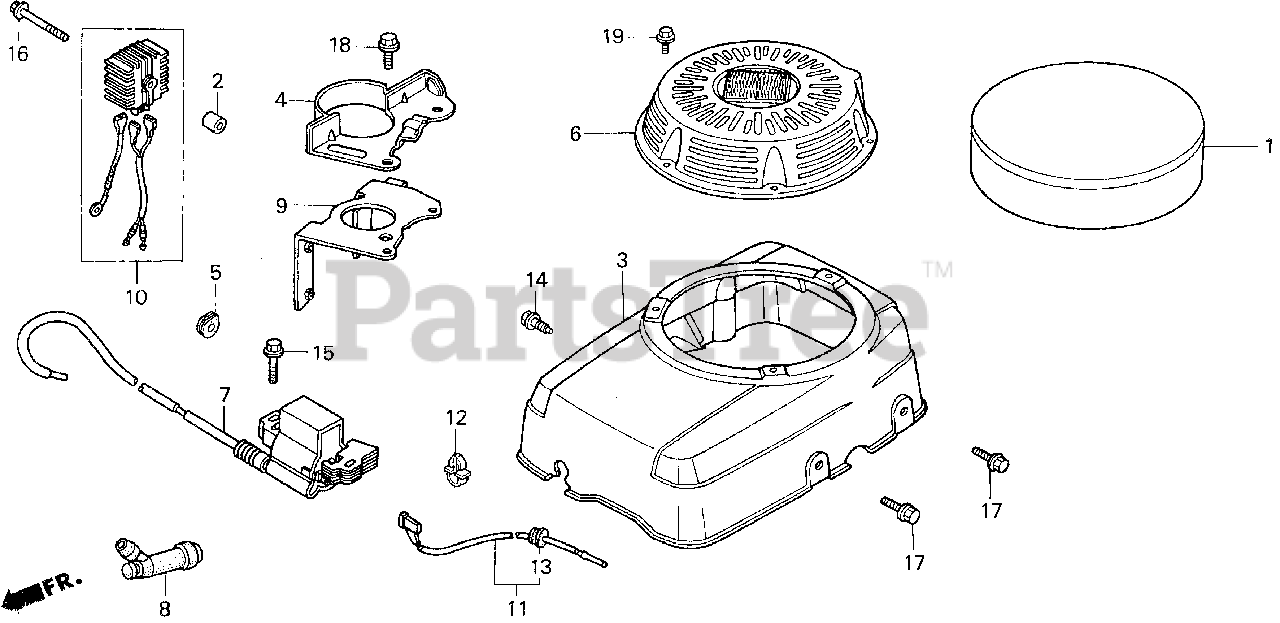

FAN COVER (2) Parts Diagram

  • Title

1

Honda 17215-ZF5-800

FILTER COMP., AIR

Note: (Honda Code 5173372).

$31.99

$

Usually ships in 3-6 days

0

2

Honda 17239-ZE8-700

SPACER, AIR CLEANER ELBOW

Note: (Honda Code 2090223).

$6.49

$

Usually ships in 3-6 days

0

3

Honda 19610-ZF5-801ZA

SEE PART DETAILS - PRI; COVER COMP., FAN *R8* (BRIGHT RED)

Note: (Honda Code 4542502).

$

$

Currently unavailable

4

Honda 19611-ZE8-901

SEE PART DETAILS - PRI; PLATE COMP., SIDE

Note: (Honda Code 2409571).

$24.99

$

Usually ships in 3-6 days

0

5

Honda 19613-ZA8-000

GROMMET, WIRE

Note: (Honda Code 1787951).

$4.49

$

Usually ships in 3-6 days

0

6

Honda 19613-ZF5-V00

HOOD COMP., FAN COVER

Note: (Honda Code 5173398).

$

$

Not available

7

Honda 30500-ZE9-L32

SEE PART DETAILS - SUP; COIL ASSY., IGNITION
(Superseded to 30500-Z1C-023)

Note: (Honda Code 4542528).

$63.99

$

In Stock, only 1 left!

0

8

Honda 30700-ZF5-013

SEE PART DETAILS - PRI; CAP ASSY., NOISE SUPPRESSOR

Note: (Honda Code 3803467).

$28.99

$

In Stock, only 2 left!

0

9

Honda 31255-ZE8-901

SEE PART DETAILS - PRI; STAY COMP., STARTER

Note: (Honda Code 2409662).

$40.99

$

Usually ships in 3-6 days

0

10

Honda 31700-ZE8-901

RECTIFIER ASSY., SILICON

Note: (Honda Code 2324176).

$140.99

$

Usually ships in 3-6 days

0

11

Honda 36101-ZE8-810

WIRE, STOP SWITCH

Note: (Honda Code 2461739).

$31.99

$

Usually ships in 3-6 days

0

12

Honda 36103-ZE1-000

HOLDER, STOP SWITCH WIRE

Note: (Honda Code 1429141).

$2.99

$

Usually ships in 3-6 days

0

13

Honda 80101-166-000

GROMMET, WIRE

Note: (Honda Code 1085471).

$3.99

$

Usually ships in 3-6 days

0

14

Honda 90013-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200)

Note: (Honda Code 0636845).

$2.49

$

In Stock, Qty 20+

0

15

Honda 90015-883-000

BOLT, FLANGE (6X28)

Note: (Honda Code 0636852).

$4.49

$

In Stock, only 4 left!

0

16

Honda 95701-06040-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X40)

Note: (Honda Code 2410942).

$2.99

$

Usually ships in 3-6 days

0

17

Honda 95701-08016-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X16)

Note: (Honda Code 2298396).

$2.99

$

In Stock, Qty 20+

0

18

Honda 95801-08028-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X28)

Note: (Honda Code 4150074).

$2.49

$

Usually ships in 3-6 days

0

19

Honda 96001-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

Note: (Honda Code 2105930).

$2.99

$

In Stock, Qty 5

0
