GXV390 UT1 DX2 (GJADT) - Honda Engine, Made in Thailand (SN: GJADT-1000001 - GJADT-9999999) FUEL TANK Parts Diagram

Engine, Made in Thailand

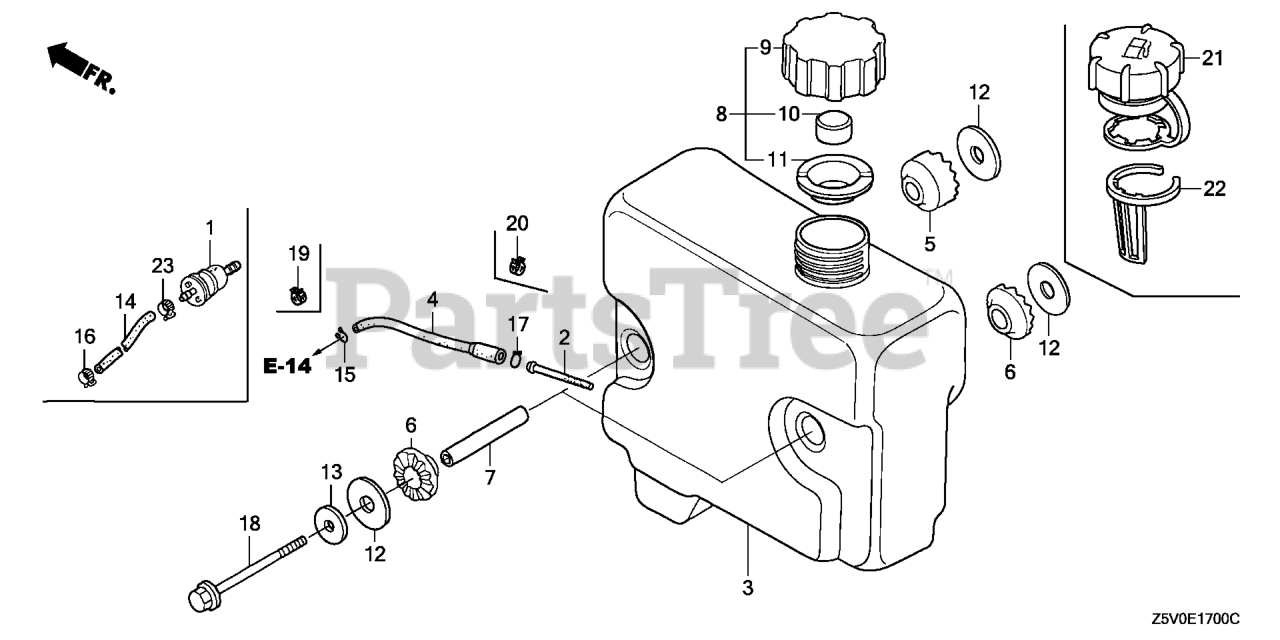

FUEL TANK Parts Diagram

  • Title

2

Honda 16952-ZE6-000

FILTER, FUEL (Honda Code 1452945).

$9.49

$

In Stock, Qty 18

0

3

Honda 17510-ZE9-000

TANK, FUEL (Honda Code 2278646).

Note: Use up to Engine SN 1019651.

$115.99

$

Usually ships in 3-6 days

0

3

Honda 17511-Z5N-000

TANK, FUEL

Note: Use from Engine SN 1019652 to 1044449.

$62.99

$

Usually ships in 3-6 days

0

3

Honda 17511-Z5N-801

SEE PART DETAILS - PRI; TANK, FUEL

Note: Use from Engine SN 1044450.

$90.99

$

In Stock, only 1 left!

0

4

Honda 17512-ZE9-000

SEE PART DETAILS - PRI; TUBE, FUEL (Honda Code 2278653).

Note: Use up to Engine SN 1003217.

$10.99

$

In Stock, Qty 11

0

4

Honda 17512-Z5N-033

TUBE, FUEL (FKM)

Note: Use from Engine SN 1068389. Use from Engine SN 1003218 to 1068388.

$11.99

$

Usually ships in 3-6 days

0

5

Honda 17516-ZE8-000

RUBBER B, TANK MOUNTING (Honda Code 2106250).

$9.99

$

Usually ships in 3-6 days

0

6

Honda 17516-896-700

RUBBER B, TANK MOUNTING (Honda Code 0933416).

$8.99

$

In Stock, only 2 left!

0

7

Honda 17518-ZE8-000

COLLAR, TANK SETTING (Honda Code 2106268).

$10.99

$

Usually ships in 3-6 days

0

8

Honda 17620-ZE7-000

SEE PART DETAILS - PRI; CAP ASSY., FUEL TANK (Honda Code 2289833).
(Superseded to 17620-ZG9-000)

Note: Use up to Engine SN 1019651.

$12.99

$

In Stock, only 3 left!

0

8

Honda 17620-ZG9-000

SEE PART DETAILS - PRI; CAP ASSY., FUEL TANK (Honda Code 3307378).

Note: Use up to Engine SN 1019651.

$12.99

$

In Stock, only 3 left!

0

9

Honda 17621-ZE6-000

BODY, FUEL CAP (Honda Code 1453125).

Note: Use up to Engine SN 1019651.

$14.99

$

Usually ships in 3-6 days

0

10

Honda 17622-888-010

SEE PART DETAILS - PRI; SPONGE, FUEL CAP BREATHER (Honda Code 0810341).

Note: Use up to Engine SN 1019651.

$2.49

$

In Stock, only 4 left!

0

11

Honda 17624-ZE7-000

SEE PART DETAILS - PRI; GASKET, FUEL CAP (Honda Code 2507689).

Note: Use up to Engine SN 1019651.

$4.99

$

Usually ships in 3-6 days

0

12

Honda 90455-896-700

WASHER, TANK MOUNTING (Honda Code 0933325).

$3.99

$

In Stock, only 2 left!

0

13

Honda 90471-SB0-000

WASHER, PLAIN (8MM)

$8.99

$

Usually ships in 3-6 days

0

15

Honda 95002-02080

CLIP, TUBE (B8) (Honda Code 0250647).

Note: Use up to Engine SN 1003217.

$2.49

$

In Stock, Qty 20+

0

17

Honda 95002-70000

CLIP, TUBE (C11) (Honda Code 0053595).

Note: Use up to Engine SN 1003217.

$2.49

$

In Stock, Qty 20+

0

18

Honda 95701-08095-00

BOLT, FLANGE (8X95)

$2.49

$

Usually ships in 3-6 days

0

19

Honda 95002-40800-08

SEE PART DETAILS - PRI; CLIP, TUBE (D8) (Honda Code 0660811).

Note: Use from Engine SN 1003218.

$2.99

$

In Stock, Qty 15

0

20

Honda 95002-41050-08

SEE PART DETAILS - PRI; CLIP, TUBE (10.5MM)

Note: Use from Engine SN 1003218.

$3.49

$

In Stock, only 3 left!

0

21

Honda 17620-Z0J-800

CAP ASSY., FUEL TANK
(Superseded to 17620-Z8B-800)

Note: Use from Engine SN 1019652.

$23.99

$

In Stock, Qty 13

0

21

Honda 17620-Z8B-800

CAP ASSY., FUEL TANK

Note: Use from Engine SN 1019652.

$23.99

$

In Stock, Qty 13

0

22

Honda 17636-Z5N-000

GAUGE, FUEL LEVEL

Note: Use from Engine SN 1019652.

$8.49

$

Usually ships in 3-6 days

0
