GXV50 SAR (GJAG) - Honda Engine, Made in Japan (SN: GJAG-1000001 - GJAG-1099999) PISTON + CONNECTING ROD Parts Diagram

Engine, Made in Japan

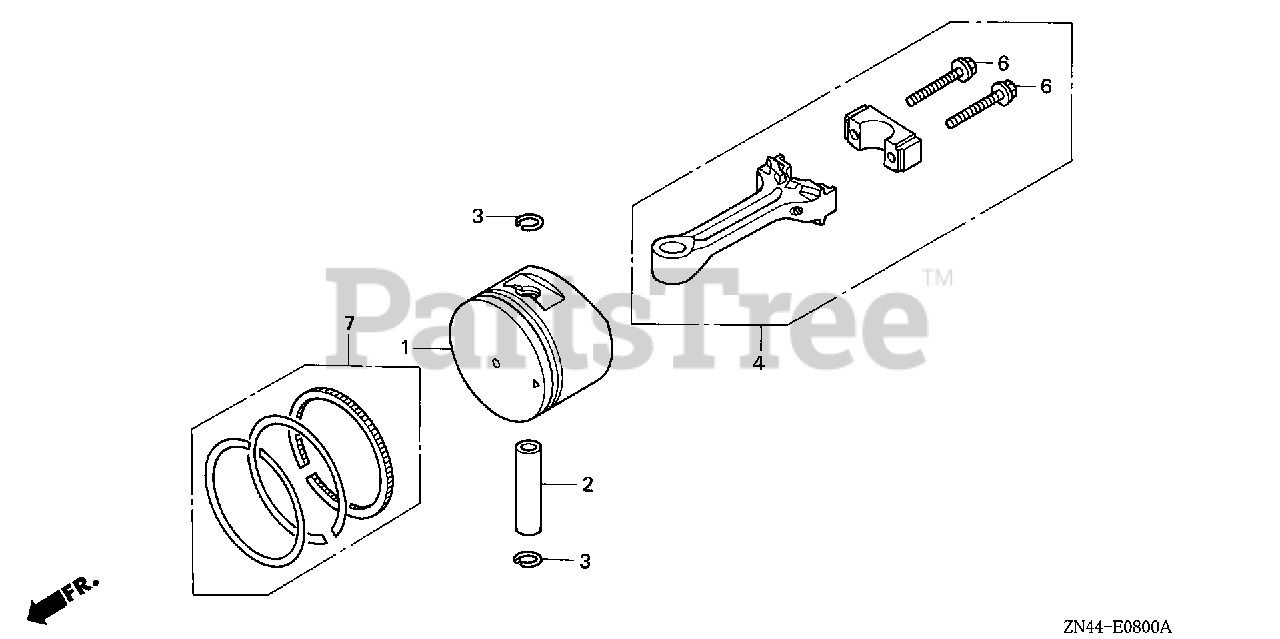

PISTON + CONNECTING ROD Parts Diagram

  • Title

1

Honda 13101-ZM7-010

PISTON (STD)
(Superseded to 13101-ZDF-000)

Note: Use from Engine SN 1032237. (Honda Code 6877187).

$51.99

$

Usually ships in 3-6 days

0

1

Honda 13101-ZM7-303

PISTON
(Superseded to 13101-ZDF-000)

Note: Use up to Engine SN 1032236. (Honda Code 6587349).

$51.99

$

Usually ships in 3-6 days

0

2

Honda 13111-GS7-000

PIN, PISTON

Note: (Honda Code 2754323).

$13.99

$

Usually ships in 3-6 days

0

3

Honda 13115-147-000

CLIP, PISTON PIN (10MM)

Note: (Honda Code 0463380).

$2.99

$

Usually ships in 3-6 days

0

4

Honda 13200-ZN4-000

ROD ASSY., CONNECTING

Note: (Honda Code 5988258).

$

$

Currently unavailable

6

Honda 90001-ZM7-000

BOLT, CONNECTING ROD

Note: (Honda Code 5988910).

$2.49

$

In Stock, only 1 left!

0

7

Honda 13010-ZM7-000

RING SET, PISTON (STD)

Note: (Honda Code 6005532).

$18.99

$

Usually ships in 3-6 days

0
