GXV57 U N7E1 (GJAJK) - Honda Engine, Made in Japan (SN: GJAJK-1000001 - GJAJK-9999999) CONTROL Parts Diagram

Engine, Made in Japan

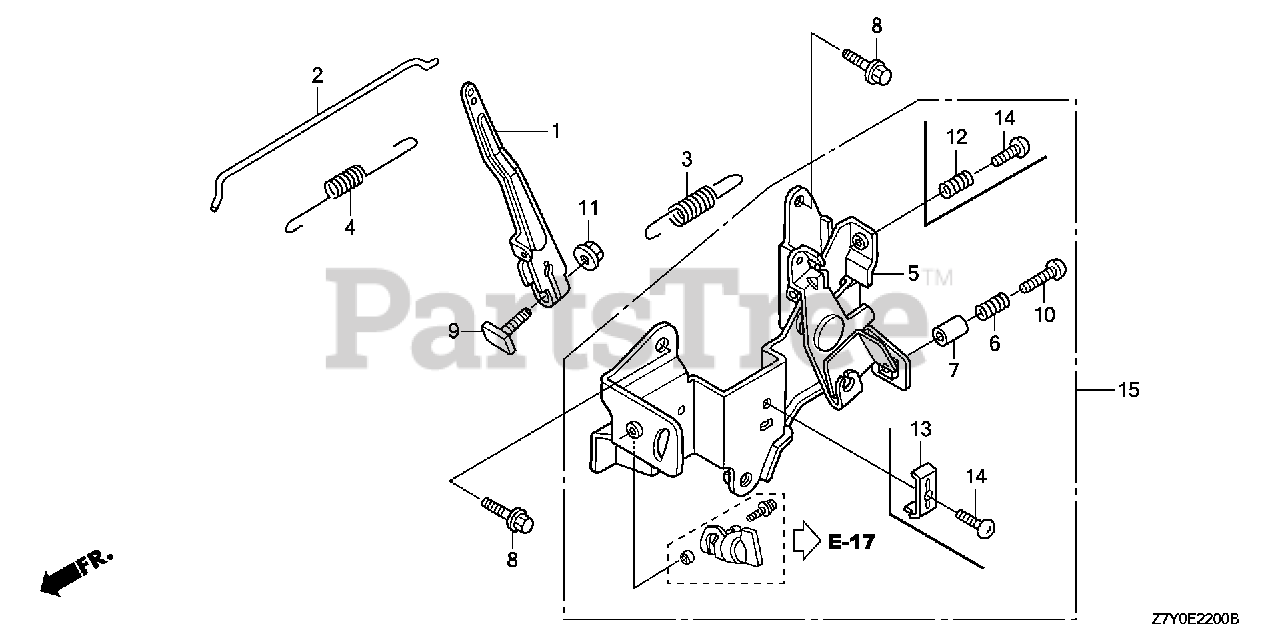

CONTROL Parts Diagram

  • Title

1

Honda 16551-ZN4-000

ARM, GOVERNOR

$8.49

$

Usually ships in 3-6 days

0

2

Honda 16555-ZN4-000

ROD, GOVERNOR

$4.49

$

Usually ships in 3-6 days

0

3

Honda 16561-ZN4-000

SPRING, GOVERNOR

$3.99

$

Usually ships in 3-6 days

0

4

Honda 16562-ZN4-800

SPRING, THROTTLE RETURN
(Superseded to 16562-ZN4-801)

$1.49

$

Usually ships in 3-6 days

0

5

Honda 16580-Z7Y-800

SEE PART DETAILS - PRI; BASE, CONTROL

$111.99

$

Usually ships in 3-6 days

0

6

Honda 16584-883-300

SPRING, CONTROL ADJUSTING

$4.99

$

In Stock, only 1 left!

0

7

Honda 16599-ZG1-M10

COLLAR, STOPPER

$3.99

$

Usually ships in 3-6 days

0

8

Honda 90003-892-000

BOLT, FLANGE (5X12)

$1.99

$

In Stock, only 1 left!

0

9

Honda 90015-ZE5-010

BOLT, GOVERNOR ARM

$3.49

$

In Stock, only 2 left!

0

10

Honda 90016-ZE7-W00

SCREW, RECESSED (5X28)

$2.99

$

Usually ships in 3-6 days

0

11

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 20+

0

15

Honda 16500-Z7Y-800

CONTROL ASSY.

Note: Use from Engine SN 1005402.

$78.99

$

Usually ships in 3-6 days

0
