GXV610 K1 QAF (GJAC) - Honda Engine, Made in Japan (SN: GJAC-2000001 - GJAC-2019999) CAMSHAFT Parts Diagram

Engine, Made in Japan

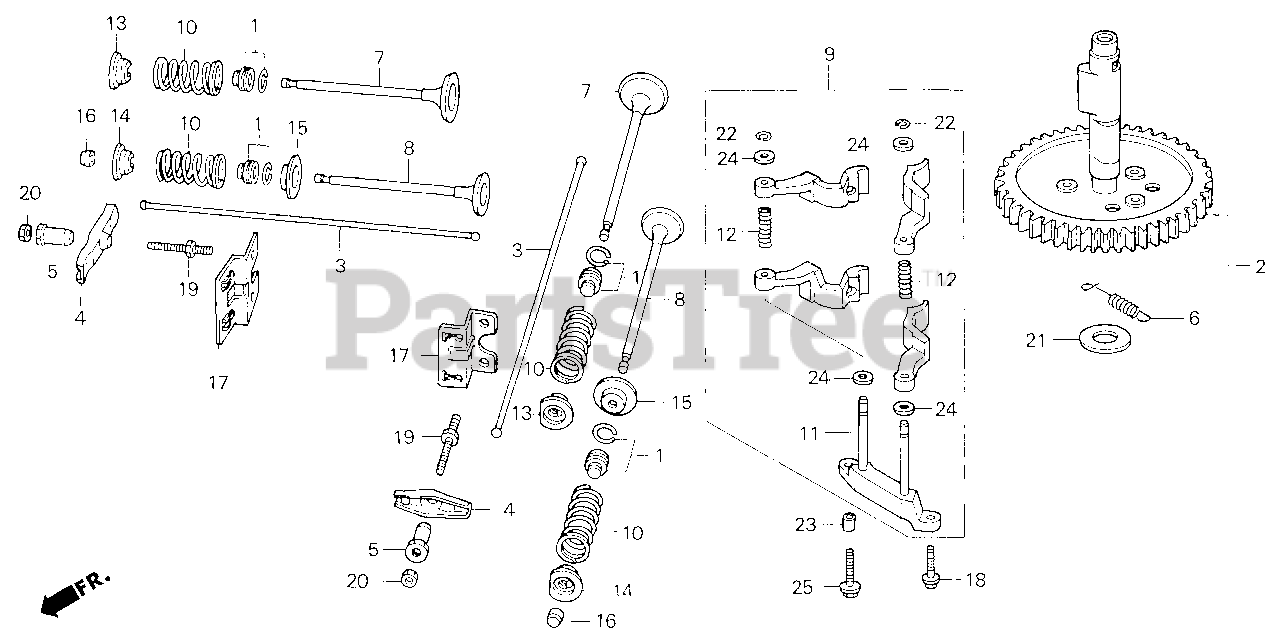

CAMSHAFT Parts Diagram

  • Title

1

Honda 12209-ZE8-003

SEAL, VALVE STEM

Note: (Honda Code 2089571).

$8.49

$

In Stock, Qty 16

0

2

Honda 14100-ZJ1-840

CAMSHAFT ASSY.

Note: (Honda Code 6224042).

$

$

Currently unavailable

2

Honda 14100-ZJ1-842

CAMSHAFT ASSY.

Note: (Honda Code 6637193).

$482.99

$

In Stock, only 1 left!

0

3

Honda 14410-ZJ1-840

ROD, PUSH

Note: (Honda Code 6224067).

$9.99

$

In Stock, only 2 left!

0

4

Honda 14431-ZE2-010

ARM, VALVE ROCKER

Note: (Honda Code 6206254).

$9.49

$

In Stock, Qty 20+

0

5

Honda 14451-ZE1-013

PIVOT, ROCKER ARM
(Superseded to 14451-Z4M-000)

Note: (Honda Code 4300901).

$5.99

$

In Stock, Qty 7

0

6

Honda 14568-ZJ1-840

SPRING, WEIGHT RETURN
(Superseded to 14568-ZJ1-841)

Note: (Honda Code 6224075).

$3.49

$

In Stock, only 1 left!

0

6

Honda 14568-ZJ1-841

SPRING, WEIGHT RETURN

Note: (Honda Code 6656235).

$3.49

$

In Stock, only 1 left!

0

7

Honda 14711-ZE3-000

VALVE, IN.

Note: (Honda Code 2107779).

$22.99

$

Usually ships in 3-6 days

0

8

Honda 14721-ZE3-000

VALVE, EX.

Note: (Honda Code 2107787).

$35.99

$

In Stock, only 1 left!

0

9

Honda 14730-ZJ1-840

LIFTER ASSY., VALVE

Note: (Honda Code 6224117).

$

$

Currently unavailable

10

Honda 14751-ZE2-003

SPRING, VALVE

Note: (Honda Code 2025633).

$5.49

$

In Stock, only 2 left!

0

11

Honda 14760-ZJ1-840

SHAFT, VALVE LIFTER

Note: (Honda Code 6224125).

$48.99

$

Usually ships in 3-6 days

0

12

Honda 14764-ZJ1-840

SPRING, VALVE LIFTER

Note: (Honda Code 6224133).

$3.99

$

Usually ships in 3-6 days

0

13

Honda 14771-ZE2-000

RETAINER, IN. VALVE SPRING
(Superseded to 14771-Z8S-000)

Note: (Honda Code 2025641).

$2.49

$

In Stock, only 4 left!

0

14

Honda 14773-ZE2-000

RETAINER, EX. VALVE SPRING

Note: (Honda Code 2025658).

$2.49

$

In Stock, Qty 5

0

15

Honda 14775-ZE2-010

SEAT, VALVE SPRING

Note: (Honda Code 2157485).

$3.99

$

In Stock, only 4 left!

0

16

Honda 14781-ZE2-000

ROTATOR, VALVE

Note: (Honda Code 2025666).

$5.99

$

In Stock, only 2 left!

0

17

Honda 14791-ZE9-010

GUIDE, PUSH ROD

Note: (Honda Code 6260277).

$4.99

$

Usually ships in 3-6 days

0

18

Honda 90005-896-000

BOLT, FLANGE (5X16)

Note: (Honda Code 1420611).

$2.99

$

Usually ships in 3-6 days

0

19

Honda 90012-ZE0-010

BOLT, PIVOT (8MM)

Note: (Honda Code 1756964).

$8.49

$

In Stock, Qty 6

0

20

Honda 90206-ZE1-000

NUT, PIVOT ADJ.

Note: (Honda Code 1431287).

$4.49

$

In Stock, Qty 9

0

21

Honda 90446-357-000

WASHER, THRUST (17.2MM)

Note: (Honda Code 0322180).

$4.99

$

In Stock, only 1 left!

0

22

Honda 90602-ZE1-000

CLIP, GOVERNOR HOLDER

Note: (Honda Code 2456697).

$1.99

$

In Stock, Qty 11

0

23

Honda 94301-08120

PIN A, DOWEL (8X12)

Note: (Honda Code 0069328).

$2.99

$

Usually ships in 3-6 days

0

24

Honda 94101-06800

WASHER, PLAIN (6MM)

Note: (Honda Code 0345900).

$0.99

$

In Stock, Qty 20+

0

25

Honda 95701-06025-00

BOLT, FLANGE (6X25)

Note: (Honda Code 2105831).

$2.49

$

In Stock, Qty 14

0
