GXV610 K1 QWA (GJAC) - Honda Engine, Made in Japan (SN: GJAC-2000001 - GJAC-2019999) FAN COVER (2) Parts Diagram

Engine, Made in Japan

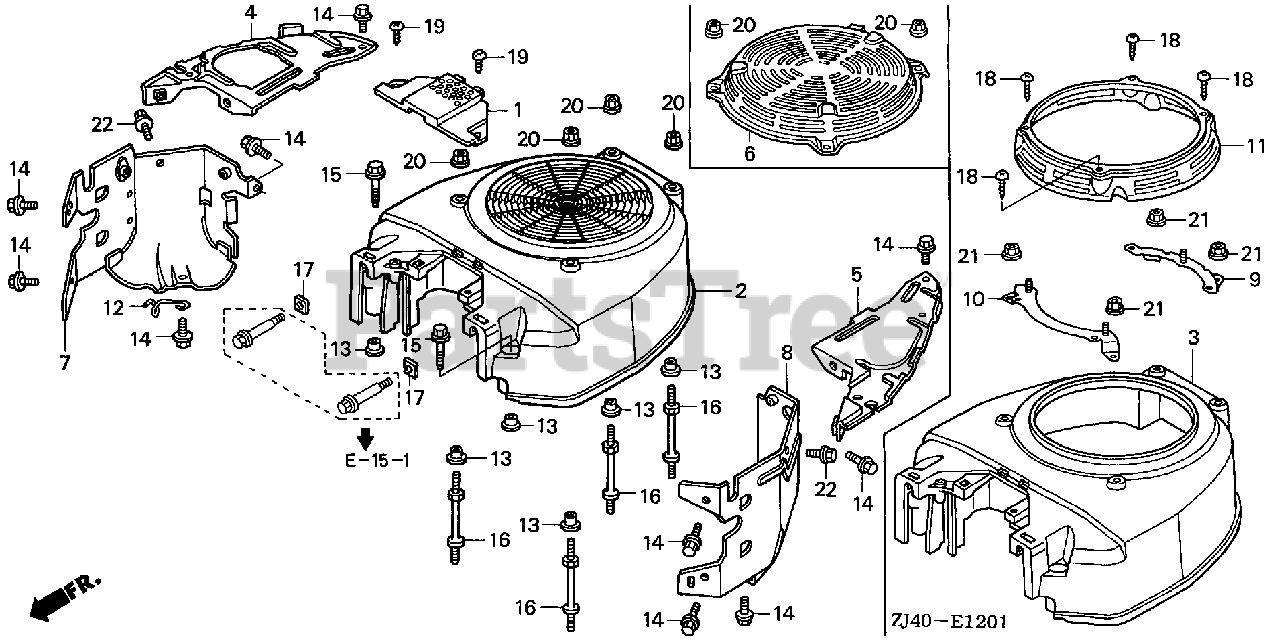

FAN COVER (2) Parts Diagram

  • Title

1

Honda 16715-ZJ1-840

COVER, FUEL PUMP (Honda Code 6224521).

$20.99

$

In Stock, only 1 left!

0

3

Honda 19611-ZJ1-850ZA

COVER, FAN *NH1* (RECOIL STARTER) (BLACK) (Honda Code 6260673).

$127.99

$

Usually ships in 3-6 days

0

3

Honda 19611-ZJ1-850ZB

SEE PART DETAILS - SUP; COVER, FAN *R8* (RECOIL STARTER) (BRIGHT RED) (Honda Code 6260681).

$

$

Currently unavailable

4

Honda 19612-ZJ1-840

PLATE, R. SIDE (Honda Code 6225221).

Note: Use up to Engine SN 2002534.

$

$

Currently unavailable

4

Honda 19612-ZJ1-841

PLATE, R. SIDE (Honda Code 7124480).

Note: Use from Engine SN 2002535.

$21.99

$

Usually ships in 3-6 days

0

5

Honda 19614-ZJ1-840

PLATE, L. SIDE (Honda Code 6225239).
(Superseded to 19614-ZJ1-841)

Note: Use up to Engine SN 2002534.

$21.99

$

Usually ships in 3-6 days

0

5

Honda 19614-ZJ1-841

PLATE, L. SIDE (Honda Code 7124498).

Note: Use from Engine SN 2002535.

$21.99

$

Usually ships in 3-6 days

0

7

Honda 19631-ZJ1-840

SHROUD, R. (Honda Code 6225247).

$

$

Not available

8

Honda 19632-ZJ1-841

SEE PART DETAILS - PRI; SHROUD, L. (Honda Code 7160575).

$41.99

$

Usually ships in 3-6 days

0

9

Honda 28491-ZJ1-840

STAY A, RECOIL STARTER (Honda Code 6260764).

$23.99

$

Usually ships in 3-6 days

0

10

Honda 28492-ZJ1-840

STAY B, RECOIL STARTER (Honda Code 6260772).

$28.99

$

Usually ships in 3-6 days

0

11

Honda 28496-ZJ1-840ZA

COVER, RECOIL STARTER STAY *NH1* (BLACK) (Honda Code 6260780).

$121.99

$

Usually ships in 3-6 days

0

11

Honda 28496-ZJ1-840ZB

SEE PART DETAILS - SUP; COVER, RECOIL STARTER STAY *R8* (BRIGHT RED) (Honda Code 6260798).

$

$

Currently unavailable

11

Honda 28496-ZJ1-840ZC

SEE PART DETAILS - PRI; COVER, RECOIL STARTER STAY *R280* (POWER RED) (Honda Code 7389570).

$95.99

$

Usually ships in 3-6 days

0

12

Honda 30588-898-000

CLAMP, IGNITION TUBE (Honda Code 1106061).

$5.99

$

Usually ships in 3-6 days

0

13

Honda 33713-GC2-000

COLLAR B, TAILLIGHT (Honda Code 1447911).

$4.99

$

In Stock, Qty 17

0

14

Honda 90013-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845).

$1.99

$

In Stock, Qty 11

0

15

Honda 90018-ZE1-000

BOLT, FLANGE (6X23) (Honda Code 1725050).

$2.49

$

In Stock, only 4 left!

0

16

Honda 90042-ZJ1-840

BOLT, STUD (6X71) (Honda Code 6227003).

$9.99

$

Usually ships in 3-6 days

0

17

Honda 90313-ZJ1-840

NUT, SQUARE (5MM) (Honda Code 6227045).

$3.49

$

In Stock, only 1 left!

0

18

Honda 93903-35380

SCREW, TAPPING (5X16) (Honda Code 1063379).

$1.49

$

Usually ships in 3-6 days

0

19

Honda 93913-25580

SCREW, TAPPING (5X20) (Honda Code 5802582).

$1.49

$

In Stock, Qty 8

0

21

Honda 94050-06070

NUT, FLANGE (6MM) (Honda Code 2322832).

$1.99

$

Usually ships in 3-6 days

0

22

Honda 95701-06008-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X8) (Honda Code 2581353).

$3.49

$

In Stock, only 4 left!

0
