GXV630 R QYF (GJANK) - Honda Engine, Made in Japan (SN: GJANK-1000001 - GJANK-9999999) CONTROL Parts Diagram

Engine, Made in Japan

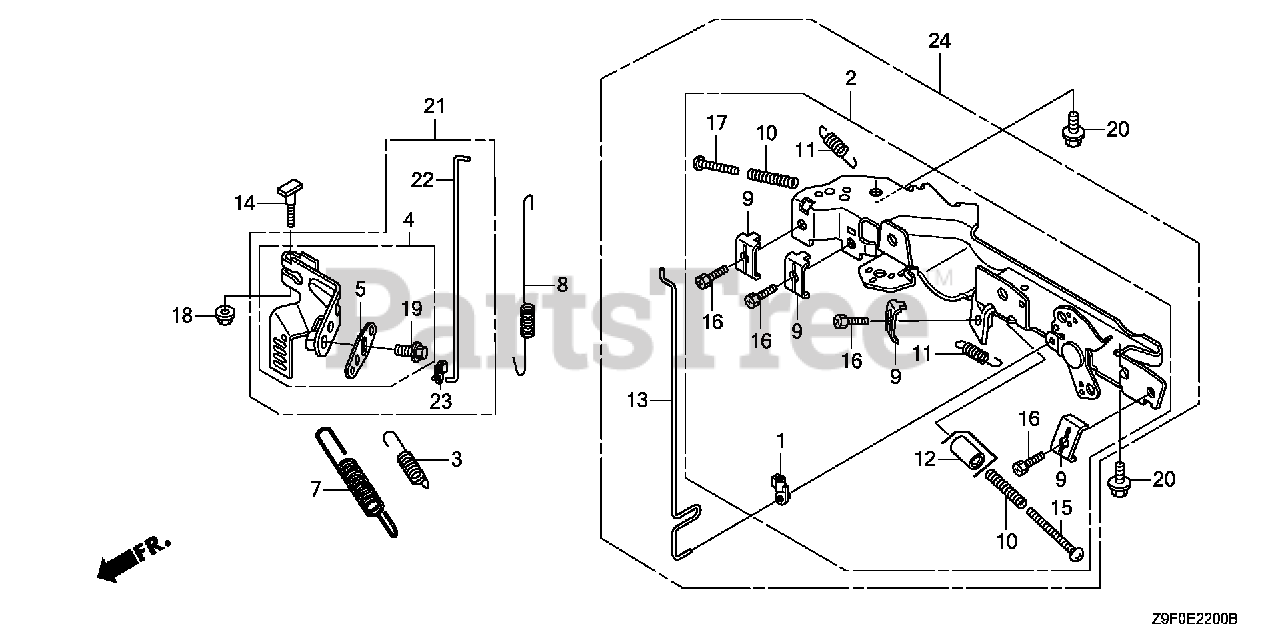

CONTROL Parts Diagram

  • Title

1

Honda 16263-Z0G-010

SEE PART DETAILS - PRI; JOINT, ROD

$3.49

$

In Stock, only 4 left!

0

2

Honda 16500-Z6L-000

SEE PART DETAILS - SUP; CONTROL ASSY.
(Superseded to 16500-Z6L-010)

Note: Use up to Engine SN 1000607.

$

$

Not available

2

Honda 16500-Z6L-010

SEE PART DETAILS - PRI; CONTROL ASSY.

Note: Use up to Engine SN 1002384.

$

$

Not available

2

Honda 16500-Z6L-020

CONTROL ASSY.

Note: Use from Engine SN 1002385.

$89.99

$

Usually ships in 3-6 days

0

3

Honda 16534-Z6L-000

SPRING, STARTER

$2.49

$

Usually ships in 3-6 days

0

4

Honda 16550-Z6L-000

SEE PART DETAILS - SUP; ARM, GOVERNOR
(Superseded to 16550-Z6L-010)

$

$

Not available

4

Honda 16550-Z6L-020

ARM, GOVERNOR

Note: Use from Engine SN 1002705.

$24.99

$

Usually ships in 3-6 days

0

5

Honda 16553-Z6L-010

SEE PART DETAILS - PRI; ARM, SUB

$3.49

$

Usually ships in 3-6 days

0

5

Honda 16553-Z6L-010

SEE PART DETAILS - PRI; ARM, SUB

Note: Use from Engine SN 1002705.

$3.49

$

Usually ships in 3-6 days

0

6

Honda 16555-Z6M-000

ROD, GOVERNOR

$3.49

$

Usually ships in 3-6 days

0

7

Honda 16561-Z6L-000

SPRING, GOVERNOR

$3.99

$

In Stock, only 2 left!

0

8

Honda 16562-Z6M-000

SPRING, THROTTLE RETURN

$7.49

$

Usually ships in 3-6 days

0

9

Honda 16576-891-000

HOLDER, CABLE

$4.99

$

In Stock, only 2 left!

0

10

Honda 16584-883-300

SPRING, CONTROL ADJUSTING

$4.99

$

In Stock, only 1 left!

0

11

Honda 16592-ZJ1-000

SPRING, CABLE RETURN

$2.49

$

In Stock, Qty 5

0

13

Honda 16611-Z6M-000

ROD, CHOKE CONTROL

Note: Use up to Engine SN 1002151.

$5.49

$

Usually ships in 3-6 days

0

13

Honda 16611-Z6M-010

ROD, CHOKE CONTROL

Note: Use from Engine SN 1002152.

$5.99

$

Usually ships in 3-6 days

0

14

Honda 90015-ZE3-790

BOLT, GOVERNOR ARM

$2.99

$

Usually ships in 3-6 days

0

15

Honda 93500-05045-0A

SCREW, PAN (5X45)

$1.49

$

Usually ships in 3-6 days

0

16

Honda 92301-05016-0A

BOLT, RECESSED (5X16)

$1.49

$

Usually ships in 3-6 days

0

17

Honda 93500-05030-0A

SCREW, PAN (5X30)

$1.49

$

Usually ships in 3-6 days

0

18

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 20+

0

19

Honda 95701-06010-00

BOLT, FLANGE (6X10)

$1.49

$

In Stock, Qty 20+

0

20

Honda 95701-06014-00

BOLT, FLANGE (6X14)

$1.49

$

In Stock, Qty 6

0

21

Honda 04102-Z6M-000

ARM KIT, GOVERNOR

Note: (Optional).

$23.99

$

In Stock, only 1 left!

0

22

Honda 16555-Z6M-010

ROD, GOVERNOR

Note: Use from Engine SN 1002705.

$3.99

$

Usually ships in 3-6 days

0

23

Honda 17957-Z6L-003

BUSH, LINKAGE

Note: Use from Engine SN 1002705.

$1.99

$

In Stock, Qty 5

0
